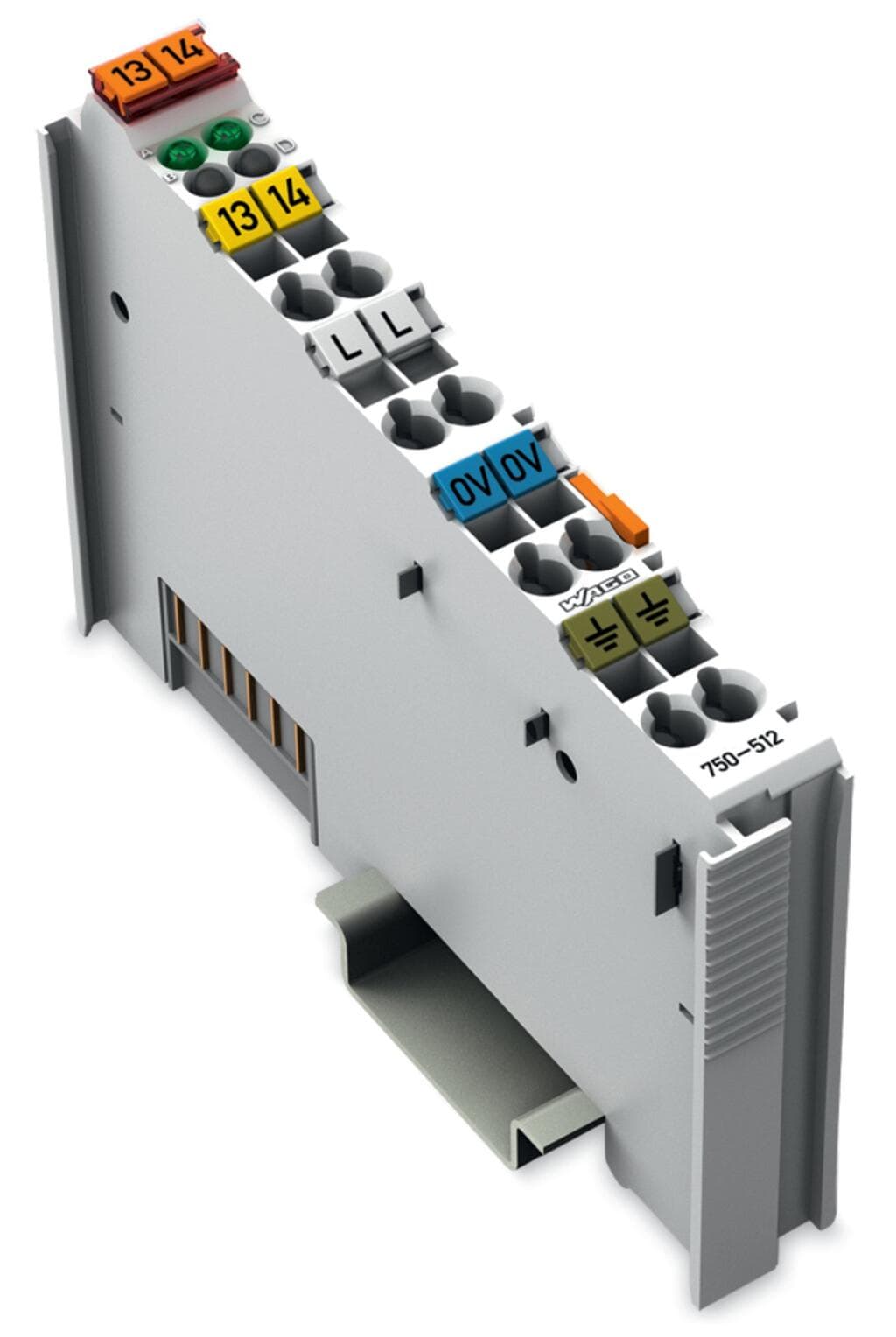

Product Model
750-512
Selling Points
- 1Reliable Digital Output: Transmits control signals from automation devices to connected actuators.
- 2High Isolation Voltage: 1500 VAC system/field isolation for safe operation.
- 3Compact Design: Dimensions: 100 mm H x 12 mm W x 69.8 mm D, ideal for DIN-35 rail mounting.
- 4Versatile Connectivity: Spring CAGE CLAMP connections for secure wiring and easy installation.
- 5Robust Construction: Made from polycarbonate and polyamide 6.6, ensuring durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital outputs | 2 | Number of Channels | 2 |
Signal type | Digital | Actuator connection | 2 x (2-wire, 3-wire) |
Output circuit design | 2 make contacts | Output characteristic | non-floating |
Pull-in time (max.) | 10ms | Drop-out time (max.) | 10ms |
Bounce time (typ.) | 1.2ms | Switching frequency (max.) | 0.5 Hz; Nominal load |
Switching voltage (max.) | 250 VAC, 30 VDC | Switching current (max.) | 2A |
Switching voltage (min.) | 5V | Switching current (min.) | 10mA |
Switching power | 500 VA / 60 W (purely resistive load); cos ? max. = 0.4; L/R max. = 7 ms | Electrical switching operations (min.) (at max. resistive load) | 300 x 103 switching operations |
Mechanical switching operations (min.) (at max. resistive load) | 20 x 10? switching operations | Output data width (internal) max. | 2bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 100mA |
Supply voltage (field) | 250 VAC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 1500 V (system/field) |
Indicators | LED (A, C) green: Status relay 1, relay 2 | Number of incoming power jumper contacts | 3 |
Number of outgoing power jumper contacts | 3 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69.8 mm / 2.748 inches |
Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches | Mounting type | DIN-35 rail |
Pluggable connector | fixed | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.366MJ |
Weight | 51.5g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | bb9eecaa-c651-4086-b359-971276849fdc | SCIP notification number (Belgium) | 87fd13ca-72cc-49e2-a301-8231c8cbb093 |
SCIP notification number (Bulgaria) | 8648e2f7-5a6e-47bb-a5b2-9c85a2f17dee | SCIP notification number (Czech Republic) | 5cdc449a-b4b8-4e07-b740-f44c91180e1e |
SCIP notification number (Denmark) | 37ab4fde-1323-4e58-b7e1-bae52f1d39ae | SCIP notification number (Finland) | 4da75951-e004-4a11-8fec-6fa85010a42b |
SCIP notification number (France) | 4927e9db-e489-477c-9039-b88be02793b4 | SCIP notification number (Germany) | 6e9038e2-4450-4928-bdb0-f43d9fad74e1 |
SCIP notification number (Hungary) | 35e83ea5-fd8f-4b9e-803e-be980d5839ef | SCIP notification number (Italy) | a6041f14-a3f0-4f5d-ac52-0b8a55152886 |
SCIP notification number (Netherlands) | 5b60ea45-520b-4b1c-b0d9-e43d62b8c8a7 | SCIP notification number (Poland) | b130e665-ced8-4c4b-a484-eca3c180cc58 |
SCIP notification number (Romania) | cfccd4d0-c90e-46bf-847f-5a5014e31ef7 | SCIP notification number (Sweden) | 2086d98e-0cba-4844-9c17-97fde6e413ec |
Specifications may be subject to change without notice
