Product Model

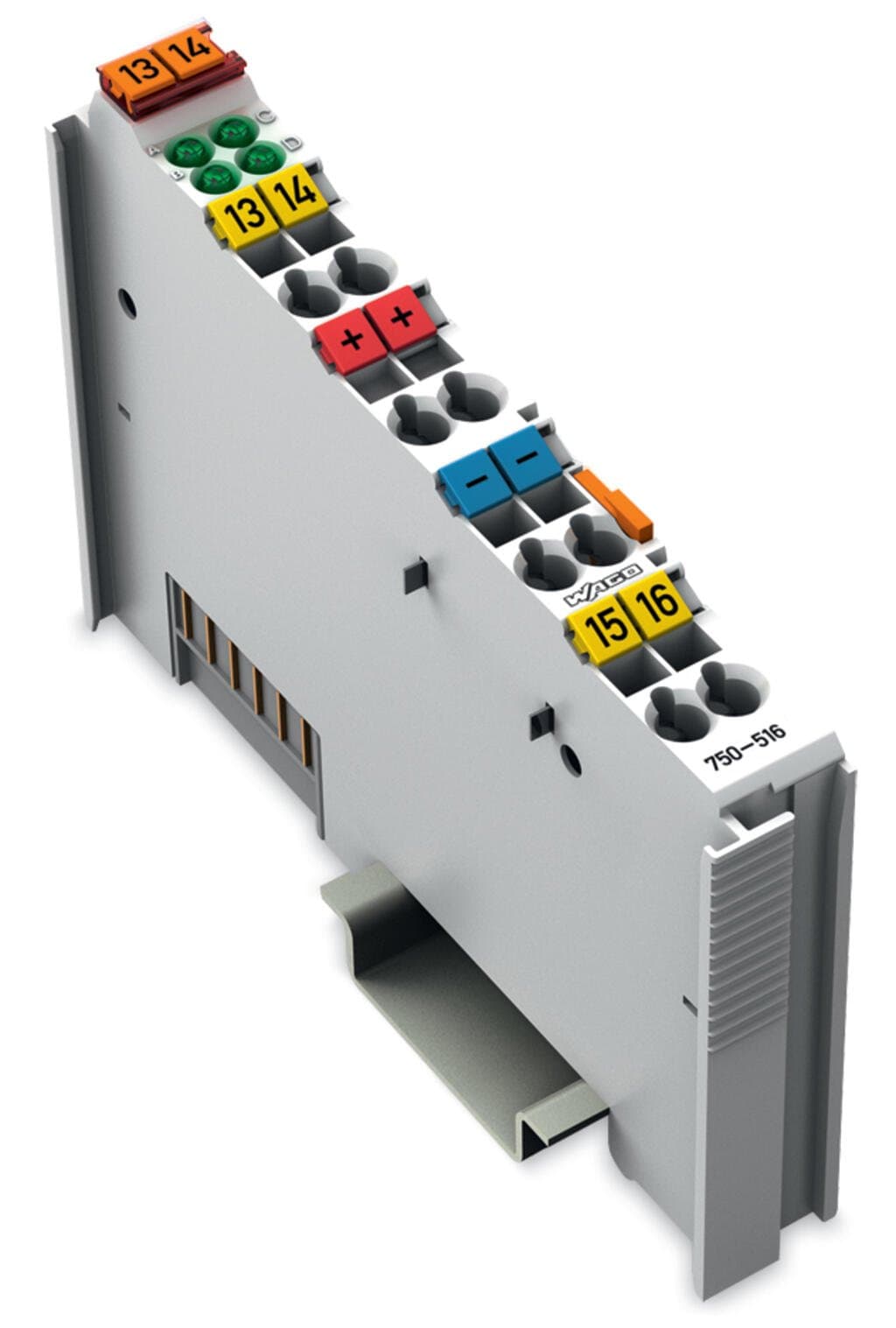

750-516
Selling Points
- 14-Channel Digital Output: Control multiple signals with this versatile module.
- 224VDC Operation: Compatible with standard DC voltage systems.
- 3Low-Side Switching: Efficient and reliable switching technology.
- 4Compact Design: Measures 3.937 in H x 0.472 in W x 2.748 in D for easy integration.
- 5High-Temperature Rating: Operates between 0 to 55 degrees Fahrenheit.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital outputs | 4 | Number of Channels | 4 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Actuator connection | 2 x (2-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other actuators. | Output characteristic | low-side switching |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Load type | Resistive, inductive, lamp load | Switching frequency (max.) | 5 kHz |
Inductive load switch-off energy dissipation (max.) | 0.55J | Output data width (internal) max. | 4bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 7mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Current consumption, field supply (module with no external load) | 30mA |
Isolation | 500 V system/field | Indicators | LED (A-D) green: Status DO 1 … DO 4 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(outputs) |
Connection type 1 | Output | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69.8 mm / 2.748 inches | Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.037MJ | Weight | 48g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 8537109170 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | ed0429b8-7157-49c3-a01c-a30449143947 |
SCIP notification number (Belgium) | bd786bf6-f451-45e5-9a83-bce76aed4387 | SCIP notification number (Bulgaria) | a8d50367-496d-4425-9106-74ebe27769dc |
SCIP notification number (Czech Republic) | 35bbcb04-893d-4ee2-8fa7-af43ccdbb13d | SCIP notification number (Denmark) | 711abe30-7c57-486c-ab31-3a28f2bd6ff1 |
SCIP notification number (Finland) | 11c76409-5d72-4d08-9613-607ff16eb97b | SCIP notification number (France) | d3ca708c-d2be-4703-94af-9f63e7128b30 |
SCIP notification number (Germany) | 9cc8d9b3-7a8f-4340-83a4-47ae2b67156e | SCIP notification number (Hungary) | 41f51f66-5ecf-4c21-ac2e-b9487327ef46 |
SCIP notification number (Italy) | a6eba314-5743-40a3-84e5-38728891a96d | SCIP notification number (Netherlands) | a5f23808-b45b-4ee8-bbcc-3fcb2f992663 |
SCIP notification number (Poland) | f7e40eec-3e51-4bc0-96f7-a01f73f2bc25 | SCIP notification number (Romania) | 0eb8b7a5-66e0-4312-90b1-e404213947f0 |
SCIP notification number (Sweden) | 8339d444-5fa3-40c9-9a40-5e2af3ab17ff |
Specifications may be subject to change without notice
