Product Model

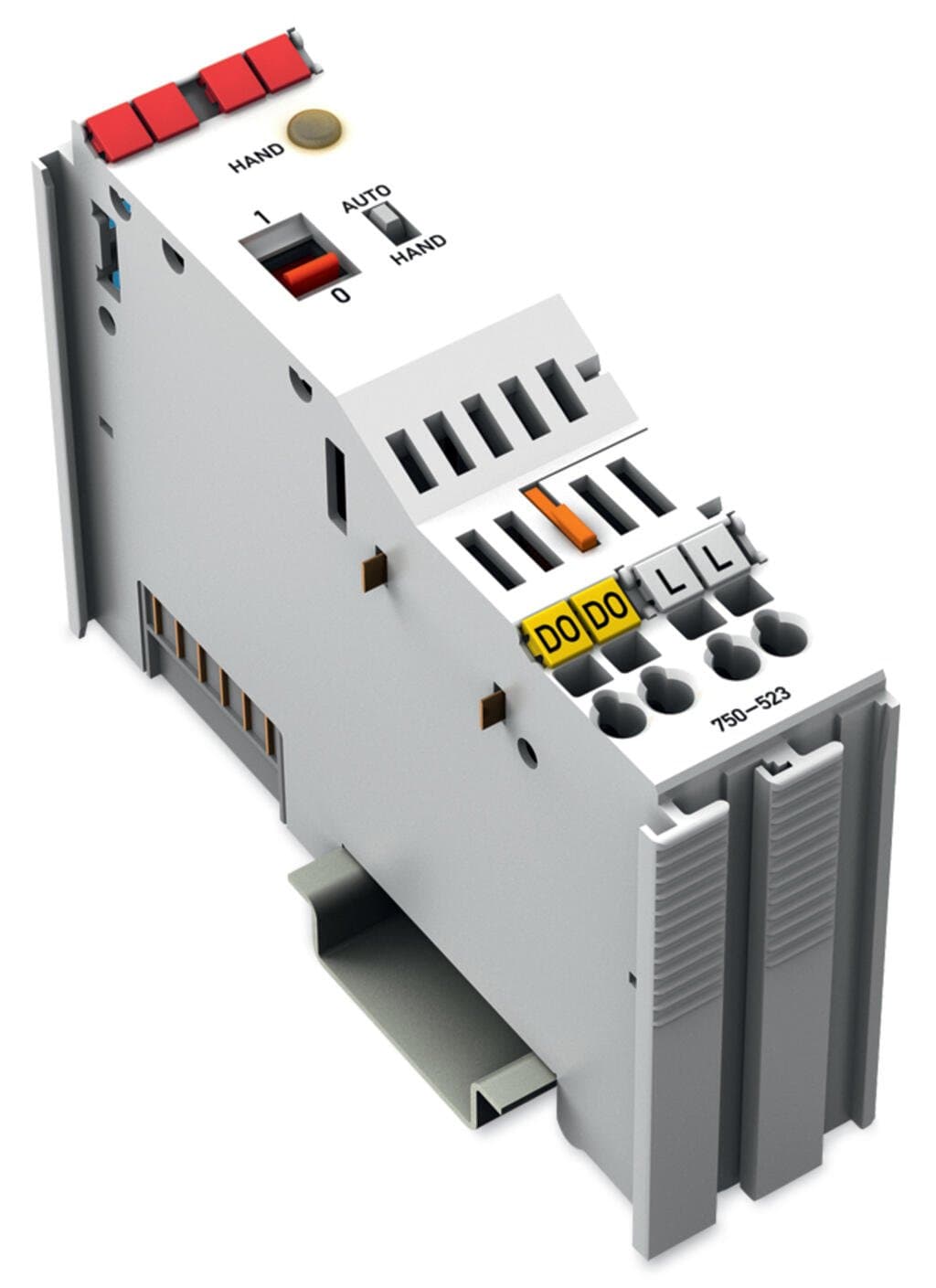

750-523
Selling Points
- 1High-Reliability Relay Module: Ensures reliable switching with 1 make contact and potential-free output.
- 2DIN Rail Mounting: Conveniently mounts on DIN-35 rail for easy installation in industrial settings.
- 3Wide Operating Temperature: Operates between 0°C and 55°C, suitable for various environmental conditions.
- 4High Switching Power: Handles up to 5 kVA, making it suitable for demanding applications.
- 5Compliance with International Standards: Meets IEC and DIN EN 61810 part 1 /VDE 0435 part 201 standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital outputs | 1 | Number of Channels | 1 |
Signal type | Digital | Actuator connection | 1 x (1-wire) |
Output circuit design | 1 make contact | Output characteristic | potential-free |
Switching voltage (max.) | 440 VAC | Switching current (max.) | 16A |
Switching power | max. 5 kVA | Mechanical life | 106 |
Input data width (internal) max. | 2bits | Output data width (internal) max. | 2bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 5mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Current consumption, field supply (module with no external load) | 80mA |
Isolation | 1500 V (system/field) | Indicators | LED yellow: Manual mode |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 4 x CAGE CLAMP?(outputs) |
Connection type 1 | Output | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 24 mm / 0.945 inches | Height | 100 mm / 3.937 inches |
Depth | 67.8 mm / 2.669 inches | Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 2.516MJ | Weight | 101.2g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 8537109170 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 7896f890-eea5-4c2f-be59-494360e0c875 |
SCIP notification number (Belgium) | 310ed1f6-1c90-4a40-b3a3-528ee237032b | SCIP notification number (Bulgaria) | 25fe0bdb-607c-4238-8c3f-c1e020dfd678 |
SCIP notification number (Czech Republic) | 0d22a6b8-d446-4ce8-a970-148852ada053 | SCIP notification number (Denmark) | 29a3259a-d00b-4b3d-a2be-23e115912ea2 |
SCIP notification number (Finland) | ff6450bd-1acb-49b8-8483-3304819631d8 | SCIP notification number (France) | a4cd2bc1-7786-40aa-89bc-c8ceca5dd089 |
SCIP notification number (Germany) | 98eda6a7-4c43-40a8-9c7b-c06cae038357 | SCIP notification number (Hungary) | 8e2f7d78-defe-4fb0-ae11-b8431979c52a |
SCIP notification number (Italy) | 8920521c-c365-4137-9efb-19990f05b5cc | SCIP notification number (Netherlands) | 66e29eaa-0881-4d7b-b642-cf03b097d4ee |
SCIP notification number (Poland) | ea3fb37b-afca-4e9d-8d83-f4dd28f9c5ab | SCIP notification number (Romania) | 2c87f391-0175-4c9e-88cc-b9dc97021b8e |
SCIP notification number (Sweden) | 56e1323f-ff8f-487f-83a7-37ab0e17dbc8 |
