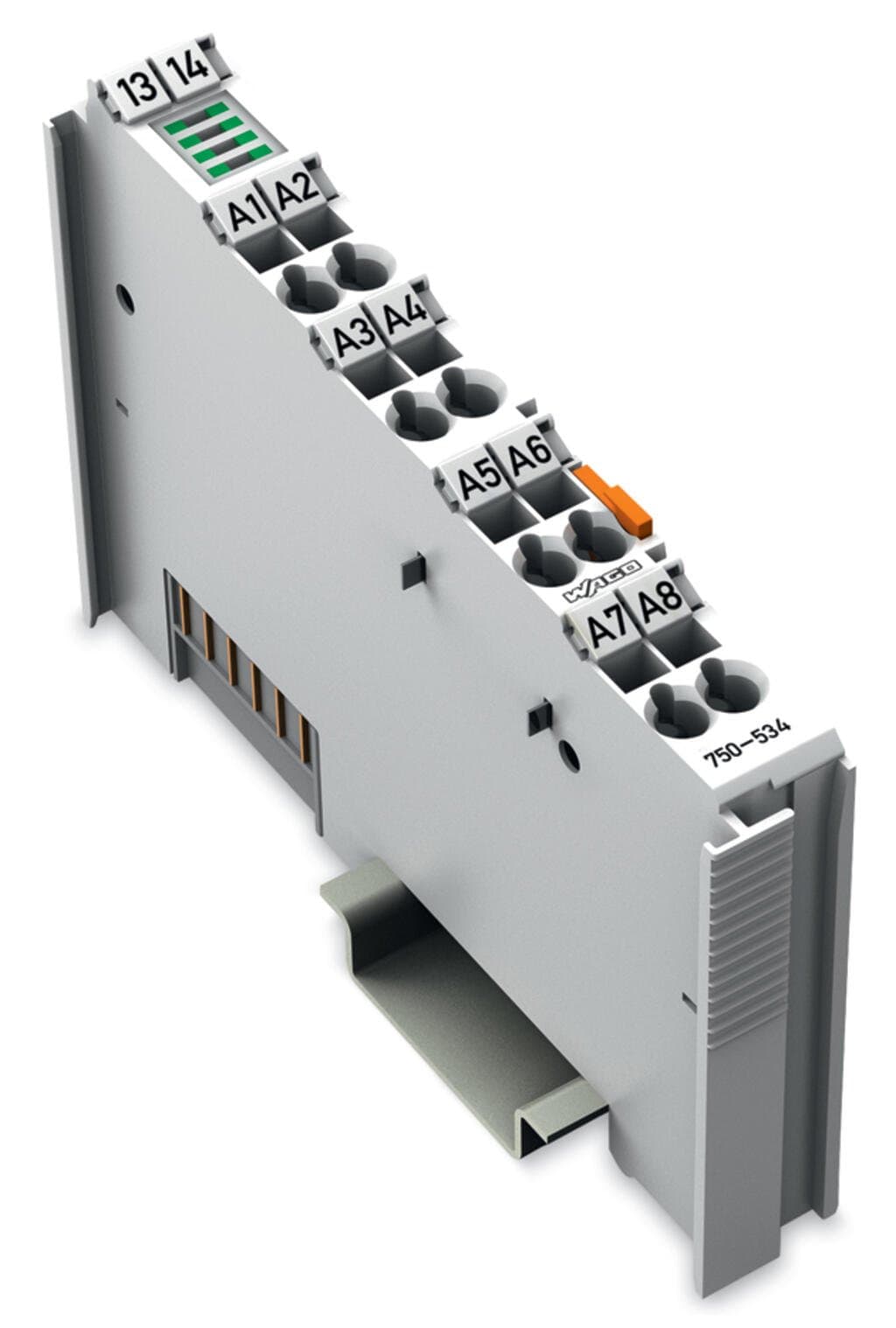

Product Model
750-534
Selling Points
- 1The WAGO 750-534 features high-side switching for reliable digital output.
- 2Equipped with 8 digital outputs, perfect for multi-channel applications.
- 3Operates at 12VDC with a current of 1A per channel.
- 4Designed for easy mounting on DIN-35 rail systems.
- 5Ensures protection against solid particles and water spray.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital outputs | 8 | Number of Channels | 8 |
Signal type | Digital | Signal type (voltage) | 5 VDC; 12 VDC |
Actuator connection | 8 x (1-wire) | Output characteristic | high-side switching |
Output current per channel | 1A | Output current | short-circuit-protected |
Load type | Resistive, inductive | Switching frequency (max.) | 2 kHz |
Inductive load switch-off energy dissipation (max.) | 0.26J | Output data width (internal) max. | 8bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 20mA |
Supply voltage (field) | 14 VDC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Current consumption, field supply (module with no external load) | 25mA |
Isolation | 500 V system/field | Indicators | LED (A-D) green: Status DO 1, DO 3, DO 5, DO 7; LED (E-H) green: Status DO 2, DO 4, DO 6, DO 8 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(outputs) |
Connection type 1 | Output | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 67.8 mm / 2.669 inches | Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.25MJ |
Weight | 50.1g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61131-2, marine applications |
EMC emission of interference | per EN 61131-2, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8537109170 |
RoHS Compliance Status | Compliant,No Exemption |
