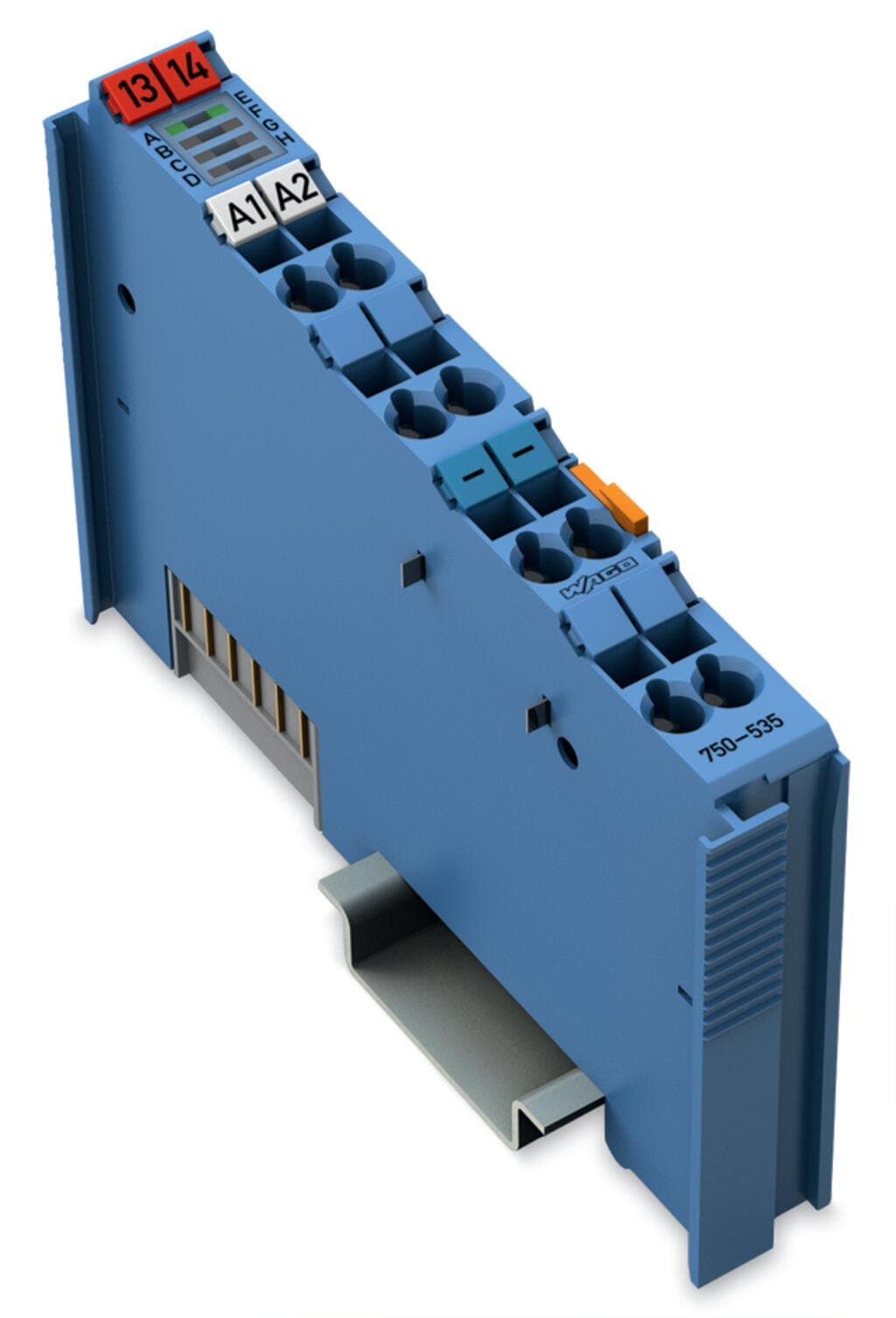

Product Model
750-535
Selling Points
- 1Designed for hazardous environments, ensuring safe operation in explosive atmospheres.
- 2Provides two high-side switching digital outputs for reliable signal transmission.
- 3Easy installation on DIN rail, simplifying integration into industrial control systems.
- 4Offers robust protection against solid particles and water, ensuring reliable operation in various conditions.
- 5Operates between 0°C and +55°C, suitable for a variety of industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The digital output module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals! | Number of digital outputs | 2 |
Number of Channels | 2 | Signal type | Digital |
Signal type (voltage) | 24?VDC | Actuator connection | 2 x (2-wire) |
Output characteristic | high-side switching | Switching frequency (max.) | 1?kHz |
Load type | Resistive, inductive, lamp load | Internal resistance R<sub>i</sub> | 285Ω |
Power consumption P<sub>max.</sub> | 2.1 W (at 40 mA output current) | Output data width (internal) max. | 2bits |
Intrinsically safe Ex i | yes | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 7mA | Supply voltage (field) | 24 VDC; (Ex i power supply: Uo= max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
Current consumption, field supply (module with no external load) | 8.5mA | Power loss P<sub>l</sub> | 1.1 W (at 40 mA output current) |
Isolation | 300?VAC system/supply | Indicators | LED (A, E) green: Status DO 1, DO 2 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 1A | Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I |
Ex standard | EN IEC 60079-0, -7, -11 | Safety-relevant data (circuit) | Uo= 27.3 V; Io= 106 mA; Po= 723 mW; Linear characteristic curve |
Reactances?Ex ia IIC | Lo= 3 mH; Co= 88 nF | Reactances Ex ia IIB | Lo= 12 mH; Co= 680 nF |
Reactances Ex ia IIA | Lo= 18 mH; Co= 2.2 μF | Reactances Ex ia I | Lo= 20 mH; Co= 3.6 μF |
Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) | Connection technology: inputs / outputs | 4 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | blue |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.034MJ |
Weight | 50.6g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454725563 | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 3e8a7c97-7b4c-474f-8496-a74b87b60f3a | SCIP notification number (Belgium) | c678f146-be73-484d-b0de-61357b04328e |
SCIP notification number (Bulgaria) | d76645dc-92f6-42bf-b85b-a6283a5e8cf9 | SCIP notification number (Czech Republic) | 9115435c-3460-47a9-8ceb-24f4edf25ec4 |
SCIP notification number (Denmark) | 0a6e1a82-33d4-4c0e-a321-1e09a38cffc6 | SCIP notification number (Finland) | e55ceb70-edb6-41e8-b9f6-7c5c0cc1a8a8 |
SCIP notification number (France) | 196b02a7-97b4-46ba-b4ef-72e1e9851dc1 | SCIP notification number (Germany) | 0d000e2e-b07c-48cd-a924-0b87e6f27ed3 |
SCIP notification number (Hungary) | ec63c6e2-00bf-453b-8860-e9ea2efc8b98 | SCIP notification number (Italy) | e2235fe7-3bf1-4430-98f5-9d59c75f8261 |
SCIP notification number (Netherlands) | 63345460-c84a-4e9c-8209-e8fbab45e814 | SCIP notification number (Poland) | eb32fd0f-3adb-470f-83b8-915ff70fca7c |
SCIP notification number (Romania) | 7c292429-f237-4f30-8bdd-96319a6914b5 | SCIP notification number (Sweden) | b2dae171-c90d-4037-8b49-57d02324377b |
Order text | 2-Channel Digital Output; 24 VDC | ECCN | NO US CLASSIFICATION |
Specifications may be subject to change without notice
