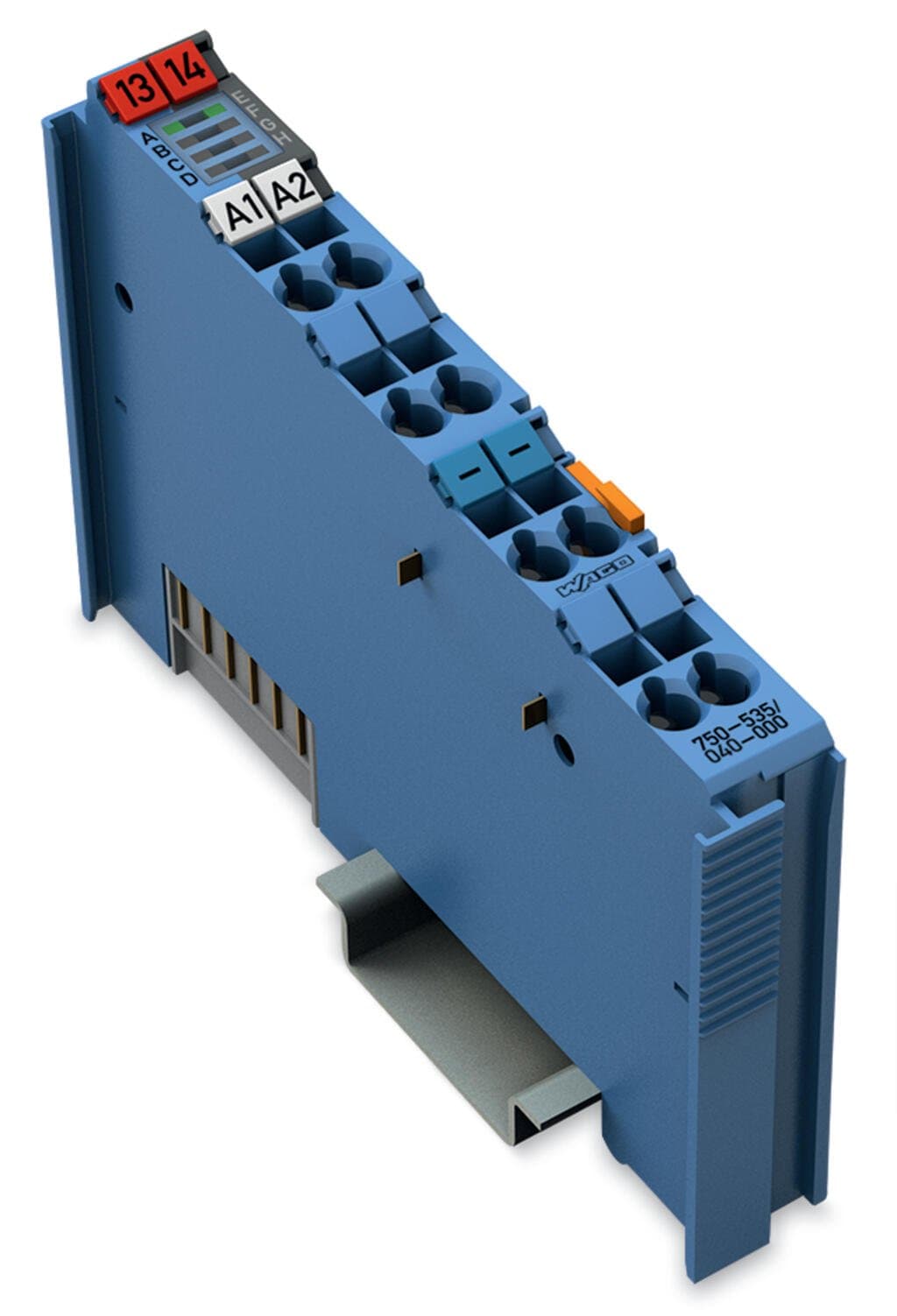

Product Model
750-535/040-000
Selling Points
- 1Ensures safe operation in potentially explosive environments.
- 2Compatible with standard DC voltage systems.
- 3Provides precise control over two digital signals.
- 4Designed for high-reliability applications with a robust build.
- 5Mounts on DIN-35 rail with a 12mm width for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The digital output module must only be operated via 24 VDC Ex i XTR power supply (750-606/040-000)!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 XTR manuals! | Number of digital outputs | 2 |
Number of Channels | 2 | Signal type | Digital |
Signal type (voltage) | 24?VDC | Actuator connection | 2 x (2-wire) |
Output characteristic | high-side switching | Switching frequency (max.) | 1?kHz |
Load type | Resistive, inductive, lamp load | Internal resistance R<sub>i</sub> | 285Ω |
Power consumption P<sub>max.</sub> | 2.1 W (at 40 mA output current) | Output data width (internal) max. | 2bits |
Intrinsically safe Ex i | yes | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 7mA | Supply voltage (field) | 24 VDC; (Ex i XTR power supply: Uo= max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
Current consumption, field supply (module with no external load) | 8.5mA | Power loss P<sub>l</sub> | 1.1 W (at 40 mA output current) |
Isolation | 300?VAC system/supply | Dielectric strength | 510 VAC/775 VDC; per EN 60870-2-1 |
Rated surge voltage | 1 kV; Rated surge voltage between intrinsically safe and non-intrinsically safe circuits: 1.5 kV (EN 60079-11) | Indicators | LED (A, E) green: Status DO 1, DO 2 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 1A | Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I |
Ex standard | EN/IEC 60079-0, -7, -11 | Safety-relevant data (circuit) | Uo= 26.8 V; Io= 99.91 mA; Po= 669.43 mW; Linear characteristic curve |
Reactances?Ex ia IIC | Lo= 1.1 mH; Co= 0.092 μF | Reactances Ex ia IIB | Lo= 12 mH; Co= 0.72 μF |
Reactances Ex ia IIA | Lo= 21 mH; Co= 2.37 μF | Reactances Ex ia I | Lo= 30 mH; Co= 3.85 μF |
Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) | Connection technology: inputs / outputs | 4 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | blue |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.974MJ |
Weight | 47.5g | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3 | Shock resistance | per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2, EN 61131-2, marine applications, EN 60255-26, EN 60870-2-1, EN 61850-3, IEC 61000-6-5, IEEE 1613, VDEW: 1994 | EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143649537 | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 0b2ceb78-ac81-4988-8b7a-377dc156a965 | SCIP notification number (Belgium) | 1635edb6-49e0-4123-9d28-88b169029d69 |
SCIP notification number (Bulgaria) | ec71e56a-09f1-43b3-b4df-6147579683ee | SCIP notification number (Czech Republic) | 87752587-b81c-4481-adee-b573d8158335 |
SCIP notification number (Denmark) | a5d00dfb-4d13-44d6-b0e7-6baa160ef3b7 | SCIP notification number (Finland) | 9d4f5f8b-2366-4d0d-84a4-6c980164823f |
SCIP notification number (France) | 62124c86-10f3-426e-a127-9202e4418043 | SCIP notification number (Germany) | b0e931f6-15c4-4328-a13f-7dbffa6958d3 |
SCIP notification number (Hungary) | 8958d882-e061-4dbf-afd5-0e394ba65148 | SCIP notification number (Italy) | 1432c57a-699b-484d-92ec-b05760073d33 |
SCIP notification number (Netherlands) | d64dd8ec-bf74-4dcc-aa6e-829f429567c1 | SCIP notification number (Poland) | b8258447-9e0b-45a0-a4c8-bf7e7f9b0f5f |
SCIP notification number (Romania) | b2241bbc-0406-48c7-839b-290bcb932ee0 | SCIP notification number (Sweden) | 36f6720f-0810-4ac9-8089-eeb446d85f48 |
Order text | 2-Channel Digital Output; 24 VDC; Intrinsically safe | ECCN | NO US CLASSIFICATION |
Specifications may be subject to change without notice
