Product Model

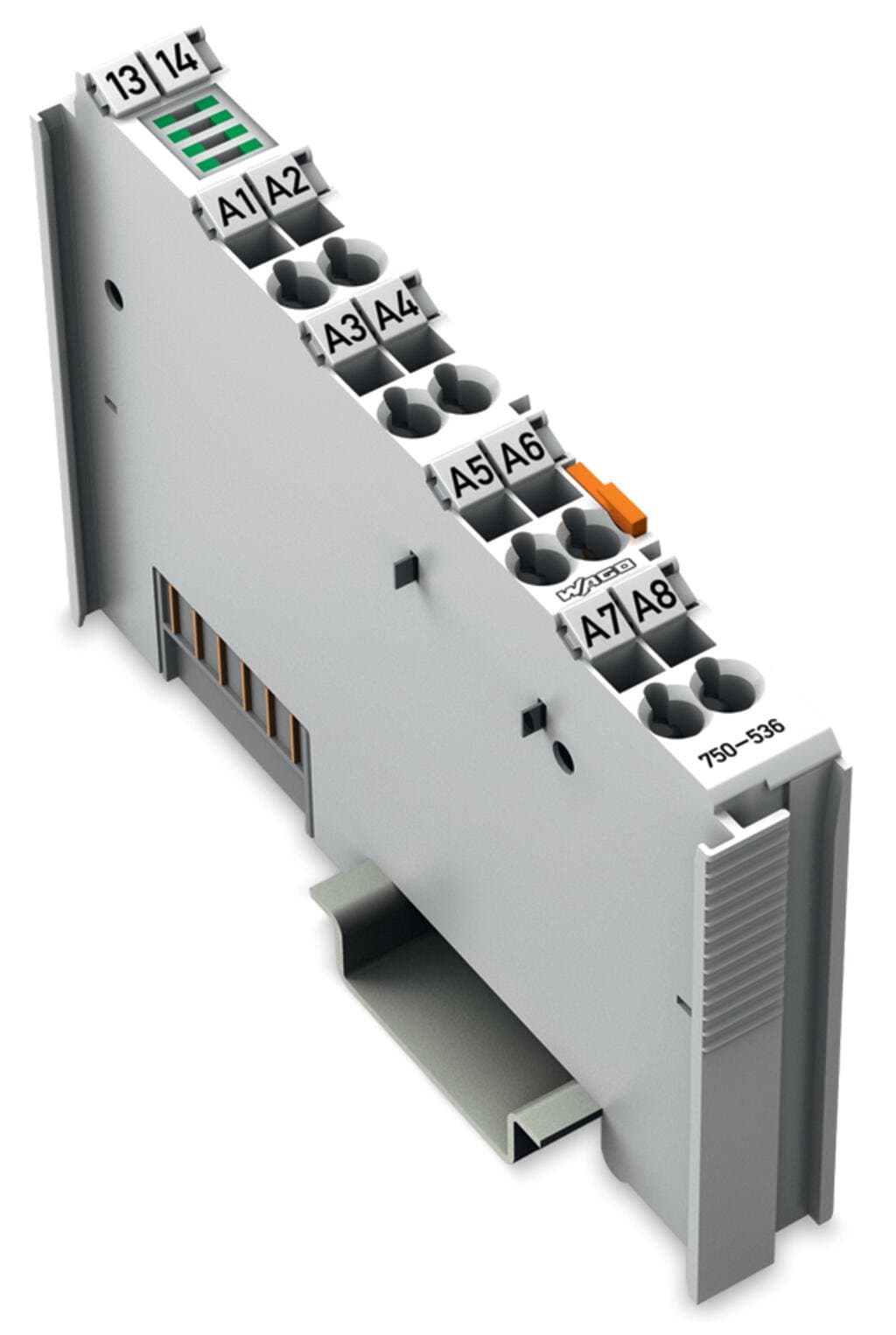

750-536
Selling Points
- 1Modular Design: Easily integrate into control systems with a wide range of fieldbus systems and Ethernet standards.
- 2Robust Performance: Supports multiple communication protocols including PROFIBUS, CANopen, and more for efficient data transmission.
- 3Compact Housing: Extremely compact I/O nodes with finely granular modules for high integration density.
- 4Easy Installation: Simple and straightforward installation process with clear port levels and status indication LEDs.
- 5Durable Construction: Built with polycarbonate and polyamide 6.6 materials, ensuring mechanical strength and vibration resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital outputs | 8 | Number of Channels | 8 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Actuator connection | 8 x (1-wire) | Output characteristic | low-side switching |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Load type | Resistive, inductive, lamp load | Reverse voltage protection | Yes |
Switching frequency (max.) | 2 kHz | Inductive load switch-off energy dissipation (max.) | 0.5J |
Output data width (internal) max. | 8bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 25mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Current consumption, field supply (module with no external load) | 12mA | Isolation | 500 V system/field |
Indicators | LED (A-H) green: Status DO 1 … DO 8 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 8 x CAGE CLAMP?(outputs) | Connection type 1 | Output |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 67.8 mm / 2.669 inches |
Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches | Mounting type | DIN-35 rail |
Pluggable connector | fixed | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.215MJ |
Weight | 48.7g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | 0bab5430-8a60-4608-afad-e1f882bea579 | SCIP notification number (Czech Republic) | 6098e7b4-3879-4882-9215-11eb81fce5d3 |
Specifications may be subject to change without notice
