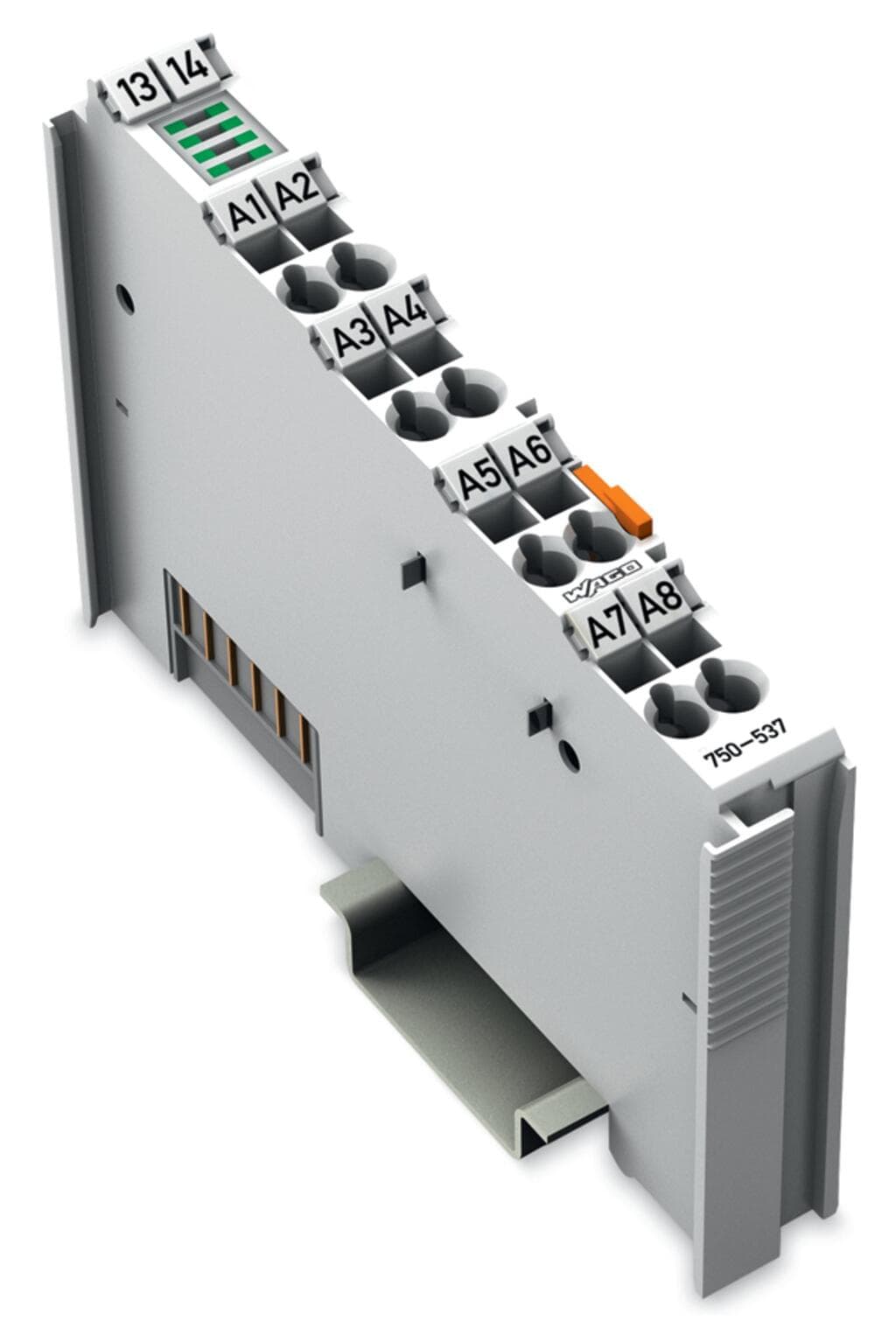

Product Model
750-537
Selling Points
- 1Supports up to 8 digital output channels in a compact module.
- 2Utilizes CAGE CLAMP® connections for secure and reliable wiring.
- 3Compatible with various fieldbus systems and PLC applications.
- 4Built with polycarbonate and polyamide 6.6 for mechanical strength and resistance to environmental conditions.
- 5Allows for customization of each channel's requirements for maximum flexibility in automation setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital outputs | 8 | Number of Channels | 8 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Actuator connection | 8 x (1-wire) | Output characteristic | high-side switching |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Load type | Resistive, inductive, lamp load | Reverse voltage protection | Yes |
Open-circuit detection | 0.1mA | Short-circuit limitation (typ.) PWM | 12A |
Switching frequency (max.) | 1 kHz | Inductive load switch-off energy dissipation (max.) | 0.1J |
Diagnostics | Open circuit, short circuit, overload | Input data width (internal) max. | 8bits |
Output data width (internal) max. | 8bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 50mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Current consumption, field supply (module with no external load) | 16mA | Isolation | 500 V system/field |
Indicators | LED (A-H) green/red: Status/diagnostics DO 1 … DO 8 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 8 x CAGE CLAMP?(outputs) | Connection type 1 | Output |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 67.8 mm / 2.669 inches |
Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches | Mounting type | DIN-35 rail |
Pluggable connector | fixed | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.967MJ |
Weight | 51g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | d834afb7-4c12-4ada-b133-53c1375d875a | SCIP notification number (Belgium) | 566e7cb8-0926-4fa4-b498-597df1a16485 |
SCIP notification number (Bulgaria) | 31f4d776-9d2b-42e8-9b4b-03b63e461e9b | SCIP notification number (Czech Republic) | 726e07fb-9427-4c3a-a398-2dd4251055fa |
SCIP notification number (Denmark) | f96bde6f-4f34-40e4-96a5-af4712e07b40 | SCIP notification number (Finland) | a1cd427a-9ea5-4ba2-9907-a86e42c3bd84 |
SCIP notification number (France) | 04c696c1-318d-4dd0-b16f-648387817d61 | SCIP notification number (Germany) | 1673c9e4-4bd4-46c2-a6bf-ac3177188f73 |
SCIP notification number (Hungary) | 351f923e-222e-4085-bc95-7b2a8cf88de1 | SCIP notification number (Italy) | 4b06289a-2b37-41bc-ac44-a5f66fb244fc |
SCIP notification number (Netherlands) | e0a50652-6058-414c-97d6-cf8870ffb40d | SCIP notification number (Poland) | d1e013b5-635c-4b55-803d-8751702a6bcf |
SCIP notification number (Romania) | a4fe1afd-b260-4143-bff5-87cdb3b60b8b | SCIP notification number (Sweden) | 7b0a81b6-9e95-4fb0-ba70-dd884a81d4f4 |
Specifications may be subject to change without notice
