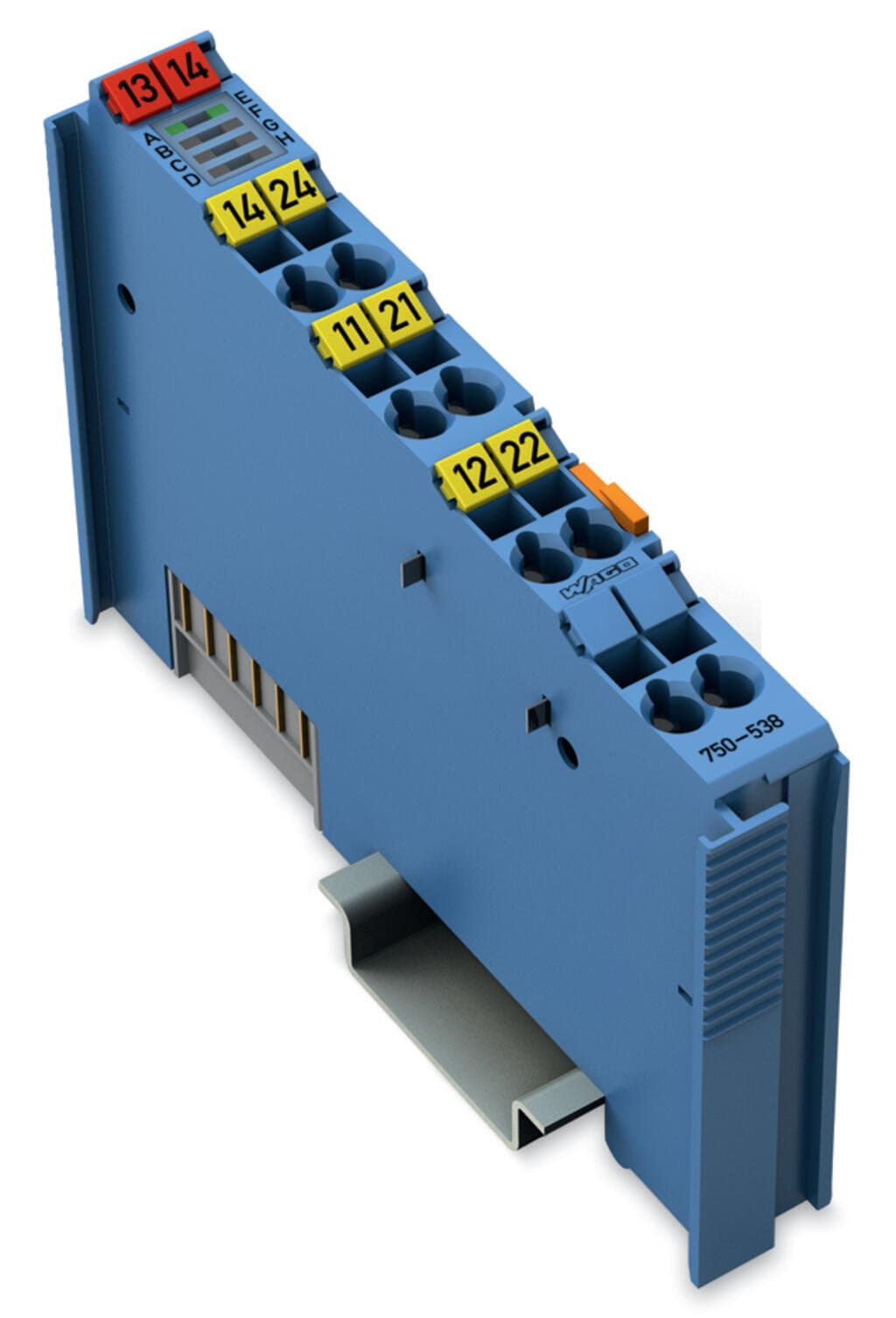

Product Model
750-538
Selling Points
- 1Ensures reliable switching operations without electrical interference.
- 2Designed for safe operation in hazardous environments, meeting ATEX and IECEx standards.
- 3Easy installation on standard DIN rails for efficient system integration.
- 4Withstands 4g vibrations per IEC 60068-2-6, ensuring durability in harsh environments.
- 5Measures 12x100x67.8mm, perfect for space-constrained automation setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The digital output module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals! | Number of digital outputs | 2 |
Number of Channels | 2 | Signal type | Digital |
Signal type (voltage) | 100?VAC; 30?VDC | Actuator connection | 2 x (3-wire) |
Output circuit design | 2 changeover contacts | Output characteristic | potential-free |
Switching frequency (max.) | 0.3?Hz | Load type | Resistive, inductive, lamp load |
Switching voltage (max.) | 100?VAC, 30?VDC | Switching current (max.) | 0.5A |
Switching current (note) | 0.5 A at 100 VAC; 1 A at 30 VDC | Switching voltage (min.) | 0.01V |
Switching current (min.) | 0.01mA | Power consumption P<sub>max.</sub> | 0.8 W |
Switching power | 50?VA / 30?W | Pull-in time (max.) | 4ms |
Drop-out time (max.) | 4ms | Electrical switching operations (min.) (at max. resistive load) | 100?x 103 switching operations |
Mechanical switching operations (min.) (at max. resistive load) | 100?x 10? switching operations | Output data width (internal) max. | 2bits |
Intrinsically safe Ex i | yes | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 26mA | Supply voltage (field) | 24 VDC; (Ex i power supply: Uo= max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
Current consumption, field supply (module with no external load) | 24mA | Power loss P<sub>l</sub> | 0.8 W |
Isolation | 300?VAC system/supply | Indicators | LED (A, E) green: Status relay 1, relay 2 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 1A | Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I |
Ex standard | EN IEC 60079-0, -7, -11 | Safety-relevant data (circuit) | Relay output:Ui= 30 VDC; Ii= 1 A; Pi= 30 W; Ui= 100 VAC; Ii= 0.5 A; Pi= 50 VA; Li= negligibly small; Ci= negligibly small.Both maximum switching current and voltage must comply with EN 60079-11. |
Connection technology: inputs / outputs | 6 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 67.8?mm?/ 2.669?inches |
Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches | Mounting type | DIN-35 rail |
Color | blue | Contact material | Ag alloy (with gold flash) |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.976MJ |
Weight | 49.1g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821694823 | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | d5f097b7-abf8-45ad-b3d6-b946671af2f4 | SCIP notification number (Belgium) | bc938025-28c2-42df-b54b-e4afb7730e85 |
SCIP notification number (Bulgaria) | 002bd186-d5e3-47b3-a7a0-0389c8b06f75 | SCIP notification number (Czech Republic) | 5a60556d-909a-4527-8f57-cb9a00d43af1 |
SCIP notification number (Denmark) | 6022b4af-1510-49c7-a5c1-b9597d95f99e | SCIP notification number (Finland) | 8a5098d3-6519-4d07-827a-b7bbeb879faa |
SCIP notification number (France) | 406fa678-d793-411e-a492-2067b6d1f6fd | SCIP notification number (Germany) | 3c9d315e-a017-4d5c-91f8-d6a6defebaf3 |
SCIP notification number (Hungary) | 06717bb8-38dd-42c6-8d6a-45e1ce22fe4e | SCIP notification number (Italy) | e749c4cb-46c1-49e0-af72-1f7934257865 |
SCIP notification number (Netherlands) | f9ba7bbb-cfc3-498a-b3b2-912cd79b6bcf | SCIP notification number (Poland) | 058fa26f-3bef-4e58-bcab-a083d9b032cf |
SCIP notification number (Romania) | 72236ad5-6438-41d5-a481-598ef0fdf16d | SCIP notification number (Sweden) | 3a2c1934-049e-4915-848c-d5761f0faec8 |
Order text | 2-Channel Relay Output; Changeover contact; Potential-free | ECCN | NO US CLASSIFICATION |
Specifications may be subject to change without notice
