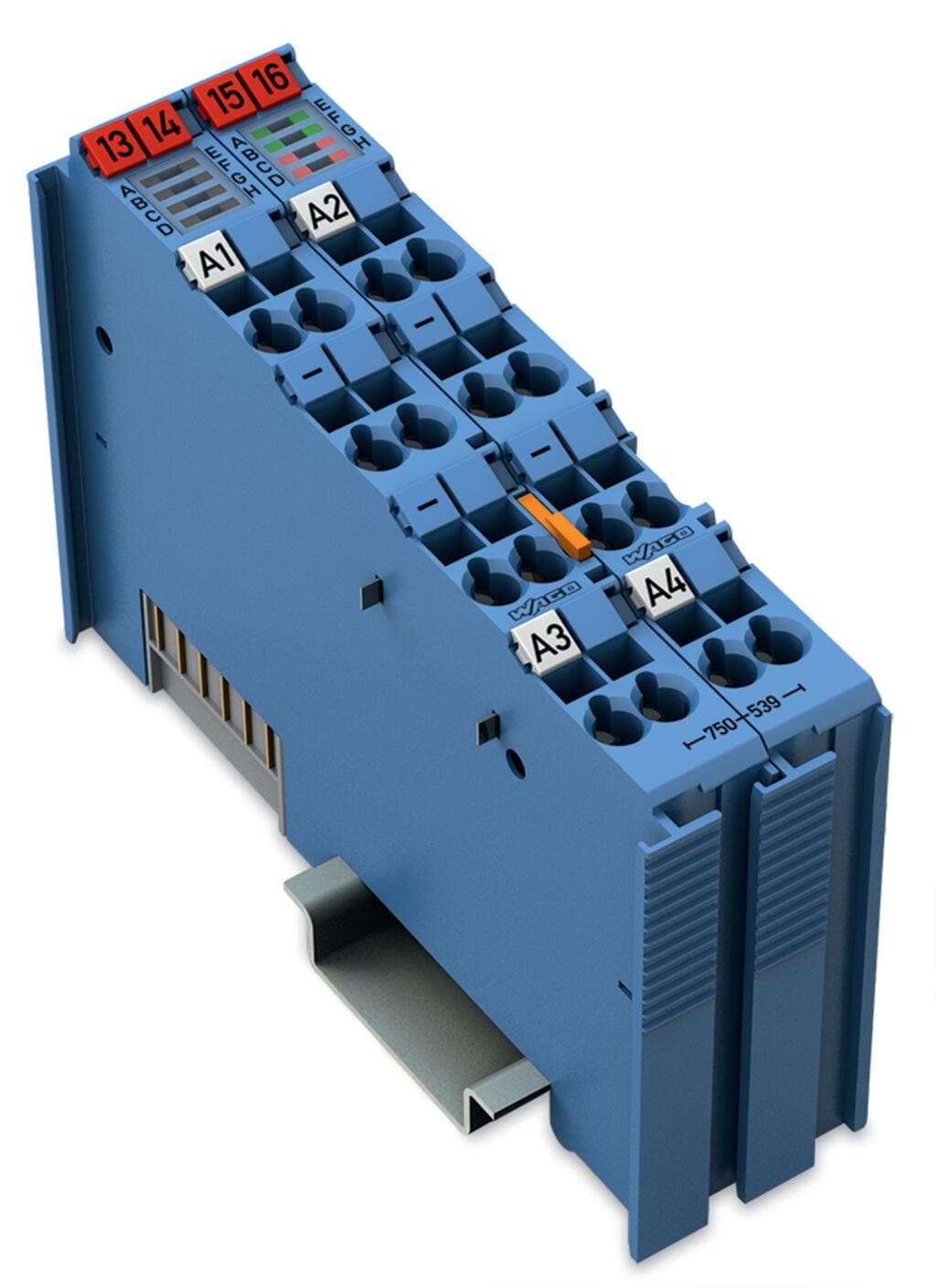

Product Model
750-539
Selling Points
- 1Four single-ended analog inputs with 0-10Vdc range.
- 212-bit resolution for precise signal processing.
- 310ms conversion time for fast data acquisition.
- 4Compact 12mm width for DIN-35 rail mounting.
- 5IP20 protection rating for reliable operation in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The digital output module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals! | Number of digital outputs | 4 |
Number of Channels | 4 | Signal type | Digital |
Signal type (voltage) | 24?VDC | Actuator connection | 4 x (2-wire) |
Output characteristic | high-side switching | Switching frequency (max.) | 100?Hz |
Load type | Resistive, inductive, lamp load | Power consumption P<sub>max.</sub> | 4.86 W (at 47 mA output current) |
Input data width (internal) max. | 4bits | Output data width (internal) max. | 4bits |
Intrinsically safe Ex i | yes | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 20mA | Supply voltage (field) | 24 VDC; (Ex i power supply: Uo= max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
Current consumption, field supply (module with no external load) | 10mA | Isolation | UM = 375 V system/supply |
Indicators | LED (A, B, E, F) green: Status DO 1 … DO 4; LED (C, D, G, H) red: Diagnostics DO 1 … DO 4 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 1A |
Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I | Ex standard | EN IEC 60079-0, -7, -11 |
Safety-relevant data (circuit) | Uo= 27.3 V; Io= 117.5 mA; Po= 800.1 mW; Linear characteristic curve | Reactances?Ex ia IIC | Lo= 13 μH; Co= 88 nF |
Reactances Ex ia IIB | Lo= 8.1 mH; Co= 683 nF | Reactances Ex ia IIA | Lo= 14 mH; Co= 2.28 μF |
Reactances Ex ia I | Lo= 21 mH; Co= 540 nF | Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 24?mm?/ 0.945?inches |
Height | 100?mm?/ 3.937?inches | Depth | 67.8?mm?/ 2.669?inches |
Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches | Mounting type | DIN-35 rail |
Color | light blue | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 2.035MJ | Weight | 88.5g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143514149 | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | e34a3d4a-a1fb-40f8-bb5b-54bf7c28fdaa | SCIP notification number (Belgium) | 2ce8ca47-89a4-4c43-9427-dd8fe99d3e7b |
SCIP notification number (Bulgaria) | 75528983-07fe-4087-af2d-af7edf979c73 | SCIP notification number (Czech Republic) | f9fb62b0-c110-4b20-b537-5f7510b2a650 |
SCIP notification number (Denmark) | 64b48830-f285-4cef-aac8-318ab049c8ef | SCIP notification number (Finland) | d21d7caf-d593-4078-a77f-144b060c5b80 |
SCIP notification number (France) | 8b7b3506-826e-4320-9f88-d4aca5af520d | SCIP notification number (Germany) | 8ec2c402-dd38-40d4-a575-630c5dcb958a |
SCIP notification number (Hungary) | 441ec9b2-f306-4c04-afe9-d73926e312af | SCIP notification number (Italy) | 74e79e14-0ac4-47f2-8486-55872426dabd |
SCIP notification number (Netherlands) | 74678b8e-c44c-499b-a41f-66be291f6a26 | SCIP notification number (Poland) | 7afc2831-b145-414f-83b7-93c174189b9a |
SCIP notification number (Romania) | 470ef858-fac1-4205-8178-bee373f05ff7 | SCIP notification number (Sweden) | 3528ae04-7447-476d-a23d-783b22d2f64a |
Order text | 4-Channel Digital Output; 24 VDC; Valve | Output current per channel | 0.047A |
Internal resistance R<sub>i</sub> | 290Ω | Power loss P<sub>l</sub> | 2.86 W (at 47 mA output current) |
ECCN | NO US CLASSIFICATION |
Specifications may be subject to change without notice
