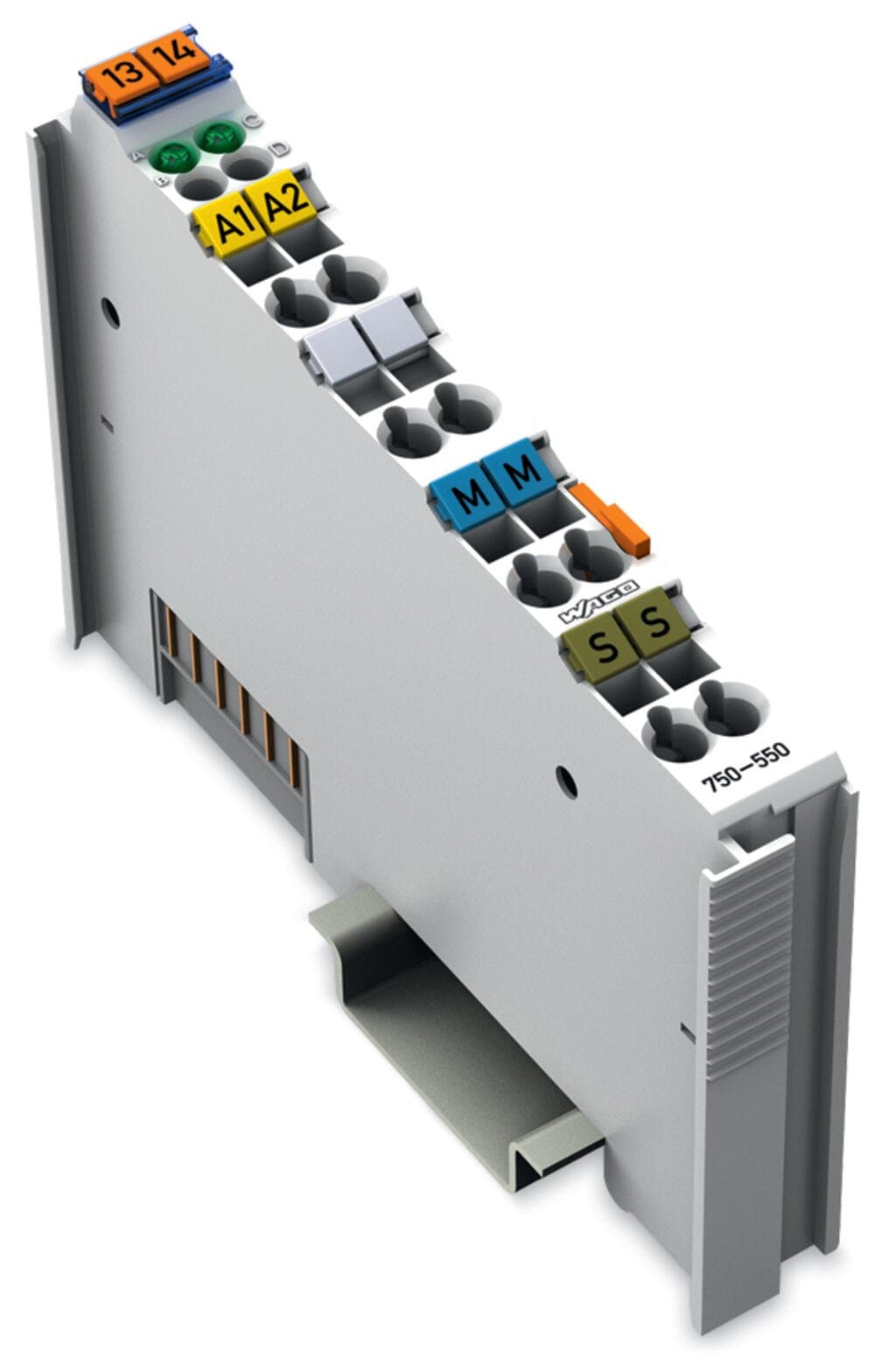

Product Model
750-550
Selling Points
- 1DIN-35 Rail Mounting: Designed for easy installation on DIN-35 rail systems, ensuring compact and efficient integration.
- 2High Resolution Signals: Provides 12-bit resolution analog outputs with a range of 0-10VDC, ensuring precise signal transmission.
- 3Fast Conversion Time: Offers a conversion time of 2ms, making it suitable for real-time applications.
- 4Electrical Isolation: Features electrical isolation up to 500V system/supply, ensuring safe operation in various environments.
- 5Robust Construction: Built with polycarbonate and polyamide 6.6, providing durability and resistance to environmental factors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog outputs | 2 | Number of Channels | 2 |
Signal type | Voltage | Signal type (voltage) | 0 … 10?VDC |
Actuator connection | 2 x (2-wire) | Resolution [bit] | 12bits |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Load impedance (voltage output) | ≥?5?kΩ |
Conversion time (typ. ≤) | 2ms | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | 0.1% | Temperature error max. (upper-range value) ≤± | 0.01%/K |
Output error, deviation (max.) of the upper-range value | 0.1% | Temperature error (max.) of the output range value | 0.01%/K |
Recovery time (typ.) | 0.3ms | Linearity | ±10 mV |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 65mA |
Isolation | 500?V system/field | Indicators | LED (A, C) green: Function AO 1, AO 2 |
Connection technology: inputs / outputs | 6 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.014MJ | Weight | 63g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-01 | eCl@ss 9.0 | 27-24-26-01 |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454393557 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 45d9cd85-5cc1-40d2-b57d-a204faec277d | SCIP notification number (Belgium) | e1ce1d73-af0c-483f-a361-0d945e913929 |
SCIP notification number (Bulgaria) | c85666b7-e302-438d-9a73-aaf63f2fa294 | SCIP notification number (Czech Republic) | 33189a48-ccff-4639-aed5-b01b0c43d9c0 |
SCIP notification number (Denmark) | 150c7557-eaf5-4561-9317-31efd859b329 | SCIP notification number (Finland) | 9293603d-ec22-463e-ae0f-d4482ae71a23 |
SCIP notification number (France) | 865b394d-ce1e-4260-a40c-6ce0eb231397 | SCIP notification number (Germany) | 3b03bb44-dbe8-4ef0-8a89-c8ea31caa5b8 |
SCIP notification number (Hungary) | bf7a804f-9b11-4384-8e3e-2af989a759e0 | SCIP notification number (Italy) | fcf38e00-ac70-47e0-9779-35d8d2882f84 |
SCIP notification number (Netherlands) | 300380d9-dacd-4cfb-bad4-331d58e56aea | SCIP notification number (Poland) | 3343ea0d-ea0c-411f-b9dd-cb047f8e13ec |
SCIP notification number (Romania) | d490ebf3-6b96-4f92-affd-499c74536657 | SCIP notification number (Sweden) | 08f5ba12-554c-4649-ac48-49db042ca3ba |
Specifications may be subject to change without notice
