Product Model

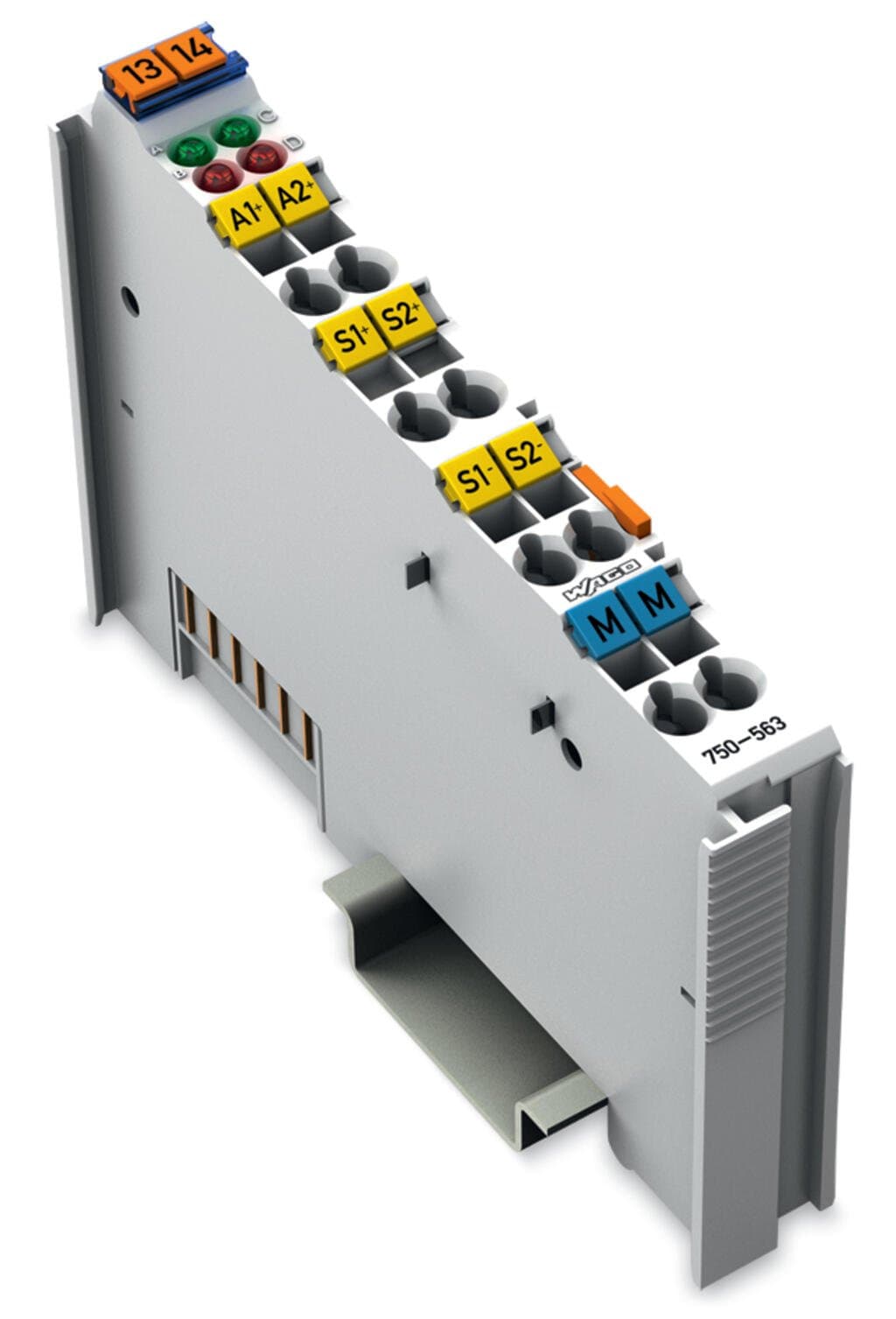

750-563
Selling Points
- 1High Precision Analog Output: The WAGO 750-563 module offers precise analog output signals, ensuring accurate data transmission in industrial automation systems.
- 2Robust Design for Demanding Applications: Built to withstand extreme temperatures and vibrations, this module is perfect for use in harsh industrial environments.
- 3Easy Integration with WAGO I/O System: Seamlessly integrate the 750-563 module into your existing WAGO I/O system for a streamlined automation process.
- 4Wide Operating Temperature Range: Functioning from -40°C to +70°C, this module can operate in a variety of temperature conditions.
- 5Compliance with Industrial Standards: Meets or exceeds industry standards for isolation and immunity to interference, ensuring reliable operation in complex systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog outputs | 2 | Number of Channels | 2 |
Signal type | Voltage | Signal type (current) | 0 … 20?mADC; 4 … 20?mADC |
Signal type (voltage) | 6 … 18?VDC | Signal type (configurable) | yes |
Actuator connection | 2 x (2-wire,?4-wire) | Resolution [bit] | 16bits |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Load impedance (voltage output) | ≥?1.8?kΩ |
Load impedance (current output) | ≤?500?Ω | Conversion time (typ. ≤) | 5ms |
Measurement error, reference temperature | 25°C | Measurement error, deviation max (upper-range value) ≤± | 0.05% |
Output error, deviation (max.) of the upper-range value | 0.05% | Temperature coefficient | < ±100 ppm |
Recovery time (typ.) | 0.3ms | Configuration options | WAGO-I/O-CHECK |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 95mA |
Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
Indicators | LED (A, C) green: Function AO 1, AO 2; LED (B, D) red: Error AO 1, AO 2 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.967MJ | Weight | 51.2g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61131-2, marine applications | EMC emission of interference | per EN 61131-2, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-01 | eCl@ss 9.0 | 27-24-26-01 |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454710323 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 24fb0d81-a166-4ab8-bd19-58418553588c | SCIP notification number (Belgium) | 879bb2fe-0bfc-45ae-b0d4-4134f4a4b888 |
SCIP notification number (Bulgaria) | e07c18eb-f161-4a83-9a09-e374cef49807 | SCIP notification number (Czech Republic) | 30f196d7-0836-4952-88fe-71857b3234d3 |
SCIP notification number (Denmark) | 8240ca2d-3794-4e2a-ad62-158ba42f08b7 | SCIP notification number (Finland) | 2670e615-8282-4b50-bbc1-757a3ed8f3d5 |
SCIP notification number (France) | 76638ee7-4da2-4f0c-b485-bb4b29e61539 | SCIP notification number (Germany) | 380f63d7-40fa-4e2d-9df6-d66377ba4aa1 |
SCIP notification number (Hungary) | 63db4831-580f-42d9-b810-78e631988035 | SCIP notification number (Italy) | 7a3176e6-ac9e-4688-8dbd-e7b17421c0dd |
SCIP notification number (Netherlands) | d04fe85c-cd35-4890-8e1c-35c0f66bf83a | SCIP notification number (Poland) | 7ef5049a-e27c-4af0-a2d8-870c749fdc74 |
SCIP notification number (Romania) | a2d2843c-4c16-41ed-81ff-f719a4daca11 | SCIP notification number (Sweden) | 7e617b6a-c9fb-4a41-b8a8-5af9174f4d55 |
Specifications may be subject to change without notice
