Product Model

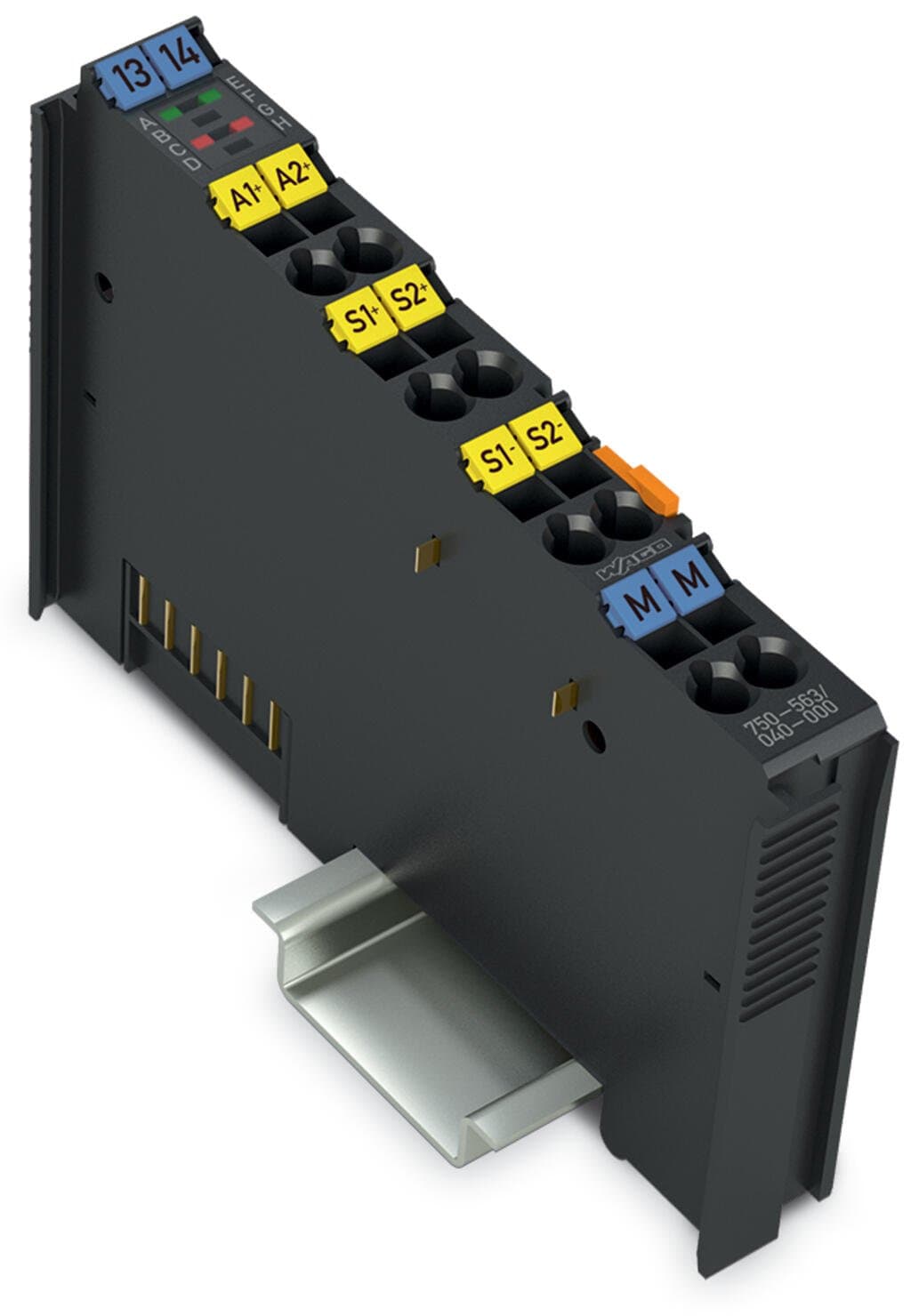

750-563/040-000
Selling Points
- 1High precision analog output with ±10 V range.
- 2Compatible with extreme temperature ranges (-40°C to +70°C).
- 3Designed for DIN-35 rail mounting with a 12mm width.
- 4Features high-side switching and short-circuit protection.
- 5Ideal for applications requiring precise analog signal control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog outputs | 2 | Number of Channels | 2 |
Signal type | Voltage | Signal type (current) | 0 … 20?mADC; 4 … 20?mADC |
Signal type (voltage) | 6 … 18?VDC | Signal type (configurable) | yes |
Actuator connection | 2 x (2-wire,?4-wire) | Resolution [bit] | 16bits |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Load impedance (voltage output) | ≥?1.8?kΩ |
Load impedance (current output) | ≤?500?Ω | Conversion time (typ. ≤) | 5ms |
Measurement error, reference temperature | 25°C | Measurement error, deviation max (upper-range value) ≤± | 0.05% |
Output error, deviation (max.) of the upper-range value | 0.05% | Temperature coefficient | < ±100 ppm |
Recovery time (typ.) | 0.3ms | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 95mA | Supply voltage (field) | 24?VDC?(-15 … +30?%);?via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed! |
Dielectric strength | 510 VAC / 775 VDC; per EN 60870-2-1 | Rated surge voltage | 1?kV |
Indicators | LED (A, E) green: Function AO 1, AO 2; LED (C, G) red: Error AO 1, AO 2 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (?25 … +30°%);for ?40 … +55° C: 24 V (min. … +20°%);for +55 … +70°°C: 24 V (min. … +10°%);Voltage range (min.): 21.6°V; Current range (min.): 20.4°V;Lower limit in all temperature ranges: ?27.5°% (including 15°% residual ripple) | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | dark gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.958MJ |
Weight | 51g | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 | Shock resistance | per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 | EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-01 | eCl@ss 9.0 | 27-24-26-01 |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821460367 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | 2a246809-2460-4766-89bd-889f3cb114cc | SCIP notification number (Czech Republic) | cb7b93d3-3e7d-4e64-8d5d-bf1944ebc38f |
Specifications may be subject to change without notice
