Product Model

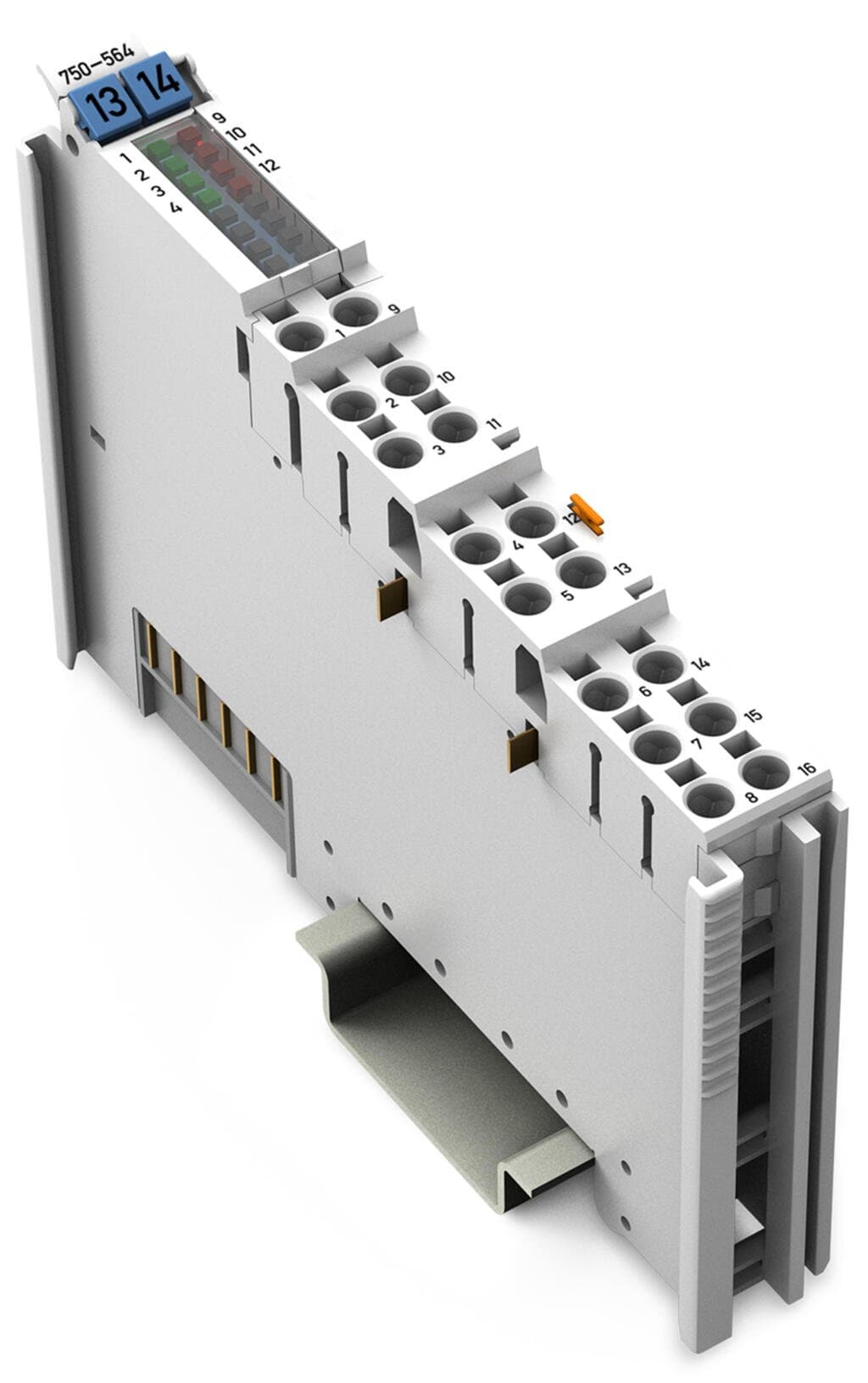

750-564
Selling Points
- 1Provides 16-bit resolution for accurate signal transmission.
- 2Supports a wide range of signals including 0-10mA, 4-20mA, and -10 to +10V.
- 3Built with polycarbonate and polyamide 6.6 housing for long-lasting performance.
- 4Designed for DIN-35 rail mounting with 16 x Push-in CAGE CLAMP connections.
- 5Features 500V system/field isolation for safe operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog outputs | 4 | Number of Channels | 4 |
Signal type | Voltage | Signal type (current) | 0 … 10?mA; 2 … 10?mA; -10 … +10?mA; 0 … 20?mA; 4 … 20?mA; -20 … +20?mA; 0 … 22?mA; -22 … +22?mA; 0 … 12?mA; -12 … +12?mA |
Signal type (voltage) | 0 … 5?V; 1 … 5?V; -5 … +5?V; 0 … 10?V; 2 … 10?V; -10 … +10?V; 0 … 12?V; -12 … +12?V | Actuator connection | 4 x (2-wire);?Voltage outputs can optionally be connected in 4-wire technology via the sense lines. |
Resolution [bit] | 16bits | Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
Load impedance (voltage output) | ≥?1?kΩ | Load impedance (current output) | ≤?600?Ω |
Conversion time (typ. ≤) | 3ms | Reference for measurement error | Voltage/Current |
Output error, reference temperature | 25.°C | Output error, deviation (max.) of the upper-range value | 0.05% |
Temperature coefficient | U: ±25 ppm/K of the upper-range value; I: ±50 ppm/K of the upper-range value | Configuration options | WAGO-I/O-CHECK |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 55mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
Indicators | LED (1-4) green: Status AO 1 … AO 4; LED (9-12) red: Error AO 1 … AO 4 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69?mm?/ 2.717?inches | Depth from upper-edge of DIN-rail | 61.8?mm?/ 2.433?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.848MJ | Weight | 51g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-3 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143933223 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | ff605b72-1492-4eea-9540-1b10a4e14799 | SCIP notification number (Belgium) | 6a38898c-c23c-4020-892c-9d000e0e599d |
SCIP notification number (Bulgaria) | 76060568-a696-456c-8df1-15068ddae193 | SCIP notification number (Czech Republic) | ef4e81d6-7c41-48d8-85eb-cbf0c1342f1e |
SCIP notification number (Denmark) | 439e8787-5feb-4a13-8c47-0f47a5c15fe3 | SCIP notification number (Finland) | 3b28c00f-c0c3-42e2-9c8a-5aaadb1d3175 |
SCIP notification number (France) | eb5c9baa-4301-427c-a15f-be6b86254555 | SCIP notification number (Germany) | 752bd75f-a999-4db8-a314-d67481047d66 |
SCIP notification number (Hungary) | 4808eb04-de68-43cb-9240-bfde84ecb644 | SCIP notification number (Italy) | e4d68597-2633-42ac-9cd6-838d61cebad8 |
SCIP notification number (Netherlands) | 298d87f9-e91b-4799-bce6-dfda9d0e0c0b | SCIP notification number (Poland) | 4fe1d60a-ced7-4c3c-b0cd-8f8b9a7f5631 |
SCIP notification number (Romania) | 19c7ac7f-1b97-4342-b605-787060b72971 | SCIP notification number (Sweden) | bf2e9e26-969f-427b-9740-ce4e3fda6797 |
Specifications may be subject to change without notice
