Product Model

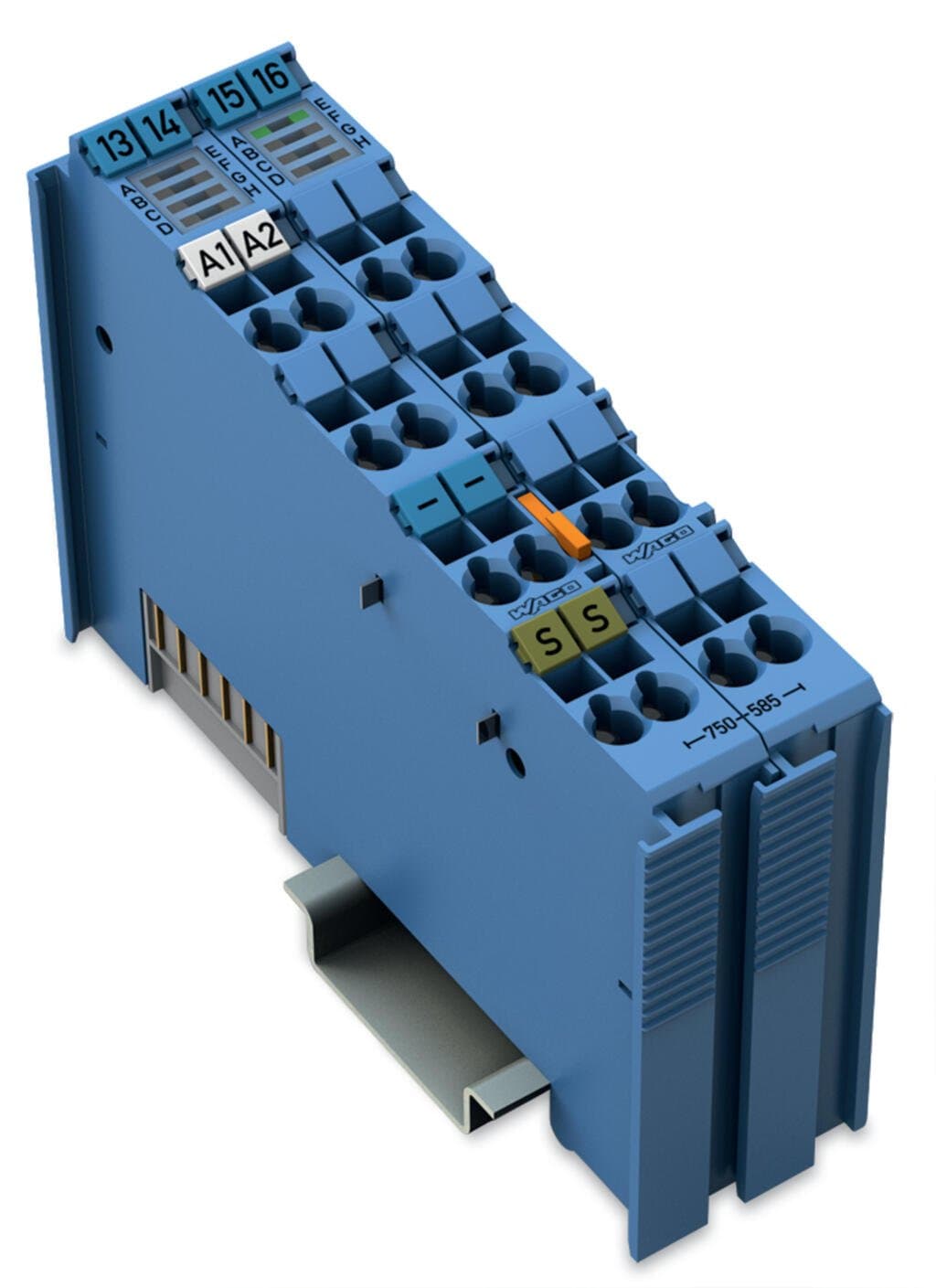

750-585
Selling Points
- 1Intrinsically Safe Design: Ensures safe operation in Zone 0+1 hazardous areas.
- 2High Accuracy: Transmits signals with 12-bit resolution and 2 ms conversion time.
- 3Compact and Durable: Meets IP20 protection class with a robust polycarbonate and polyamide 6.6 housing.
- 4Easy Installation: Mounts securely on DIN-35 rail with CAGE CLAMP connections.
- 5Versatile Power Supply: Operates with 24 VDC Ex i power supply, ensuring reliable power delivery.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The analog output module must only be operated with a 24 VDC Ex i power supply!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals! | Order text | 2-Channel Analog Output; 0 … 20 mA |
Number of analog outputs | 2 | Number of Channels | 2 |
Signal type | Current | Signal type (current) | 0 … 20?mADC |
Actuator connection | 2 x (2-wire) | Signal characteristics | Single-ended |
Resolution [bit] | 12bits | Conversion time (typ. ≤) | 2ms |
Linearity | ± 2 LSB | Output error, reference temperature | 25.°C |
Output error, deviation (max.) of the upper-range value | <±0.2% | Temperature error (max.) of the output range value | <±0.01%/K |
Load impedance (current output) | ≤?500?Ω | Intrinsically safe Ex i | Yes |
Data width | 2 x 16-bit data | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 21mA | Supply voltage (field) | 24 VDC; (Ex i power supply: Uo= max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
Current consumption, field supply (module with no external load) | 19mA | Power consumption P<sub>max.</sub> | 1.5 W |
Power loss P<sub>l</sub> | 0.9 W | Isolation | 300?VAC system/supply |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 1A | Indicators | LED (A, E) green: Function AO 1, AO 2 |
Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I | Ex standard | EN IEC 60079-0, -7, -11 |
Safety-relevant data (circuit) | Uo= 27.3 V; Io= 57.5 mA; Po= 392 mW; linear characteristic curve | Reactances?Ex ia IIC | Lo= 11 mH; Co= 88 nF |
Reactances Ex ia IIB | Lo= 56 mH; Co= 680 nF | Reactances Ex ia IIA | Lo= 90 mH; Co= 2.2 μF |
Reactances Ex ia I | Lo= 110 mH; Co= 3.5 μF | Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) |
Connection technology: inputs / outputs | 6 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 24?mm?/ 0.945?inches |
Height | 100?mm?/ 3.937?inches | Depth | 67.8?mm?/ 2.669?inches |
Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches | Mounting type | DIN-35 rail |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 2.297MJ |
Weight | 90.1g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | 5559734f-5021-4918-9ed7-c188ff7f0b36 | SCIP notification number (Czech Republic) | 283bd2f1-26d5-40d0-b691-80cafe052c3a |
Measurement error, reference temperature | 25°C | Measurement error, deviation max (upper-range value) ≤± | 0.2% |
Temperature error max. (upper-range value) ≤± | 0.01%/K |
Specifications may be subject to change without notice
