Product Model

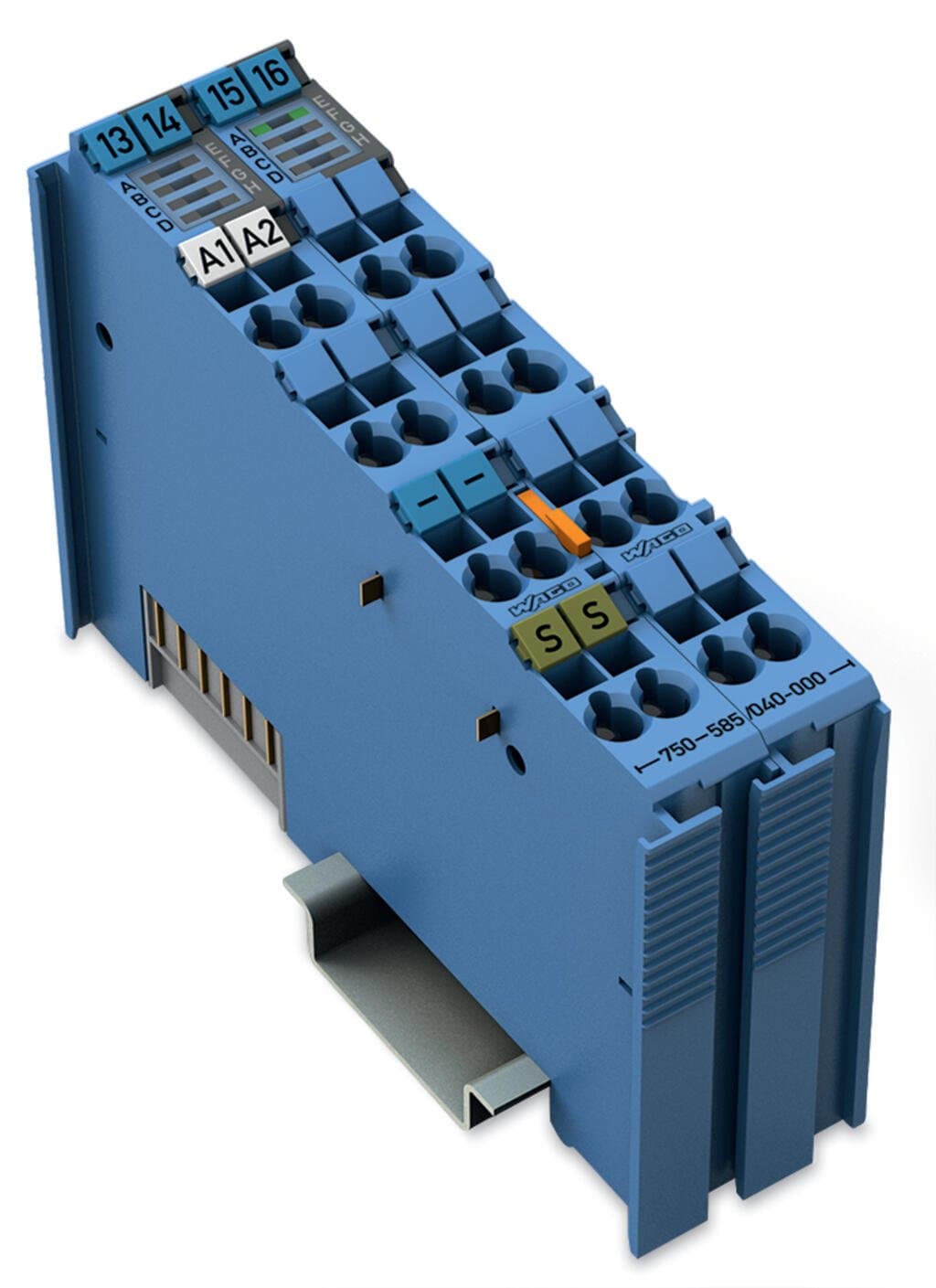

750-585/040-000
Selling Points
- 1Intrinsically Safe Design: Meets Ex i standards for safe operation in hazardous environments.
- 2Extended Temperature Range: Operates from -40°C to +70°C, suitable for various industrial settings.
- 3High Resolution Outputs: Provides 12-bit resolution for precise analog output control.
- 4Fast Conversion Time: Offers a conversion time of just 2ms for real-time data processing.
- 5DIN Rail Mounting: Easy installation on DIN-35 rail with secure spring cage-clamp connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The analog output module must only be operated via 24 VDC Ex i XTR power supply (750-606/040-000)!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 XTR manuals! | Order text | 2-Channel Analog Output; 0 … 20 mA; Intrinsically safe |
Number of analog outputs | 2 | Number of Channels | 2 |
Signal type | Current | Signal type (current) | 0 … 20?mADC |
Actuator connection | 2 x (2-wire) | Signal characteristics | Single-ended |
Resolution [bit] | 12bits | Conversion time (typ. ≤) | 2ms |
Linearity | ± 2 LSB | Output error, reference temperature | 25.°C |
Output error, deviation (max.) of the upper-range value | <±0.2% | Temperature error (max.) of the output range value | <±0.01%/K |
Load impedance (current output) | ≤?500?Ω | Intrinsically safe Ex i | Yes |
Data width | 2 x 16-bit data | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 21mA | Supply voltage (field) | 24 VDC; (Ex i XTR power supply: Uo= max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
Current consumption, field supply (module with no external load) | 19mA | Power consumption P<sub>max.</sub> | 1.5 W |
Power loss P<sub>l</sub> | 0.9 W | Isolation | 300?VAC system/supply |
Rated surge voltage | 1 kV; Rated surge voltage between intrinsically safe and non-intrinsically safe circuits: 1.5 kV (EN 60079-11) | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 1A |
Indicators | LED (A, E) green: Function AO 1, AO 2 | Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I |
Ex standard | EN/IEC 60079-0, -7, -11 | Safety-relevant data (circuit) | Uo= 26.8 V; Io= 56.4 mA; Po= 378 mW; linear characteristic curve |
Reactances?Ex ia IIC | Lo= 8.2 mH; Co= 0.092 μF | Reactances Ex ia IIB | Lo= 46 mH; Co= 0.72 μF |
Reactances Ex ia IIA | Lo= 76 mH; Co= 2.37 μF | Reactances Ex ia I | Lo= 100 mH; Co= 3.85 μF |
Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) | Connection technology: inputs / outputs | 6 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 24?mm?/ 0.945?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | blue |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 2.031MJ |
Weight | 92.8g | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3 | Shock resistance | per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2, EN 61131-2, marine applications, EN 60255-26, EN 60870-2-1, EN 61850-3, IEC 61000-6-5, IEEE 1613, VDEW: 1994 | EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 27bf6e79-aca7-4a6c-9ef3-91a1391edbcd | SCIP notification number (Belgium) | ed2ed39d-8d0f-4df5-a191-6f5fb212a514 |
SCIP notification number (Bulgaria) | 8e4c3e6d-eb98-42de-aeaa-734ad0609525 | SCIP notification number (Czech Republic) | 4ee7bfa4-0fc6-4c15-afcd-875cac1364ee |
SCIP notification number (Denmark) | 65ffdaa5-c131-4f5b-a1ed-5f792a84ec16 | SCIP notification number (Finland) | 2f633e58-e96c-425a-a92c-ed7d4b811867 |
SCIP notification number (France) | 059abc9e-13fd-4a76-aed0-f88c86b82001 | SCIP notification number (Germany) | a1ca373a-a68e-4791-a356-0db924bca662 |
SCIP notification number (Hungary) | 92d8ff2b-7f1b-44e0-9995-2838b5bb78e8 | SCIP notification number (Italy) | cb15d83d-dc17-4618-84a0-b494c3808584 |
SCIP notification number (Netherlands) | 98905474-f667-450a-b23b-b44cb51b4861 | SCIP notification number (Poland) | ea5c3be9-8dc4-4be7-968b-26d1b4d94ef6 |
SCIP notification number (Romania) | 997d257c-46e2-4f27-806b-6df256321cb9 | SCIP notification number (Sweden) | 47a311ee-d976-4562-ac62-dbf153d232f0 |
Measurement error, reference temperature | 25°C | Measurement error, deviation max (upper-range value) ≤± | 0.2% |
Temperature error max. (upper-range value) ≤± | 0.01%/K |
Specifications may be subject to change without notice
