Product Model

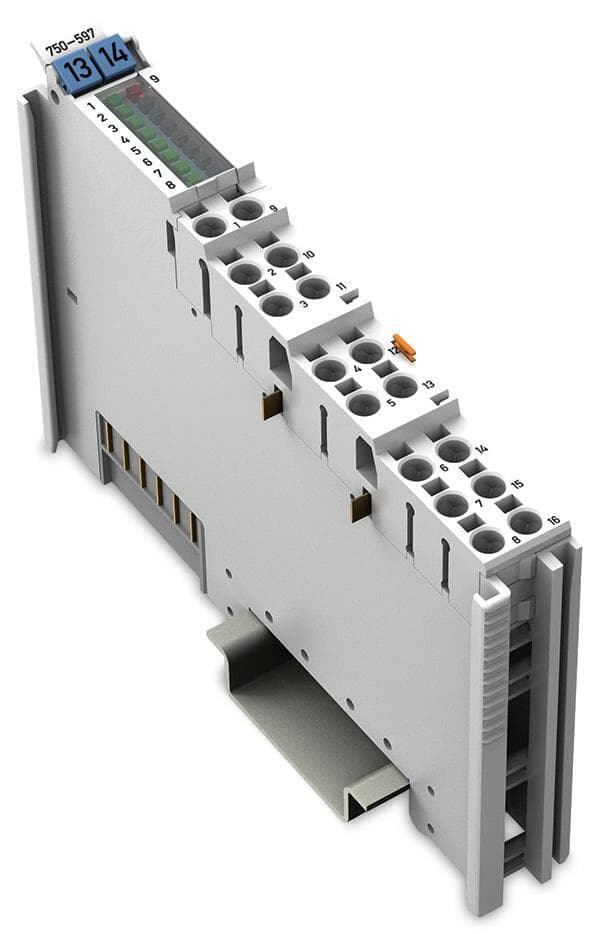

750-597
Selling Points
- 1The WAGO 750-597 features 8 analog outputs with a range of 0-10Vdc or ±10Vdc.
- 2Provides precise control with 12-bit resolution.
- 3Ensures fast and efficient signal processing with a 13ms conversion time.
- 4Designed for easy installation on DIN-35 rail, saving space in industrial settings.
- 5Offers reliable operation in harsh environments with an IP20 protection rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog outputs | 8 | Number of Channels | 8 |
Signal type | Voltage | Signal type (voltage) | 0 … 10?VDC |
Actuator connection | 8 x (2-wire) | Resolution [bit] | 12bits |
Data width | 8 x 16-bit data; 8 x 8-bit control/status (optional) | Load impedance (voltage output) | ≥?2?kΩ |
Conversion time (typ. ≤) | 13ms | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | 0.1% | Output error, deviation (max.) of the upper-range value | 0.1% |
Temperature coefficient | ≤ ±10 ppm/K of the largest output area | Configuration options | WAGO-I/O-CHECK |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 61mA |
Supply voltage (field) | 24 VDC (-15 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
Indicators | LED (1-8) green: Status AO 1 … AO 8; LED (9) red: Error | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69?mm?/ 2.717?inches | Depth from upper-edge of DIN-rail | 61.8?mm?/ 2.433?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.848MJ | Weight | 48g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143432146 |
Customs tariff number | 8538901000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
