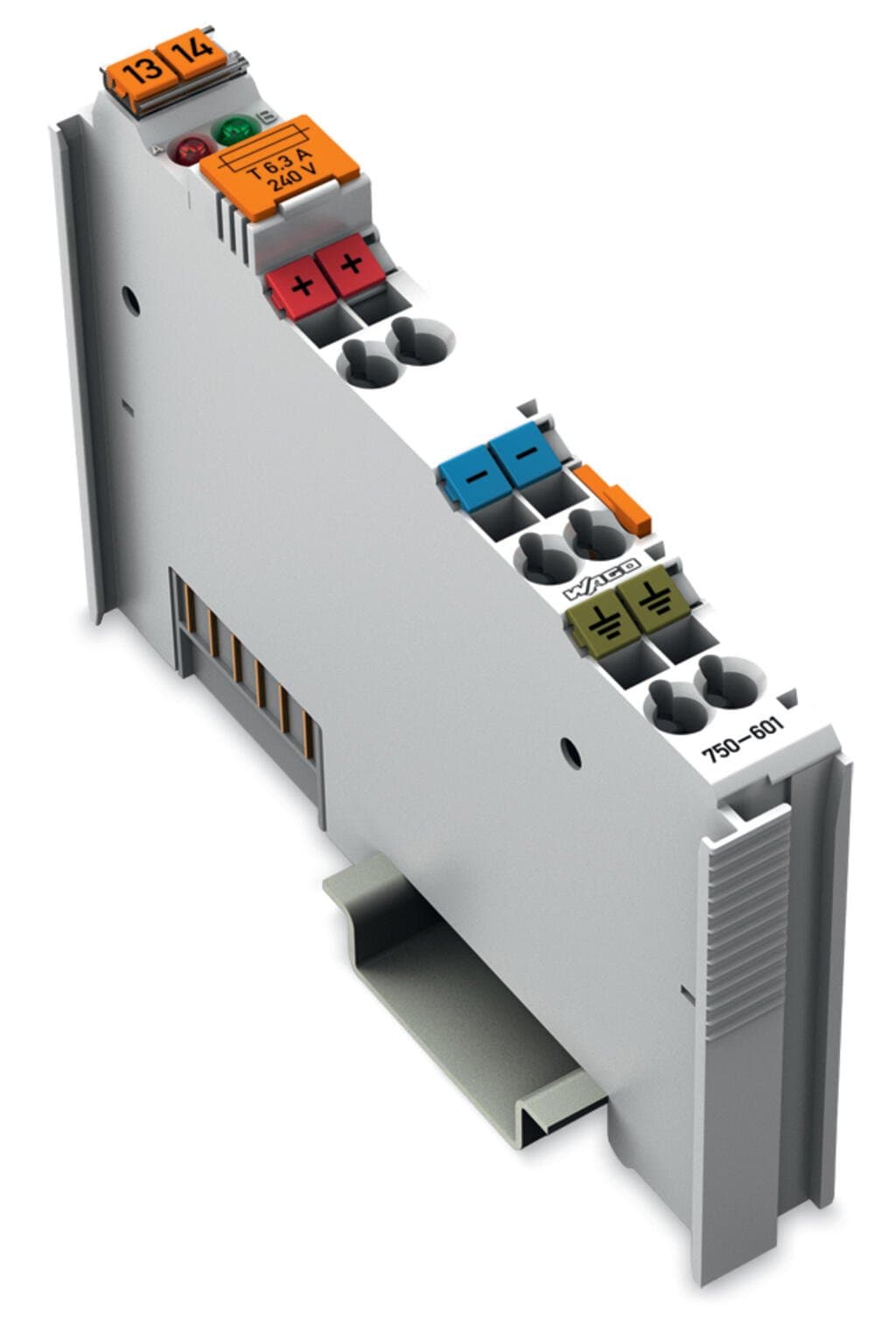

Product Model
750-601
Selling Points
- 1Provides stable 24VDC power for your automation systems.
- 2Delivers up to 6.3A of current, suitable for demanding applications.
- 3Equipped with a fuse holder and carrier for quick and easy fuse changes.
- 4Constructed from polycarbonate and polyamide 6.6, ensuring long-lasting performance.
- 5Mounts easily on DIN-35 rail, simplifying your installation process.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 24?VDC |
Fuse | 5 x 20; T 6.3 A (not included) | Supply voltage (system) | 5?VDC;?via data contacts |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP?connection; transmission (field-side supply voltage only) via spring contact | Indicators | LED (A) red: defective fuse error; LED (B) green: power supply status |
Number of outgoing power jumper contacts | 3 | Current carrying capacity (power jumper contacts) | 6.3A |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | Field supply |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.69MJ | Weight | 46.5g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454415297 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 2867924b-70b7-4758-a590-f995d958ec6a | SCIP notification number (Belgium) | ae843cd9-d39a-4bbe-9894-c68457a9eb18 |
SCIP notification number (Bulgaria) | 61c61a79-8e0e-4929-af8c-4af4b8c8d75c | SCIP notification number (Czech Republic) | 9b5c752b-d91d-4798-b40e-8ed11b5f73cf |
SCIP notification number (Denmark) | 67fa290f-4a2b-4e41-85dc-a74a69814714 | SCIP notification number (Finland) | f703d88e-a5ec-4d15-894d-e643111621ff |
SCIP notification number (France) | 86d221de-037f-47c8-be26-52afc5d1e379 | SCIP notification number (Germany) | cf65bd97-f53e-4d45-84c8-c2c5ba75ff3b |
SCIP notification number (Hungary) | 2837dc61-ff63-403a-ac95-75ce6542ff4e | SCIP notification number (Italy) | 48715baf-a476-42bc-9f1e-4b4b6ef4dd9c |
SCIP notification number (Netherlands) | 24c0f9a0-9a85-4b06-b7c5-0009bbdcd098 | SCIP notification number (Poland) | 16bc0647-06aa-40e8-802c-97f952cacac3 |
SCIP notification number (Romania) | 06246bf7-df3a-48b8-8716-56673a6a9fdd | SCIP notification number (Sweden) | 49a011c8-4aca-45fa-a47c-2d0352a23bcd |
Specifications may be subject to change without notice
