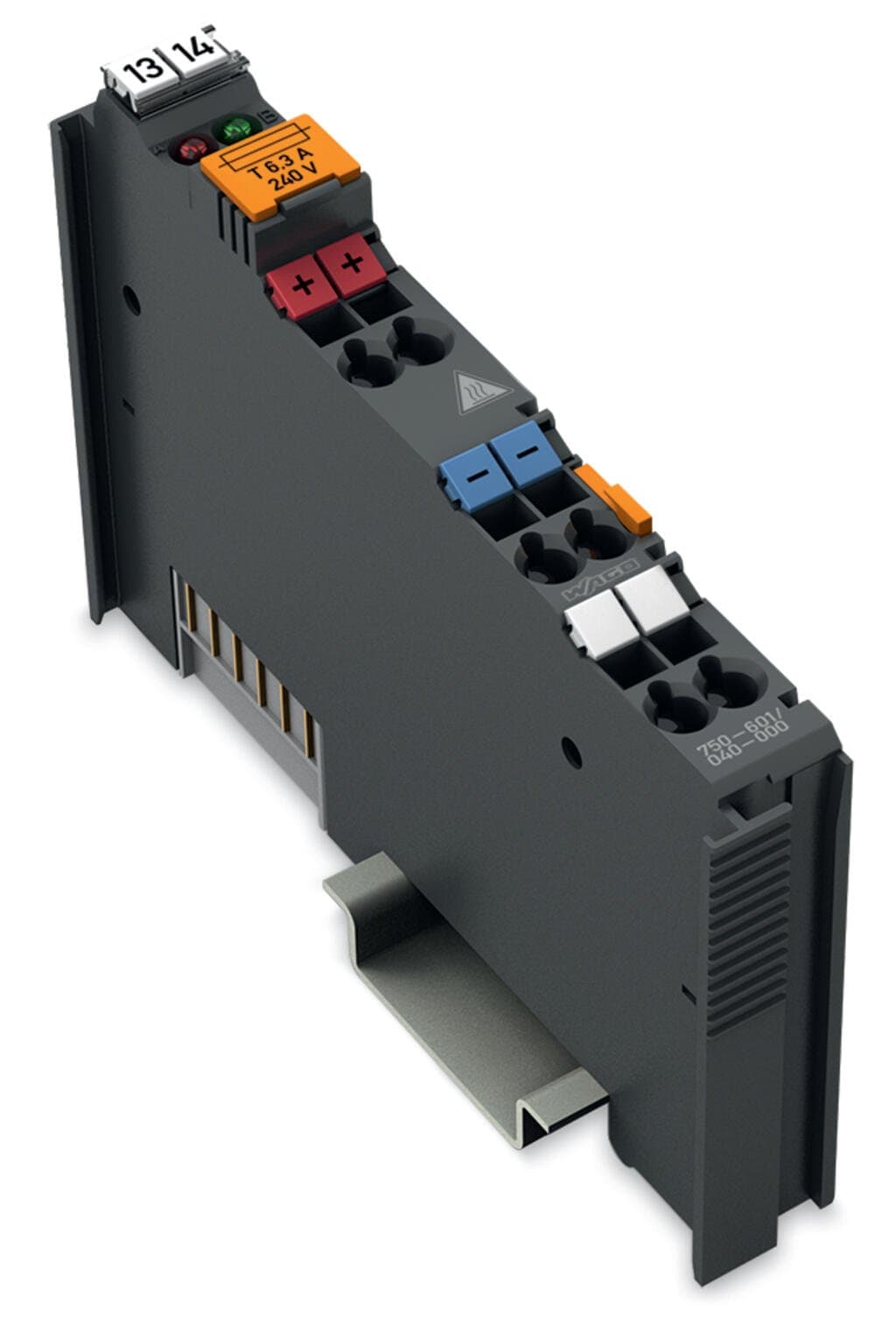

Product Model
750-601/040-000
Selling Points
- 124VDC Supply Voltage: Reliable power supply for industrial applications.
- 2Extended Temperature Range: Operates from -40°C to +70°C, ideal for harsh environments.
- 3Accessible Fuse Holder: Easy fuse replacement indicated by LED indicators.
- 4DIN Rail Mounting: Convenient and secure mounting on DIN-35 rail.
- 5IP20 Protection Rating: Ensures protection against solid particles and water jets.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 24?VDC |
Fuse | 5 x 20; T 6.3 A (not included) | Supply voltage (system) | 5?VDC;?via data contacts |
Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts (power supply via CAGE CLAMP?connection; transmission via spring contact); Derating must be observed! | Rated surge voltage | 1?kV |
Indicators | LED (A) red: defective fuse error; LED (B) green: power supply status | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 6.3A | Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (?25 … +30°%);for ?40 … +55°°C: 24°V (?25 … +20°%);for +55 … +70°°C: 24°V (?25 … +10°%);Lower limit in all temperature ranges: ?27.5°% (including 15°% residual ripple) |
Connection technology: field supply | 4 x CAGE CLAMP? | Connection type 1 | Field supply |
Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 67.8?mm?/ 2.669?inches |
Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches | Mounting type | DIN-35 rail |
Color | dark gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.995MJ | Weight | 50.5g |
Conformity marking | CE | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | Without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) | Vibration resistance | Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 |
Shock resistance | Per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 | EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
EMC emission of interference | Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143673273 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | a9a5c36b-64aa-41b4-94ee-f31411e91dc5 | SCIP notification number (Belgium) | b7cf9d9f-4c64-4432-a541-739707a3778e |
SCIP notification number (Bulgaria) | ff6472e4-b193-4800-8389-2b23924e5304 | SCIP notification number (Czech Republic) | c4c1a913-e9af-480f-b4d6-88e3248a1180 |
SCIP notification number (Denmark) | bd110c56-8ca8-4ece-b528-7b4ed21b0a1d | SCIP notification number (Finland) | 4d69b03d-fc81-495d-a795-11bf56551210 |
SCIP notification number (France) | ab6dae6b-03b6-43ca-a5f5-b8a5adfde64d | SCIP notification number (Germany) | 2f65d7e1-f586-40a7-8680-503c0b386b3e |
SCIP notification number (Hungary) | 1ab7498b-43d9-4f2f-927d-ff059c037a1a | SCIP notification number (Italy) | 8a77a177-c955-414c-84c9-94b7ab8f2ffc |
SCIP notification number (Netherlands) | 53550843-ffff-451d-9a87-10ec08e0cfc3 | SCIP notification number (Poland) | 59b26922-7a0f-4366-b889-7db0f63b4bd8 |
SCIP notification number (Romania) | da3b29cb-684e-4515-9020-e2c02554b603 | SCIP notification number (Sweden) | 0e146a6a-0157-4ff7-a9a6-274f965d5b00 |
Specifications may be subject to change without notice
