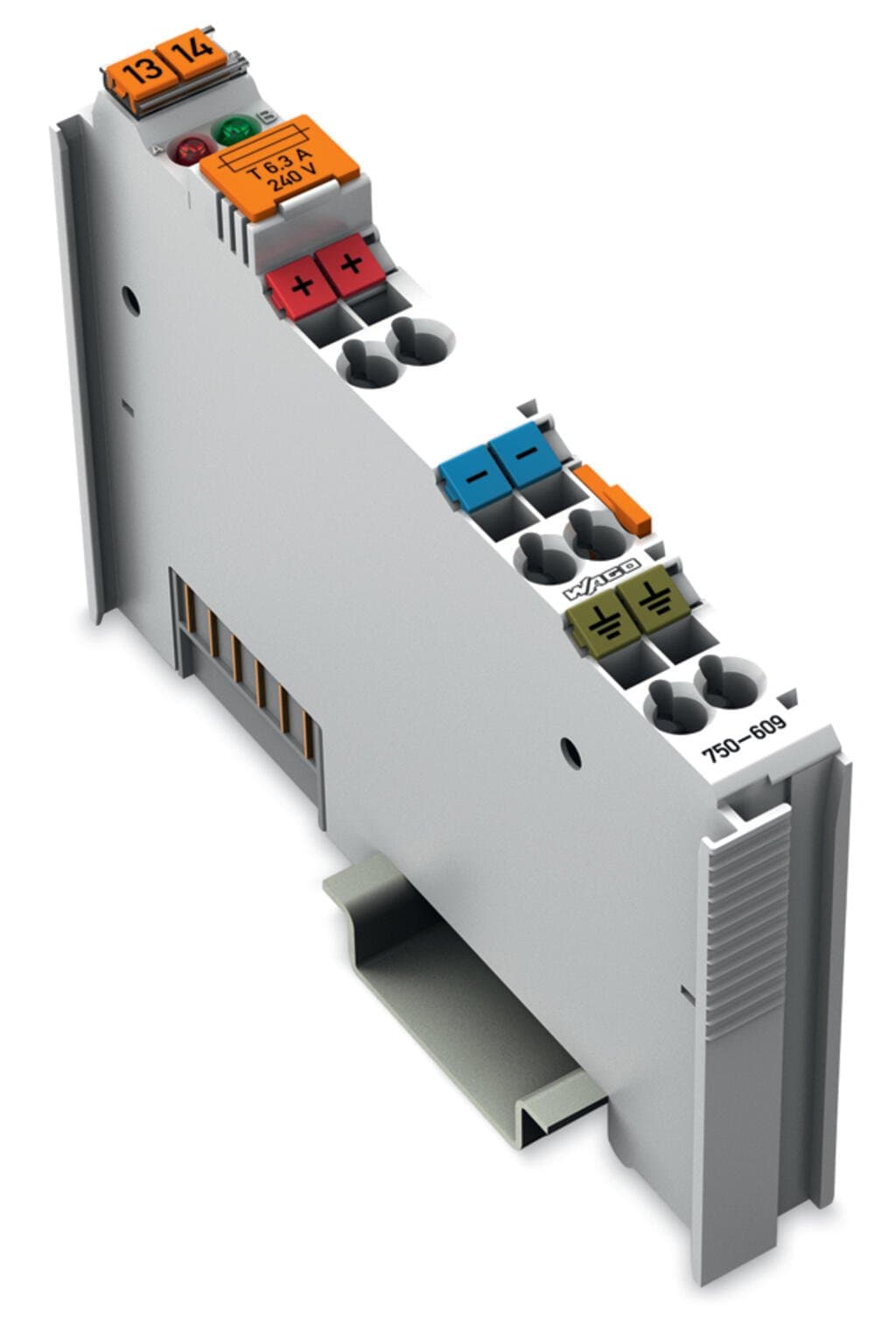

Product Model
750-609
Selling Points
- 1Provides 230 VAC supply voltage with a maximum current of 6.3 A.
- 2Equipped with a fuse holder (5 x 20 mm) for quick and easy fuse replacement.
- 3Indicators for defective fuse error and power supply status via LEDs.
- 4Compatible with CAGE CLAMP® connections for secure power transmission.
- 5Compact design with dimensions of 12 mm x 100 mm x 69.8 mm, suitable for DIN-35 rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 230 VAC |
Fuse | 5 x 20; T 6.3 A (not included) | Supply voltage (system) | 5 VDC; via data contacts |
Supply voltage (field) | 230 VAC (-15 … +10 %); via power jumper contacts (power supply via CAGE CLAMP?connection; transmission (field-side supply voltage only) via spring contact | Indicators | LED (A) red: defective fuse error; LED (B) green: power supply status |
Number of outgoing power jumper contacts | 3 | Current carrying capacity (power jumper contacts) | 6.3A |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | Field supply |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69.8 mm / 2.748 inches |
Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.77MJ | Weight | 50g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 8538901000 | CAS-No. | 12060-00-3 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 12465ec8-f5c6-42a0-891f-faf7421d58cc |
SCIP notification number (Belgium) | 2fff11a2-1821-4d54-af5b-3cb8550c259b | SCIP notification number (Bulgaria) | c86912ba-8403-4670-aa7c-306803b75b83 |
SCIP notification number (Czech Republic) | 6b6e2307-b6d7-4d7b-a929-ea0000fe1439 | SCIP notification number (Denmark) | 1c5876c3-2c9e-47b0-8813-1d8b98c5bec3 |
SCIP notification number (Finland) | a70a0621-43f3-4693-a137-8d1962ab10f0 | SCIP notification number (France) | ce97f1b0-7141-4650-8b36-da89a6bb1842 |
SCIP notification number (Germany) | 1983966e-573c-4ca7-8a0f-5ecb27dc27b6 | SCIP notification number (Hungary) | 756bf066-c411-4152-9540-32d690cca61e |
SCIP notification number (Italy) | a3fa28f7-267c-4188-84f9-741f92716eab | SCIP notification number (Netherlands) | 667fe6c6-d378-4712-a3ac-490e6618fb61 |
SCIP notification number (Poland) | 750df874-e9b6-4506-a035-8ae25f29bb93 | SCIP notification number (Romania) | f8312a96-fb4e-404c-892d-94a05603f84b |
SCIP notification number (Sweden) | 1136b977-422b-45da-8511-c742a9d6bc52 |
Specifications may be subject to change without notice
