Product Model

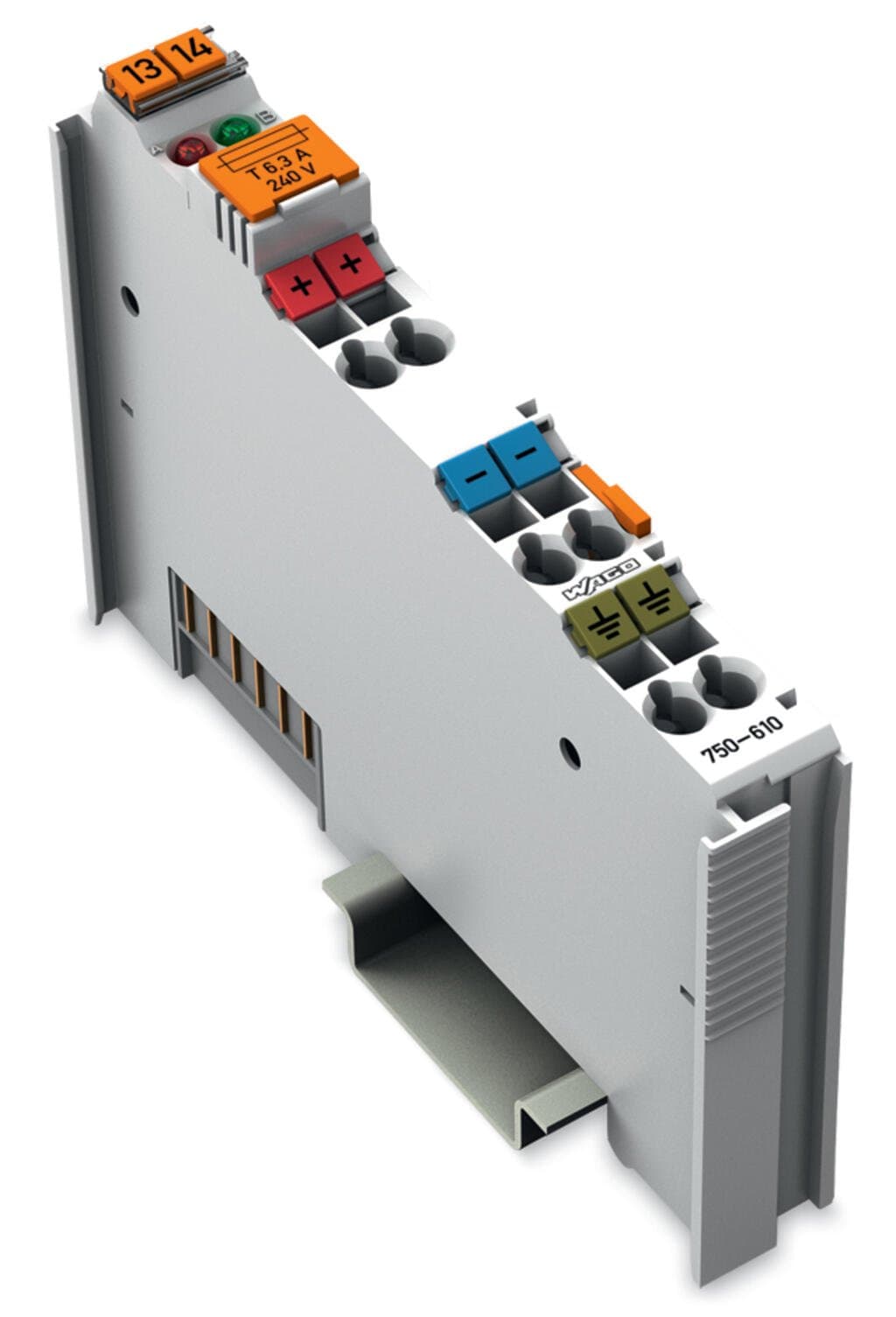

750-610
Selling Points
- 124VDC Power Supply: Provides stable 24VDC output for various industrial applications.
- 2Fuse Holder Included: Ensures safety with a built-in fuse holder for easy replacement.
- 3Diagnostics Capabilities: Offers diagnostic features for monitoring supply voltage and fuse status.
- 4CAGE CLAMP Connection: Utilizes WAGO's CAGE CLAMP technology for secure and efficient connections.
- 5Durable Construction: Built with polycarbonate and polyamide 6.6 housing for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 24?VDC |
Diagnostics | Supply voltage (field): Detection “on” at > 15 VDC; Detection “off” at < 5 VDC | Fuse | 5 x 20; T 6.3 A (not included) |
Data width | 2 bits (1 bit current monitoring, 1 bit fuse fault) | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 5mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP?connection; transmission (field-side supply voltage only) via spring contact |
Indicators | LED (A) red: defective fuse error; LED (B) green: power supply status | Number of outgoing power jumper contacts | 3 |
Current carrying capacity (power jumper contacts) | 6.3A | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection type 1 | Field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.705MJ | Weight | 46.8g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454396145 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | c36715f9-5c40-41b2-adf9-d5957c44da13 | SCIP notification number (Belgium) | 7e462ec9-8afd-4ffc-9932-6854fcd510a6 |
SCIP notification number (Bulgaria) | de728fff-7a8a-4dcd-8891-55bae0a63909 | SCIP notification number (Czech Republic) | 50cc0f06-c64f-4a3e-bf92-7a40111c4ce1 |
SCIP notification number (Denmark) | a7f1d4c1-2846-43c0-bfd9-d82b326af59e | SCIP notification number (Finland) | 44ebb0bc-0a17-4c46-b729-113c8d64ee89 |
SCIP notification number (France) | 74e9db25-dd06-4112-9f35-29e00223c6ba | SCIP notification number (Germany) | dc722b39-d957-4e52-8057-659aa749f781 |
SCIP notification number (Hungary) | 1455ff80-7191-4e7f-925a-63e8343ec057 | SCIP notification number (Italy) | 29a07005-72c3-4ce2-a464-d2090052f491 |
SCIP notification number (Netherlands) | 21bc08b9-1085-414a-8c57-a8f10f34963d | SCIP notification number (Poland) | e57d7b40-2b74-4f28-8f1c-71c9513157b9 |
SCIP notification number (Romania) | 746c698b-617d-4240-9693-6e64d1028b5e | SCIP notification number (Sweden) | 388144aa-fc99-428d-8470-2d262bdfb9a2 |
Specifications may be subject to change without notice
