Product Model

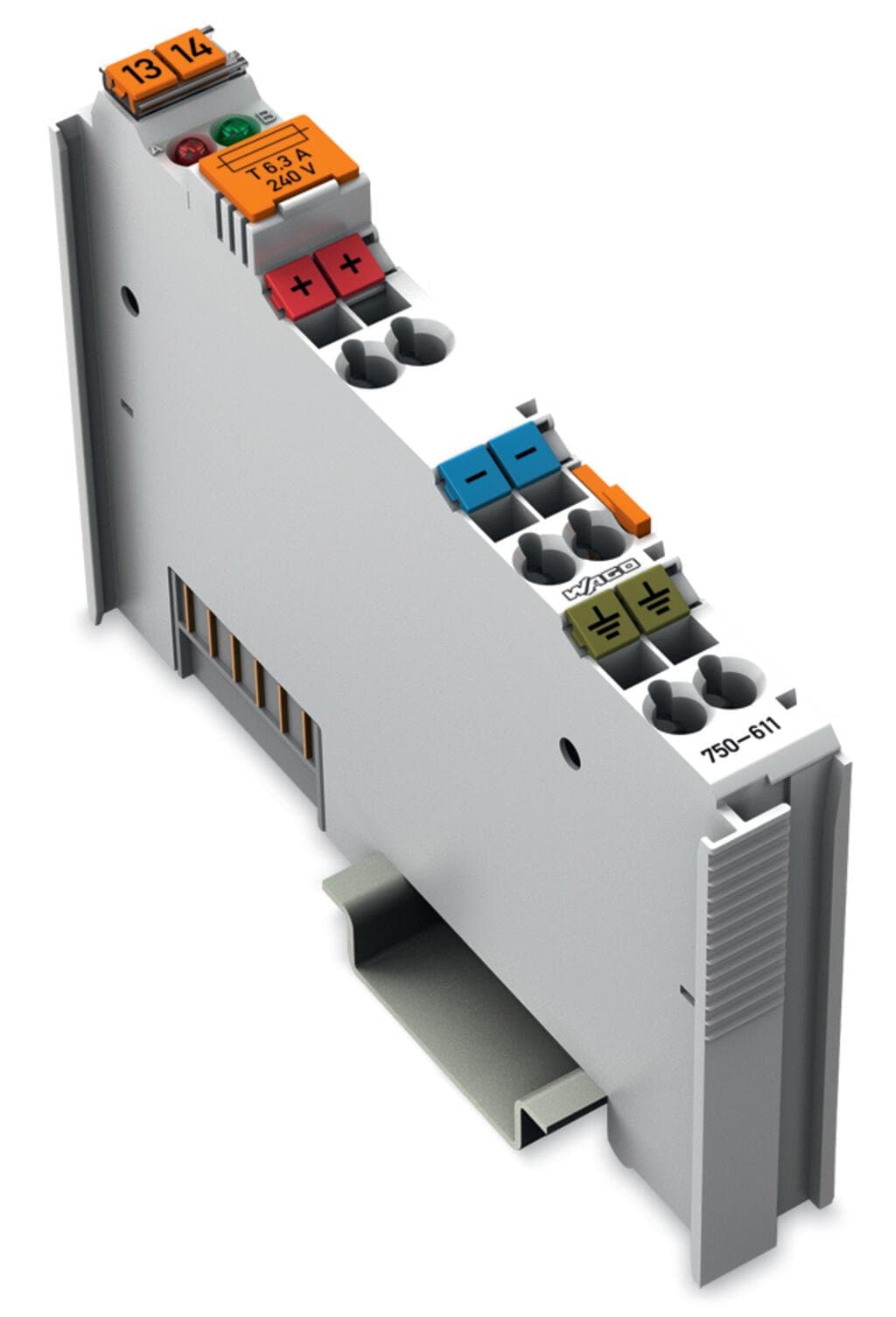

750-611
Selling Points
- 1Reliable 230VAC Power Supply: Ensures stable voltage for critical applications.
- 2Integrated Fuse Holder: Provides additional safety with easy-to-replace fuses.
- 3Advanced Diagnostics: Offers real-time monitoring and fault detection.
- 4CAGE CLAMP Connections: Secure and easy-to-use terminal connections.
- 5Durable Construction: Built with polycarbonate and polyamide 6.6 for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 230 VAC |
Diagnostics | Supply voltage (field): Detection “on” at > 164 VAC; Detection “off” at < 40 VAC | Fuse | 5 x 20; T 6.3 A (not included) |
Data width | 2 bits (1 bit current monitoring, 1 bit fuse fault) | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 5mA | Supply voltage (field) | 230 VAC (-15 … +10 %); via power jumper contacts (power supply via CAGE CLAMP?connection; transmission (field-side supply voltage only) via spring contact |
Indicators | LED (A) red: defective fuse error; LED (B) green: power supply status | Number of outgoing power jumper contacts | 3 |
Current carrying capacity (power jumper contacts) | 6.3A | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection type 1 | Field supply | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69.8 mm / 2.748 inches | Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.53MJ |
Weight | 51g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-10 |
eCl@ss 9.0 | 27-24-26-10 | ETIM 9.0 | EC001600 |
ETIM 8.0 | EC001600 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8538901000 |
CAS-No. | 12060-00-3 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 56ffba6d-ae9e-4607-b201-f74b3b44a2c7 | SCIP notification number (Belgium) | c85590df-c812-47af-ab5e-9a9e90793738 |
SCIP notification number (Bulgaria) | 917ed973-5971-442a-93d5-f292911b99c9 | SCIP notification number (Czech Republic) | 44eceb55-83ac-4345-abac-5bc3707b80a4 |
SCIP notification number (Denmark) | 471eb3ed-c6d1-4757-8683-28f813e9b57f | SCIP notification number (Finland) | d45f86e5-385f-4bdb-9412-537b27c14945 |
SCIP notification number (France) | b8875205-c17a-49d2-bdbb-e291f71f24a5 | SCIP notification number (Germany) | df40e96a-f07c-472f-9ab7-2201aea935d1 |
SCIP notification number (Hungary) | 42d39c25-58d6-4131-9b21-8f903a018e4d | SCIP notification number (Italy) | 679aa572-9900-49ab-9cb1-7ed14cac8db4 |
SCIP notification number (Netherlands) | 89cadbfe-643d-4478-a20f-e101b4e3d8e7 | SCIP notification number (Poland) | ca5cd9f3-6f44-4a7c-980d-66c0270192b3 |
SCIP notification number (Romania) | c976e7f9-2fc9-4d19-9574-013ced3c75eb | SCIP notification number (Sweden) | 90a08982-8600-4c75-a15f-afc10b796ce3 |
Specifications may be subject to change without notice
