Product Model

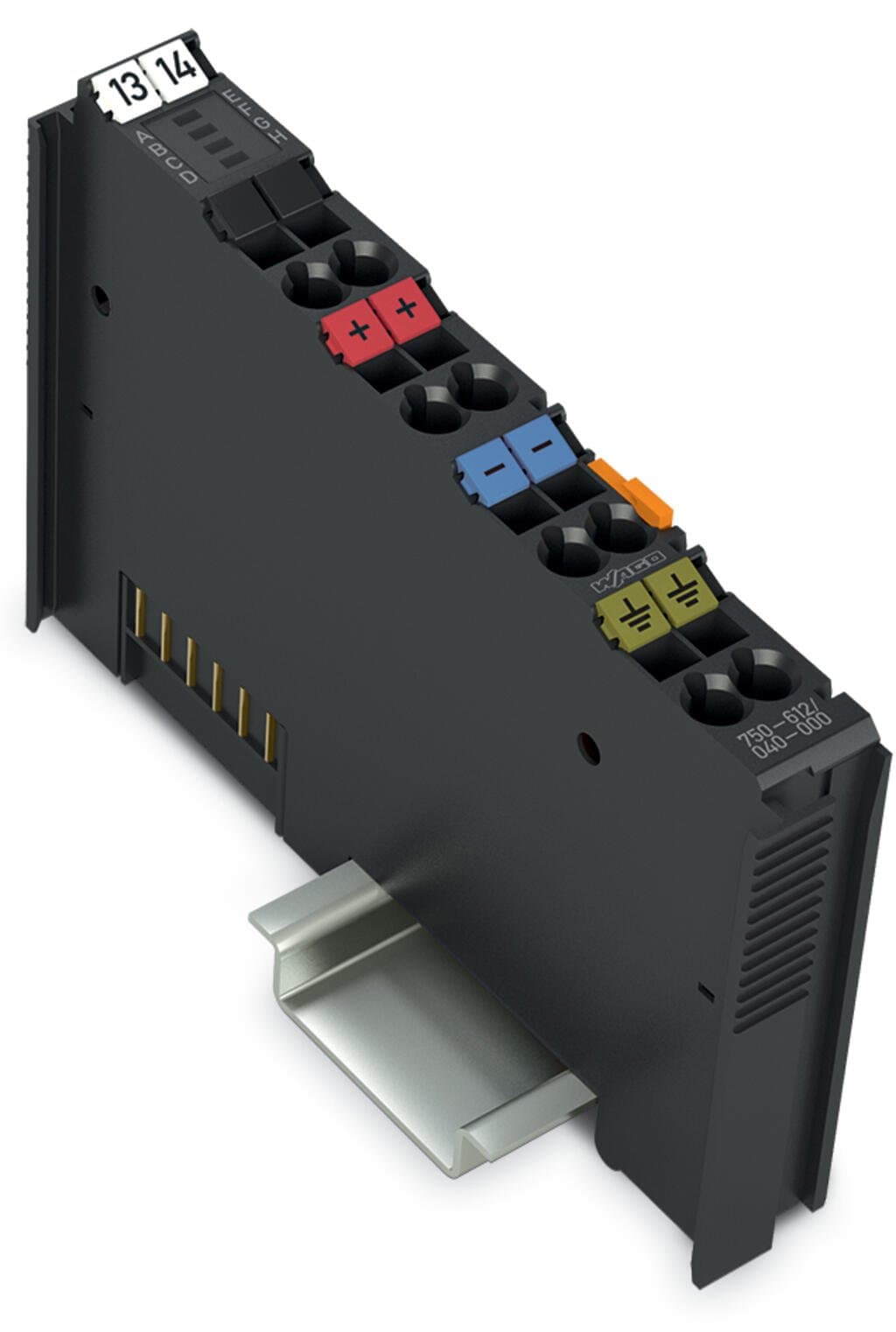

750-612/040-000
Selling Points
- 1High Immunity to Impulse Voltages and Electromagnetic Interference
- 2Greater Vibration and Shock Resistance
- 3Extended Temperature Range (-40°C to +70°C)
- 4Supply Voltage Range (0 … 230 V AC/DC)
- 5Durable Polycarbonate and Polyamide 6.6 Housing
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 0 … 230?VAC/DC |
Supply voltage (system) | 5?VDC;?via data contacts | Supply voltage (field) | 230 VAC/DC (-20 … +25 %); via power jumper contacts (power supply via CAGE CLAMP?connection; transmission (field-side supply voltage only) via spring contact |
Rated surge voltage | 5.0 kV (EN 60870-2-1 / Class VW3); 4.0 kV (UL 508); 6.4 kV (EN 61010-1 to 2000 m); 4.0 kV (EN 61010-1 to 5000 m) | Number of outgoing power jumper contacts | 3 |
Current carrying capacity (power jumper contacts) | 6.3A | Overvoltage category | Nominal voltage 230 V: III (EN 61010-1 / up to 2.000 m); II (EN 61010-1 / up to 5.000 m) |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | Field supply |
Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 67.8?mm?/ 2.669?inches |
Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches | Mounting type | DIN-35 rail |
Color | dark gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.999MJ | Weight | 43.5g |
Conformity marking | CE | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 (EN 61010-1) | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) | Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 |
Shock resistance | per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 | EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-10 |
eCl@ss 9.0 | 27-24-26-10 | ETIM 9.0 | EC001600 |
ETIM 8.0 | EC001600 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821460251 |
Customs tariff number | 8538901000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Bulgaria) | 7c42ffd1-ebbc-4ab7-8cd1-bd308be5ee10 |
SCIP notification number (Czech Republic) | 614f4b43-987f-4737-b1f6-49f6777ca84a |
Specifications may be subject to change without notice
