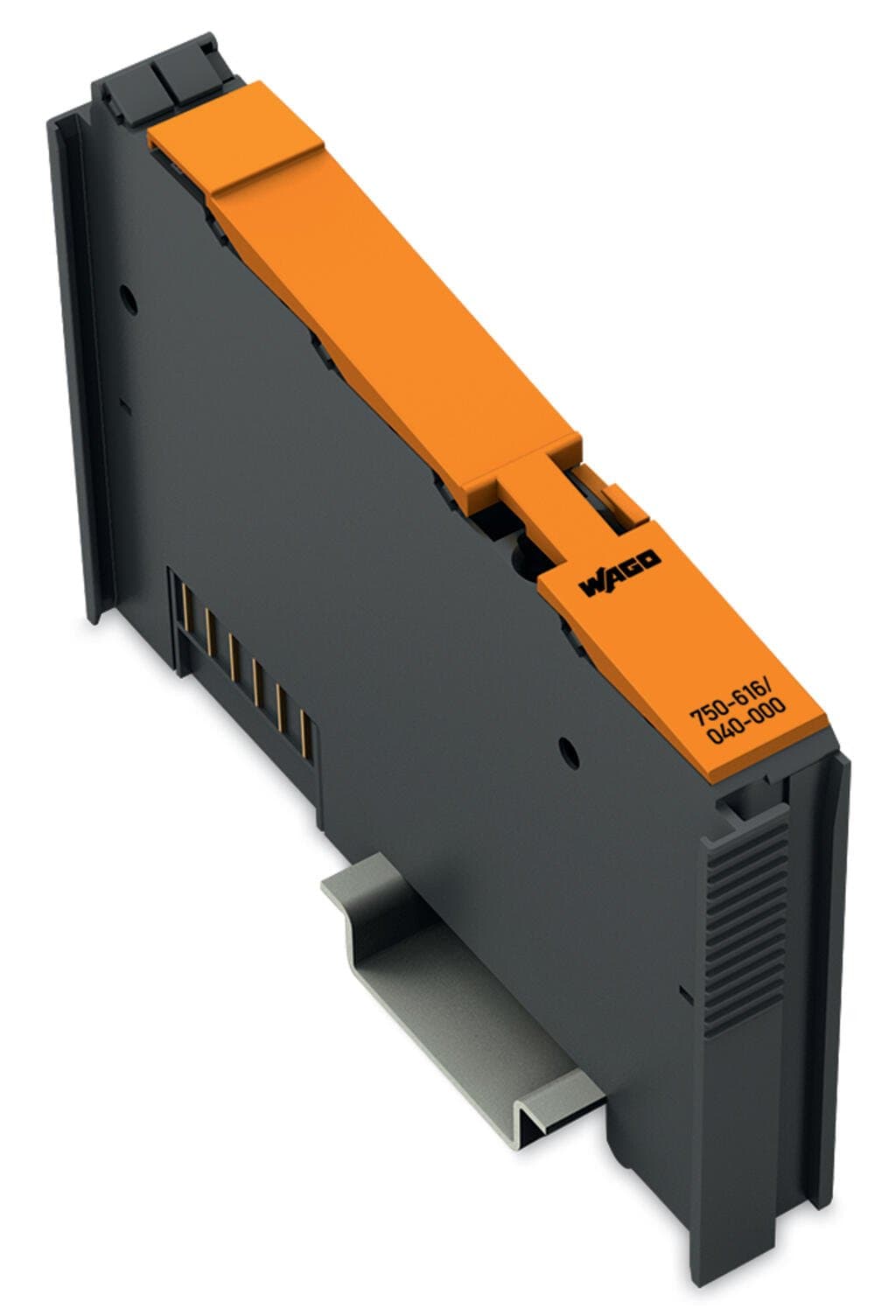

Product Model
750-616/040-000
Selling Points
- 1Ideal for extreme environments with an extended temperature range (-40°C to +70°C).
- 2Enhanced immunity to impulse voltages and electromagnetic interference.
- 3Higher vibration and shock resistance for reliable operation.
- 4Mounted on DIN-35 rail with a width of 12 mm, suitable for various mounting positions.
- 5Compliant with IP20 protection rating and CE marking for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Supply voltage (system) | 5?VDC;?via data contacts | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Color | dark gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.969MJ | Weight | 34.5g |
Conformity marking | CE | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) | Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 |
Shock resistance | per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 | EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143315685 | Customs tariff number | 8538901000 |
REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 200b38e6-9c66-4a4d-a8a9-2d077bcc2899 | SCIP notification number (Belgium) | bfb03bc1-bf23-4b57-9b60-f712fb4d4234 |
SCIP notification number (Bulgaria) | 122a46b2-da4f-4d81-b53c-3dd2d4cba048 | SCIP notification number (Czech Republic) | b928f438-03c5-4e1c-af52-072ad7e0f7ee |
SCIP notification number (Denmark) | 809a669f-3364-44bf-9e68-fffe3c7f0b1c | SCIP notification number (Finland) | 6310e701-5c5a-4a92-a555-8ab306846eb7 |
SCIP notification number (France) | ce227ee1-19af-4020-a3db-c4512e70eecb | SCIP notification number (Germany) | 2d7239df-8a1b-4f8a-a93c-10211b02f0d8 |
SCIP notification number (Hungary) | 73aa4312-7ee5-4d24-a2cd-3092c739e4a0 | SCIP notification number (Italy) | be7f515f-5042-48a9-b9dc-98f8f0a03da1 |
SCIP notification number (Netherlands) | 13c230ec-a570-499c-91f1-4cf61c2147d5 | SCIP notification number (Poland) | 02d68f15-dd6c-4a59-ab92-1626cf4cba0c |
SCIP notification number (Romania) | f9ac9f97-2a44-412a-a775-b70b948f313f | SCIP notification number (Sweden) | b0004e2a-9aa4-46d9-987d-4a646415696a |
Specifications may be subject to change without notice
