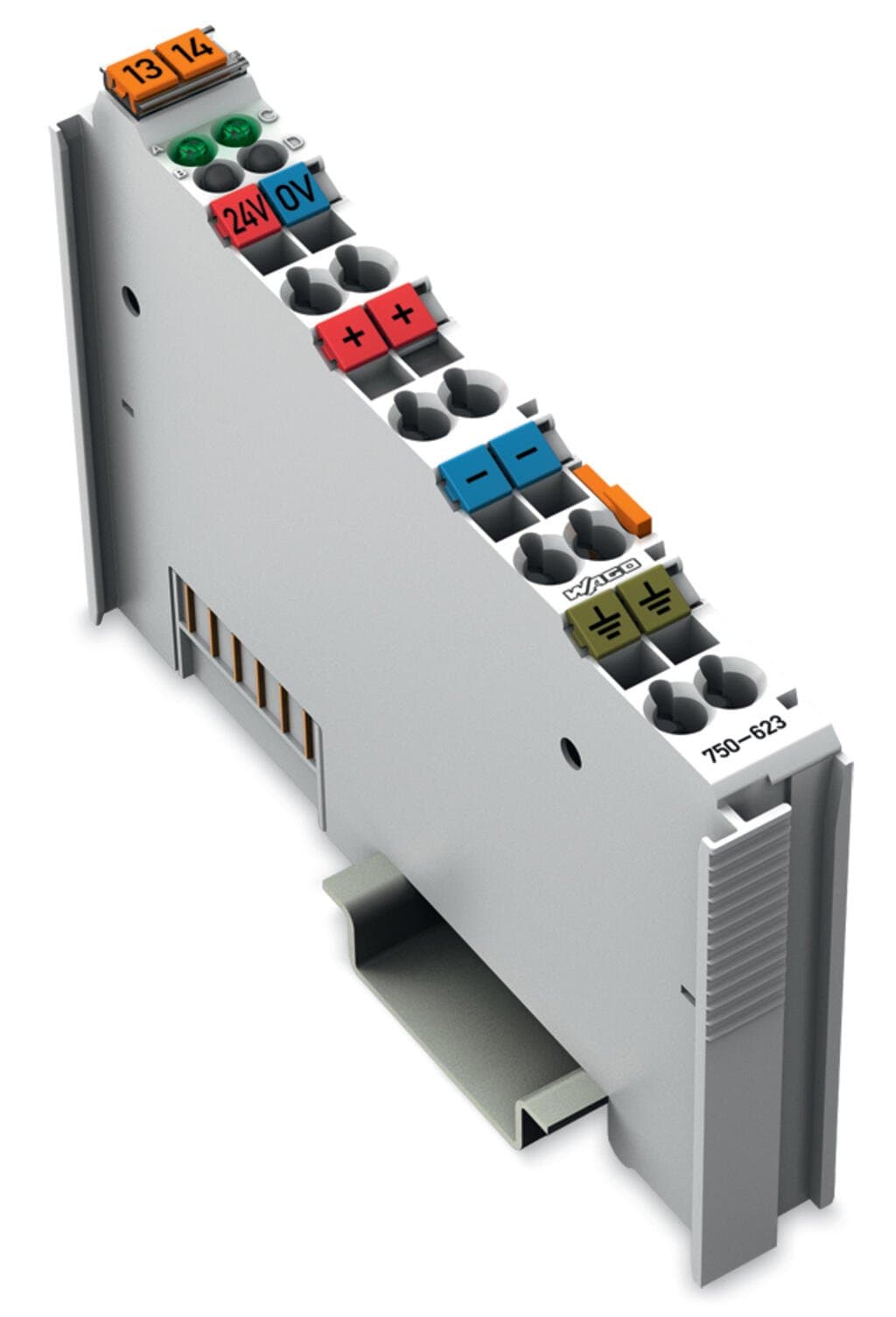

Product Model
750-623
Selling Points
- 1Reliable Connectivity: Ensures stable communication in harsh industrial environments.
- 2Robust Design: Built to withstand demanding conditions with durable materials.
- 3Advanced Features: Supports multiple interfaces including CAN, Ethernet, and serial.
- 4Easy Installation: Simplified setup with universal mounting systems and VESA mount compatibility.
- 5High Performance: Optimized for fast data transfer and efficient system operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 24?VDC |
Output current | 0.5?A (1?A at 5?V) | Output voltage | 5, 8, 10, 12, 15 VDC |
Supply voltage (system) | 5?VDC;?via data contacts | Total current (system supply) | 500mA |
Supply voltage (field) | 24?VDC?(-15 … +20?%);?via power jumper contacts (power supply via CAGE CLAMP?connection; transmission via spring contact); Output voltage adjustable in steps via DIP switch: 5 V; 8 V; 10 V; 12 V; 15 V | Indicators | LED (A, C) green: status indicator for input voltage, output voltage |
Number of outgoing power jumper contacts | 3 | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection type 1 | Field supply |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.039MJ | Weight | 53.8g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332395793 | Customs tariff number | 8538901000 |
CAS-No. | 25550-51-0 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 6856dbab-8285-41f4-b6e1-dc04e601fc77 |
SCIP notification number (Belgium) | 216a7fd3-619c-48da-9988-deca8c62090c | SCIP notification number (Bulgaria) | 01fd1c2a-041a-49e5-b787-067d3452b99d |
SCIP notification number (Czech Republic) | d595f5c9-09c6-48fb-8340-a1d4d0de5525 | SCIP notification number (Denmark) | 99454828-bd86-4fdb-b2e5-0330e3fa719b |
SCIP notification number (Finland) | f32b639e-f949-454e-b66f-58df7d08b826 | SCIP notification number (France) | b137ecc3-e12f-465a-8a48-142e55ce7859 |
SCIP notification number (Germany) | 5389df28-2f80-4c58-8b48-b5ff5433fe0b | SCIP notification number (Hungary) | 3f236cdc-0128-491b-a2f7-442ca40d68b1 |
SCIP notification number (Italy) | 226208a6-a0e3-438c-8238-a5f3f64a3937 | SCIP notification number (Netherlands) | ae65f677-eb60-4220-bcb9-057b0ae082d3 |
SCIP notification number (Poland) | 8f28328e-085f-4f8b-b0b3-883ce3fc05ed | SCIP notification number (Romania) | a3411f74-8b5b-4327-b400-738f987a6565 |
SCIP notification number (Sweden) | d36c4783-e0b2-488b-b4e8-c9a0670918e1 |
Specifications may be subject to change without notice
