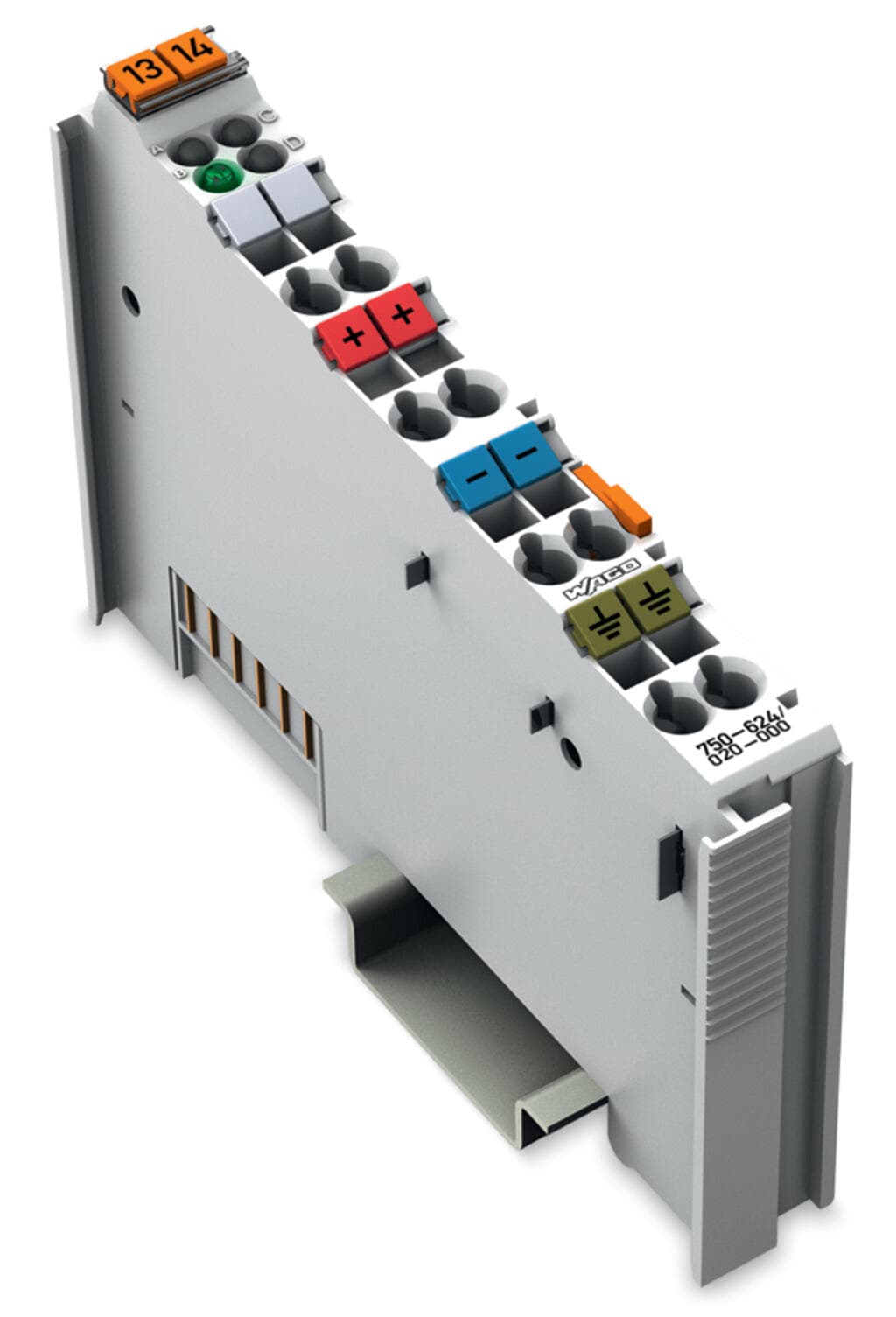

Product Model
750-624/020-000
Selling Points
- 1High Isolation Surge Protection: Designed to protect against surges and spikes in field-side power supplies.
- 224Vdc Operation: Compatible with 24Vdc supply voltage, ideal for various industrial applications.
- 310A Rated Current: Handles up to 10A of current, ensuring reliable operation in demanding environments.
- 4Push-in Spring Cage-Clamp Connections: Secure and easy-to-use wiring connections for efficient installation.
- 5DIN-35 Rail Mounting: Compact design fits perfectly on DIN-35 rails, saving space in control panels.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 24?VDC |
Supply voltage (system) | 5?VDC;?via data contacts | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Indicators | LED (C) green: operating voltage status: power jumper contacts | Number of incoming power jumper contacts | 3 |
Number of outgoing power jumper contacts | 3 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | Field supply |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.043MJ |
Weight | 46g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-10 |
eCl@ss 9.0 | 27-24-26-10 | ETIM 9.0 | EC001600 |
ETIM 8.0 | EC001600 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821207283 |
Customs tariff number | 8538901000 | CAS-No. | 1317-36-8 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 1a1aaca9-237b-467a-a49e-9833486b288d |
SCIP notification number (Belgium) | 2e5dc62a-0cfe-4f87-a3d0-7c6aea2fe114 | SCIP notification number (Bulgaria) | 1fc920df-9a3d-4ab2-892e-d3d932d929cb |
SCIP notification number (Czech Republic) | 832c0878-efbc-4bfc-9176-6c1f8c525c06 | SCIP notification number (Denmark) | 1385d7df-e9ee-4cd3-8688-e467aeea5683 |
SCIP notification number (Finland) | dbf56ad4-9bec-4850-8a80-e3b76400d1ec | SCIP notification number (France) | 0d6c59cc-a2f1-462c-af52-d357d10d3754 |
SCIP notification number (Germany) | e940aff4-d841-406d-ad02-f959addcdac9 | SCIP notification number (Hungary) | d0a313d5-da21-4444-92d8-9da5894aeb54 |
SCIP notification number (Italy) | ad0b1cc0-76e2-495c-92ee-c56b0ff9f5bd | SCIP notification number (Netherlands) | 68c7c3b9-d293-4aa2-b94c-41ebef26e748 |
SCIP notification number (Poland) | 65fe37b6-c6df-43b8-ab6b-fbbcd42d71e6 | SCIP notification number (Romania) | 3c463e62-15e8-4dda-b123-cca572e695b3 |
SCIP notification number (Sweden) | 65b8efc8-c227-41bd-95b1-15a510b5793c |
Specifications may be subject to change without notice
