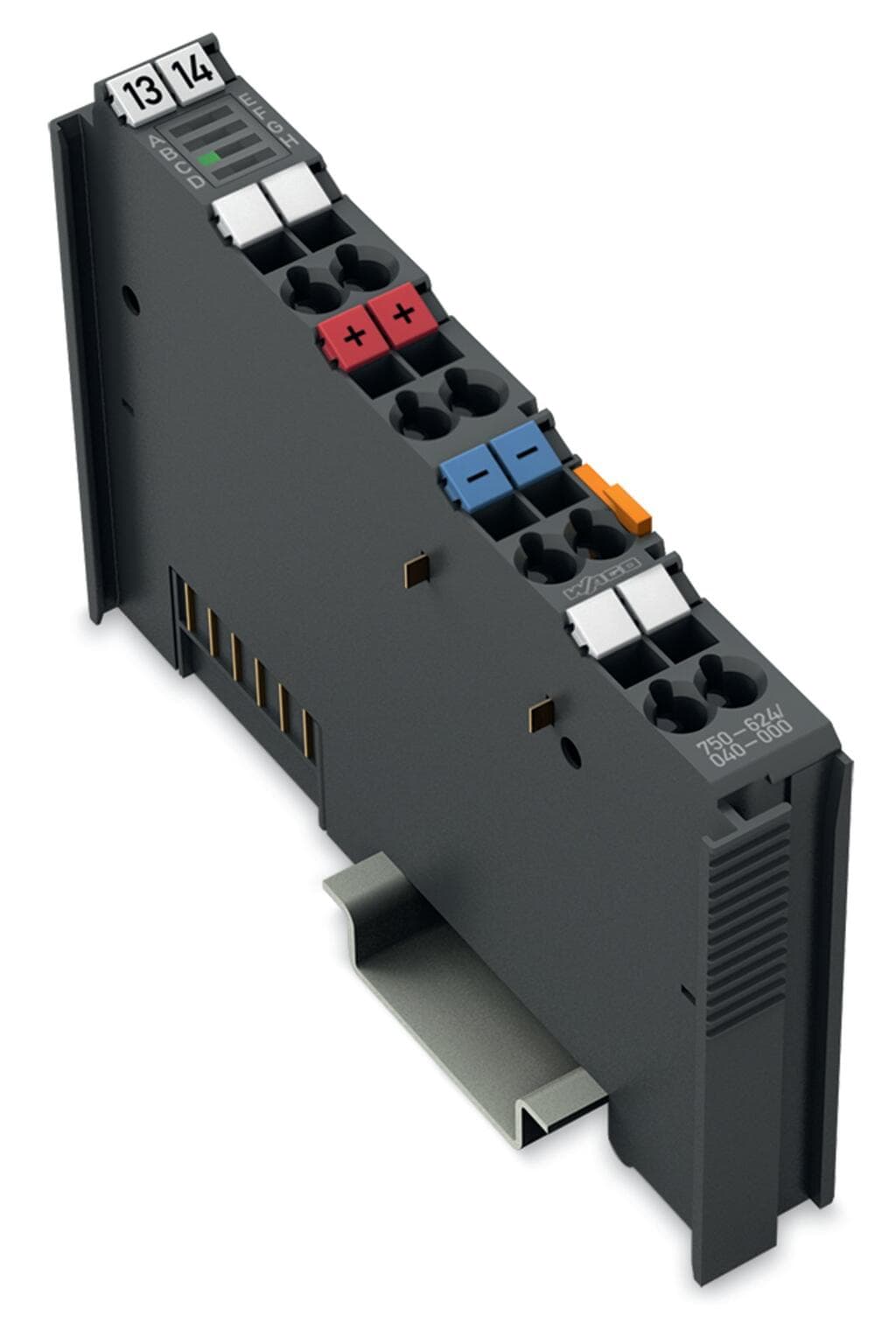

Product Model
750-624/040-000
Selling Points
- 1Operates from -40°C to +70°C, ensuring stability in various conditions.
- 2Provides higher isolation for secure and reliable power supply.
- 3Rated for 1 kV surge voltage, safeguarding against electrical spikes.
- 4Made from polycarbonate and polyamide 6.6, offering high fire load resistance and durability.
- 5Compatible with DIN-35 rail mounting, allowing for easy installation in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 24?VDC |
Supply voltage (system) | 5?VDC;?via data contacts | Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed! |
Rated surge voltage | 1?kV | Indicators | LED (C) green: operating voltage status: power jumper contacts |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (?25 … +30°%);for ?40 … +55°°C: 24°V (?25 … +20°%);for +55 … +70°°C: 24°V (?25 … +10°%);Lower limit in all temperature ranges: ?27.5°% (including 15°% residual ripple) |
Connection technology: field supply | 4 x CAGE CLAMP? | Connection type 1 | Field supply |
Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 67.8?mm?/ 2.669?inches |
Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches | Mounting type | DIN-35 rail |
Color | dark gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.958MJ | Weight | 46.6g |
Conformity marking | CE | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) | Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 |
Shock resistance | per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 | EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143673563 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 62e47fb4-9223-4b2c-8bab-e3744eeee737 | SCIP notification number (Belgium) | 97327366-1cf5-4c4e-8302-945ff8eef5fa |
SCIP notification number (Bulgaria) | d63458f8-ce81-42ec-a3bd-e26eb2828d33 | SCIP notification number (Czech Republic) | 1de2db22-f463-4930-9329-d88533ea3f9b |
SCIP notification number (Denmark) | 49bea55f-a7d3-4bb3-90c7-54f7a18cd299 | SCIP notification number (Finland) | 8430f996-6f12-45db-999b-1d22eace0999 |
SCIP notification number (France) | 7b1e8d1f-1058-4e80-9f13-58c7f8b7a80e | SCIP notification number (Germany) | f920254b-c5c7-485f-9bcb-c581a4256c25 |
SCIP notification number (Hungary) | 67be5329-b92f-4951-9eb5-abf4dfdec9dd | SCIP notification number (Italy) | a3c55f80-4ce5-49a0-91f4-d8ebe060bf4f |
SCIP notification number (Netherlands) | 5c315479-5a1b-47eb-9ac8-7f37c79f1c4f | SCIP notification number (Poland) | 04497b2e-c4bc-4842-8296-2edd39e0c58f |
SCIP notification number (Romania) | 7ba00f46-776a-439f-b3f8-1e848a2494f5 | SCIP notification number (Sweden) | 16889b1f-20c8-4e4e-a80c-2a2084607b52 |
Specifications may be subject to change without notice
