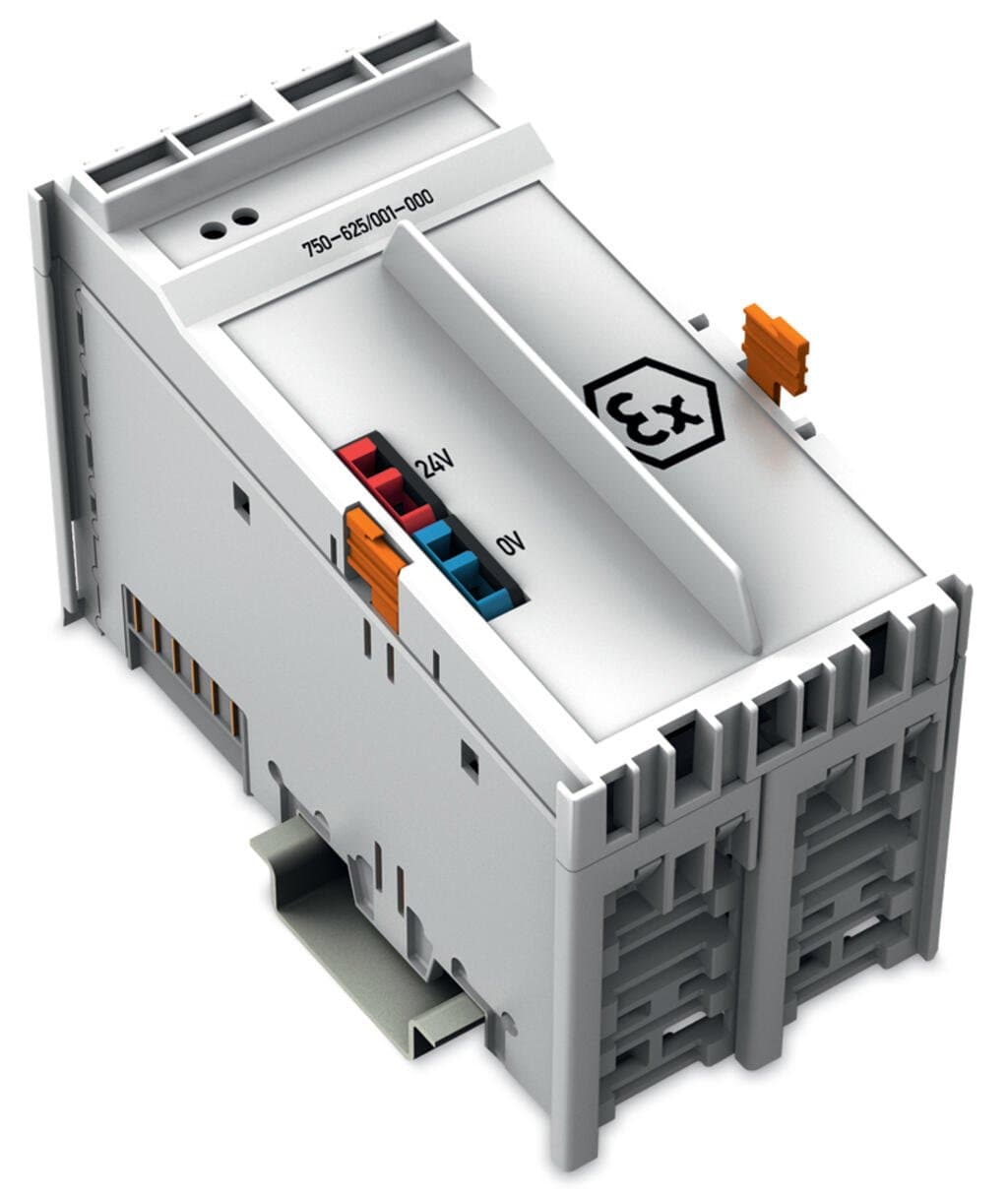

Product Model
750-625/000-001
Selling Points
- 1Ensures safe operation in hazardous environments.
- 2Provides stable and reliable power for your automation systems.
- 3Built with high-quality materials for long-lasting performance.
- 4Convenient and cost-effective shipping option.
- 5Designed to meet the stringent requirements of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals! | Input voltage (note) | 24 VDC (?25 % … +30 %) |
Fuse | electronic | Power consumption P<sub>max.</sub> | 29 W |
Intrinsically safe Ex i | yes | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 7.5mA | Supply voltage (field) | 24 VDC (-25 … +30 %); (Adjacent Ex i modules are supplied with Uo= max. 27.3 V); via power jumper contacts (power supply via CAGE CLAMP?connection; transmission via spring contact) |
Supply voltage | 24?VDC;?(-25 % … +30 %); input voltage | Power loss P<sub>l</sub> | < 5 W |
Indicators | LED (A) green: operating voltage status: input; LED (B) green/red: operating voltage status: output | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 1A | Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I |
Ex standard | EN IEC 60079-0, -7, -11 | Power supply (output) | Uo= 26.8 V (safe voltage per IEC 60079-11, protection level ia); Un= 24 V ± 0.3 V, In= 1 A |
Power supply (input) | Un= 24 VDC (?25 % … +30 %); Pmax.= 29 W; Um= 253 V | Connection technology: field supply | 2 x CAGE CLAMP? |
Connection type 1 | Field supply | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Note (conductor cross-section) | 14 AWG: THHN, THWN | Width | 48?mm?/ 1.89?inches |
Height | 100?mm?/ 3.937?inches | Depth | 70.9?mm?/ 2.791?inches |
Depth from upper-edge of DIN-rail | 63.7?mm?/ 2.508?inches | Mounting type | DIN-35 rail |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 2.599MJ |
Weight | 167g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-10 |
eCl@ss 9.0 | 27-24-26-10 | ETIM 9.0 | EC001600 |
ETIM 8.0 | EC001600 | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454971564 | Customs tariff number | 8538901000 |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Bulgaria) | cbe560d0-a0b7-42f7-8844-dfddb93ad32e |
SCIP notification number (Czech Republic) | 72535edf-73da-48ed-bbf9-19d23d334ea0 | Order text | Power Supply; 24 VDC |
ECCN | NO US CLASSIFICATION |
Specifications may be subject to change without notice
