Product Model

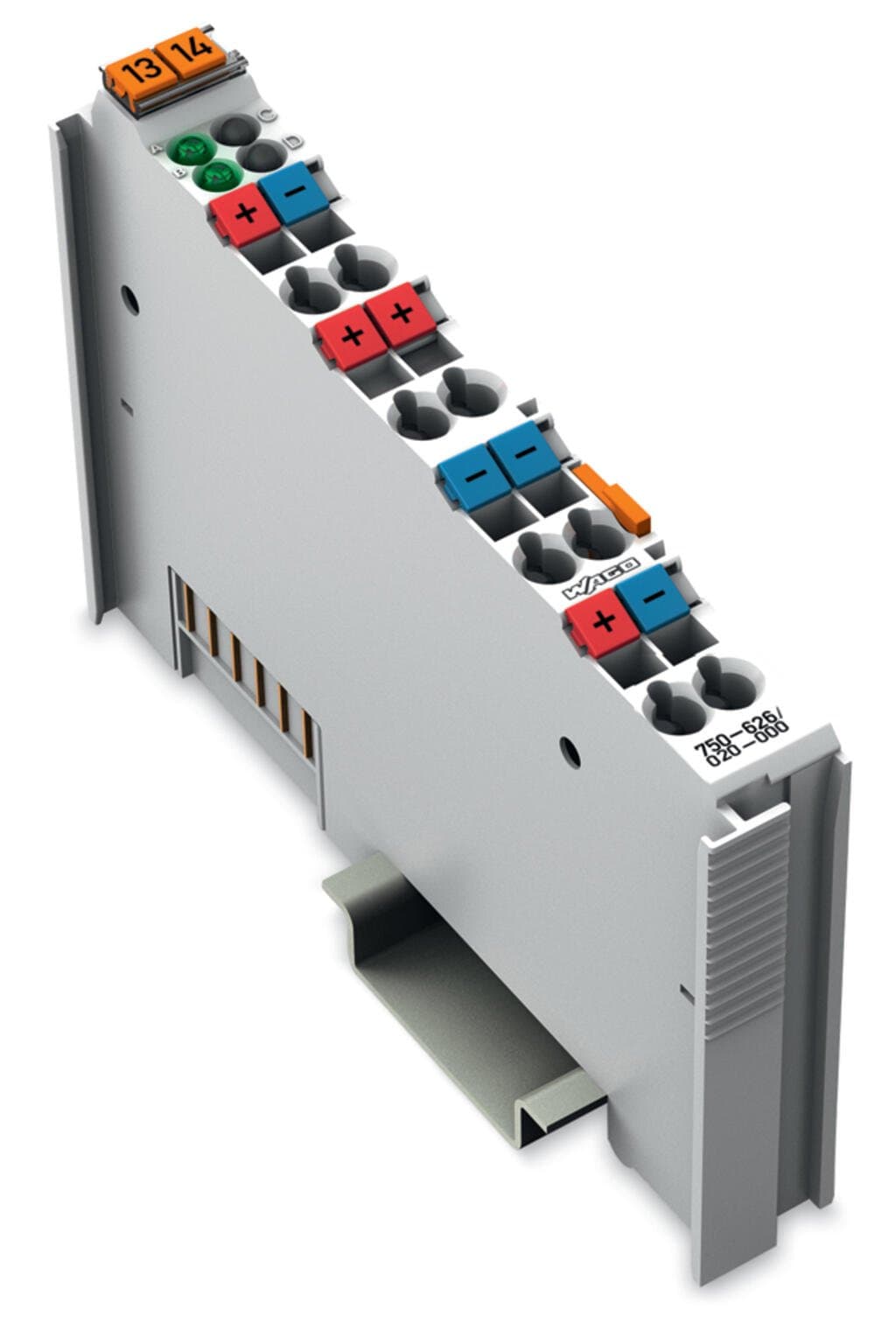

750-626/020-000
Selling Points
- 1High isolation for 24VDC supply voltage.
- 2Ground fault diagnostic for enhanced safety.
- 3Push-in spring CAGE CLAMP connections for secure wiring.
- 4Compact 12mm width for DIN-35 rail mounting.
- 5IP20 protection rating for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 24?VDC |
Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP?connection; transmission (field-side supply voltage only) via spring contact |
Indicators | LED (A, B) green: operating voltage status: system, power jumper contacts | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Current via system voltage (max.) | 1.5 A (1 A up to hardware version 04) |
Connection technology: field supply | 4 x CAGE CLAMP? | Connection technology: system supply | 4 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.055MJ | Weight | 49.4g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821112440 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 1cf94fcd-bc78-4aec-b284-9c2f0258f1f1 | SCIP notification number (Belgium) | 8eec1dc9-bc59-4e93-8ce2-b8d514a976fa |
SCIP notification number (Bulgaria) | 930d8197-df91-4a77-8755-c564ebb2cc7a | SCIP notification number (Czech Republic) | 365e8775-12c2-40bd-ae17-426286de98eb |
SCIP notification number (Denmark) | 8218b100-8668-4a24-9b08-9fd64a02a373 | SCIP notification number (Finland) | b7d3542e-15e2-46ee-a59f-69dcb16fab4c |
SCIP notification number (France) | bbfc94f8-c49e-4cdc-aa64-7df2d60dc8b0 | SCIP notification number (Germany) | ecbe7cf5-102d-4b21-8d72-eaa4374ca03e |
SCIP notification number (Hungary) | 6f9fa80b-bd9c-47f4-9771-d47f15df8090 | SCIP notification number (Italy) | ffa3a418-ba51-47fc-8cb6-3798e0d7a271 |
SCIP notification number (Netherlands) | 949f8731-e9b4-4d59-8641-c6607a0af3b3 | SCIP notification number (Poland) | e6745fa3-4112-4953-ac20-c307cab9b0d5 |
SCIP notification number (Romania) | ebf7c9c3-99da-416a-aa79-04999d0d5cd5 | SCIP notification number (Sweden) | 83eb7a98-5339-4350-b3ef-2a76c4d56389 |
Specifications may be subject to change without notice
