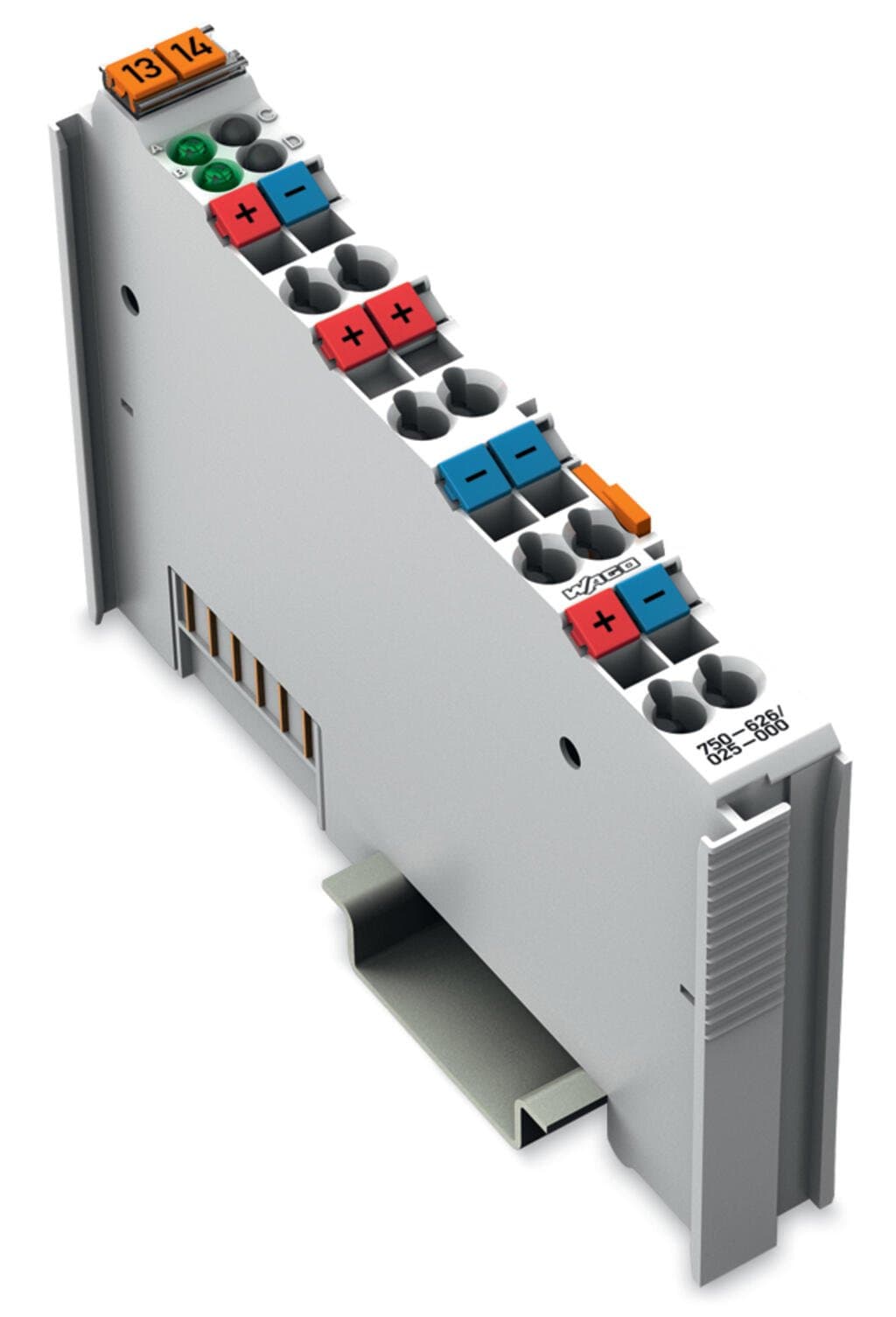

Product Model
750-626/025-000
Selling Points
- 1Operates between -20°C and +60°C.
- 2Supports up to 10A of current.
- 3Made with polycarbonate and polyamide 6.6 housing.
- 4Ensures reliable operation in harsh environments.
- 5Certified for marine applications and meets various industrial standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 24?VDC |
Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP?connection; transmission (field-side supply voltage only) via spring contact |
Indicators | LED (A, B) green: operating voltage status: system, power jumper contacts | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Current via system voltage (max.) | 1.5 A (1 A up to hardware 04) |
Connection technology: field supply | 4 x CAGE CLAMP? | Connection technology: system supply | 4 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.039MJ |
Weight | 50.6g | Conformity marking | CE |
Ambient temperature (operation) | -20 … +60 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of ?20 ?to +60 °C (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821388517 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | e6fd8573-3b7a-4f36-a8b5-136d60718724 | SCIP notification number (Belgium) | 01be08d6-043a-4586-9824-2aefc7bc9e40 |
SCIP notification number (Bulgaria) | 7b3dec9f-500b-49c9-822f-969bf5034032 | SCIP notification number (Czech Republic) | 8e730349-54ab-4b3b-ae6f-3c2ad7b4bfd0 |
SCIP notification number (Denmark) | 58c0fad2-80b9-4404-ae18-cadac77c043c | SCIP notification number (Finland) | 70b8776b-7cad-4f8a-ae1b-52f638e5ff9a |
SCIP notification number (France) | 4f6ad03a-5e94-433b-9aa4-f7900324f92a | SCIP notification number (Germany) | 59939bf1-d4ed-48b6-b4b4-6d3824234118 |
SCIP notification number (Hungary) | 9d47b176-fbb0-4930-9f8d-50ceb1608037 | SCIP notification number (Italy) | f92deb57-c832-489d-95d5-081b8cb934dd |
SCIP notification number (Netherlands) | e0dac868-2699-45ec-b43a-3fee61e82a93 | SCIP notification number (Poland) | c691b10b-415f-4088-9176-826c2d850cc4 |
SCIP notification number (Romania) | eeb245d0-304c-4056-b484-c0ed4a53dc9f | SCIP notification number (Sweden) | 041d9513-0ba6-4f14-ab91-c51566f92f62 |
Specifications may be subject to change without notice
