Product Model

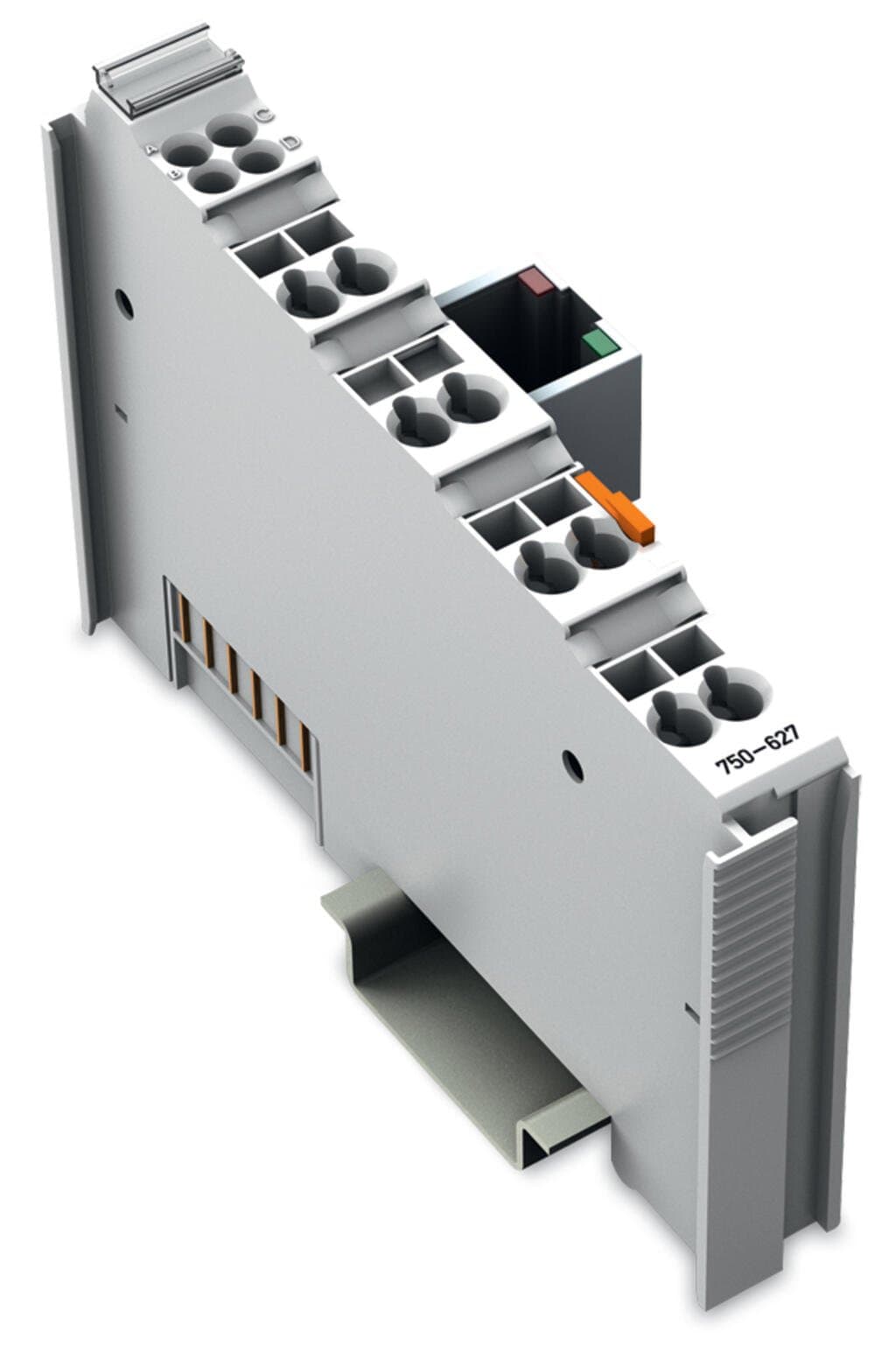

750-627
Selling Points
- 1The 750-627 End Module ensures all functions of the I/O module system are retained without any changes, providing a seamless extension.
- 2Equipped with RJ-45 sockets, it offers reliable and efficient communication with the fieldbus coupler/controller.
- 3Compatible with the 750-628 Coupler Module, allowing for up to 10 coupler modules in the system, extending your automation setup.
- 4Use the WAGO Extension Setting Software for registration and configuration, ensuring safe operating conditions.
- 5Constructed from polycarbonate and polyamide 6.6, with a CE conformity marking, ensuring high reliability and compliance with industrial standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device-specific | Number of coupler modules: up to 10; Distance (max.): 5 m (10 m see manual); (end/coupler modules or coupler/coupler modules) | Transmission medium | Shielded copper cable (ETHERNET patch cable); 4 x 2 x 0.25 mm2, twisted pair, double shielding, STP (Shielded Twisted-Pair) |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 70mA |
Isolation | 500?V system/field | Connection technology: communication/fieldbus | Local bus:?1 x RJ-45 |
Width | 24?mm?/ 0.945?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.085MJ |
Weight | 45.2g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-10 |
eCl@ss 9.0 | 27-24-26-10 | ETIM 9.0 | EC001600 |
ETIM 8.0 | EC001600 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454901264 |
Customs tariff number | 8538901000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 8149c532-55f7-49e7-9f97-cc9cf812962d | SCIP notification number (Belgium) | e0f3a44d-f303-4dbe-ab26-cd25f493d473 |
SCIP notification number (Bulgaria) | 4ca4a994-963b-4986-972e-ba1d6c8358a2 | SCIP notification number (Czech Republic) | 9db7f74c-9010-42ab-8890-fc6af00e0648 |
SCIP notification number (Denmark) | ceaa8893-d287-4be6-974a-07fe6b3f2580 | SCIP notification number (Finland) | 5f33f27a-1713-4e6e-8280-ef8f4a1c23e5 |
SCIP notification number (France) | 01e90e5f-6f80-4c52-8d1e-f007f1b97f61 | SCIP notification number (Germany) | 72e1ce76-659d-41cc-bea9-0e3006c34fa5 |
SCIP notification number (Hungary) | fbea2422-0dee-4d49-bcd3-a3f94d97f3d1 | SCIP notification number (Italy) | 0f5ccf10-3df8-4627-8b61-fefd13337f63 |
SCIP notification number (Netherlands) | 72615227-ca95-4f5a-b3a7-8bd0195191e2 | SCIP notification number (Poland) | b9a31607-c3d5-4a13-965a-480e96dd4fcd |
SCIP notification number (Romania) | c3e33898-4a31-4284-a356-464b66f2d72d | SCIP notification number (Sweden) | b50c3ca1-c5fe-4266-8bf2-e76de20c503f |
Specifications may be subject to change without notice
