Product Model

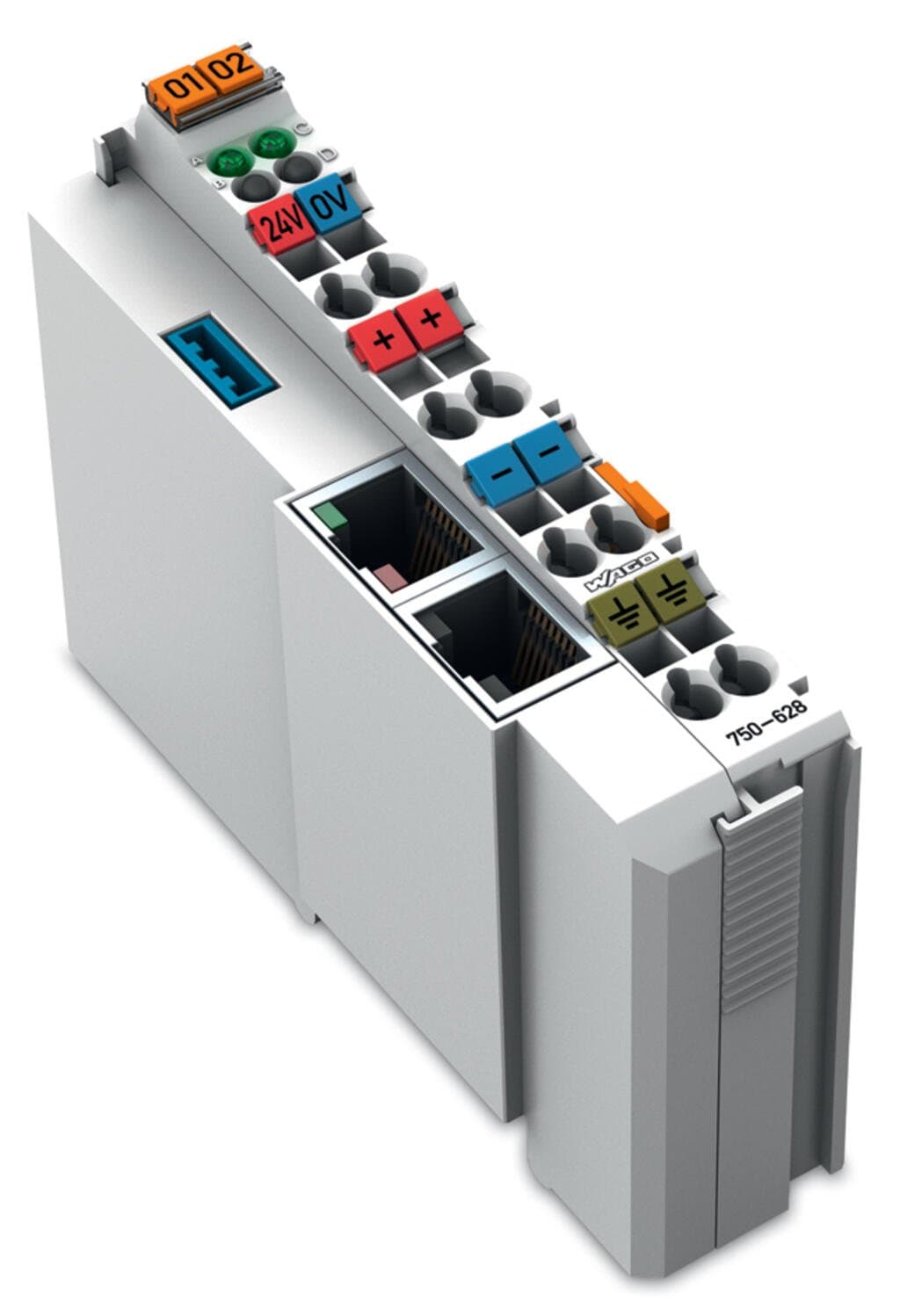

750-628
Selling Points
- 1Robust Data Transmission: Reliable RJ-45 connections ensure stable data transfer.
- 2DIN Rail Mounting: Easy installation on DIN-35 rail for efficient system integration.
- 3IP20 Protection: Rugged IP20 rating for protection against dust and water.
- 4Wide Operating Range: Operates within 0°C to +55°C ambient temperature range.
- 5Versatile Connectivity: Supports 2 x RJ-45 and 6 x CAGE CLAMP connections for flexible setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device-specific | Distance (max.): 5 m (10 m see manual); (end/coupler modules or coupler/coupler modules) | Transmission medium | Shielded copper cable (ETHERNET patch cable); 4 x 2 x 0.25 mm2, twisted pair, double shielding, STP (Shielded Twisted-Pair) |
Number of modules per node (max.) | 64 | Supply voltage (system) | 24?VDC (-15 … +20?%);?via pluggable connector (CAGE CLAMP?connection) |
Current consumption (5 V system supply) | 150mA | Total current (system supply) | 400mA |
Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via CAGE CLAMP?connection; transmission (field-side supply voltage only) via spring contact | Input current (typ.) at nominal load (24?V) | 200mA |
Power supply efficiency (typ.) at nominal load (24 V) | 76% | Isolation | 500?V system/field |
Indicators | LED (A, B) green: operating voltage status: system, power jumper contacts | Number of outgoing power jumper contacts | 3 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: communication/fieldbus | Local bus:?2 x RJ-45 |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 24?mm?/ 0.945?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.016MJ |
Weight | 74.8g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-10 |
eCl@ss 9.0 | 27-24-26-10 | ETIM 9.0 | EC001600 |
ETIM 8.0 | EC001600 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454830991 |
Customs tariff number | 8538901000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
