Product Model

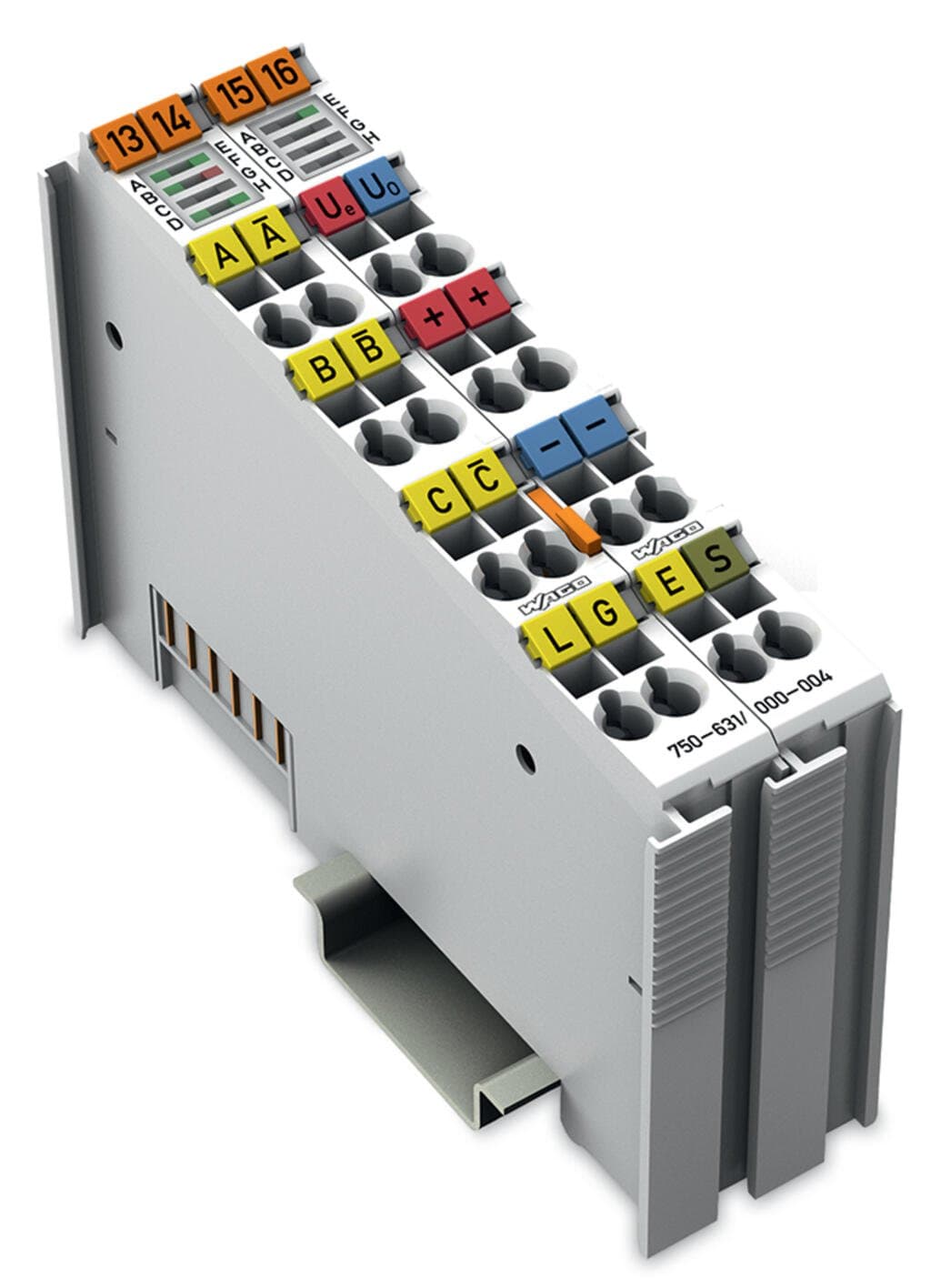

750-631/000-004
Selling Points
- 1Built with CAGE CLAMP® connections for superior contact quality and resistance to environmental stresses.
- 2Easy installation via universal mounting system and wide mounting collar, reducing installation errors.
- 3Supports various interfaces including CAN, Ethernet, serial, and USB for seamless integration.
- 4Each node can be configured to meet specific channel requirements with digital and analog I/O modules.
- 5Features passive cooling system and robust power supply options for optimal system performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Counter depth | 16bits | Encoder connection | A; /A; B; /B; C; /C (RS-422 inputs) |
Supply current (encoder) max. | 200mA | Zero impulse (latch) | 16bits |
Quadrature decoder | 4x evaluation | Voltage range for signal (0) | UABC= 0 V, UABC/= 5 V; Latch, gate ≤ 5.0?V; External error U ≥ 5.0 V or open input |
Voltage range for signal (1) | UABC= 5?V, UABC/= 0?V; Latch, gate ≥ 15.0?V; External error U < 0.5?V | Data width | 2-byte output; 5-byte input; 2x 8-bit control/status (optional); 3 additional output bytes (reserved) |
Limit frequency | 1000kHz | Commands | Reading, setting, activating |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 50mA |
Current consumption, field supply (module with no external load) | 10mA | Isolation | 500?V system/field |
Indicators | LED (A, B, D, E/E, H) green: A, C, Latch, B/Function, Gate; LED (F) red: Error | Connection technology: inputs / outputs | 16 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 24?mm?/ 0.945?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.17MJ |
Weight | 92.1g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-05 |
eCl@ss 9.0 | 27-24-26-05 | ETIM 9.0 | EC001601 |
ETIM 8.0 | EC001601 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821248309 |
Customs tariff number | 8538901000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | fea078d9-b220-4917-9ca7-c9b9accf9dd3 | SCIP notification number (Belgium) | 17dc706f-fe9b-4e4b-ab0e-8b22fb4f9ea2 |
SCIP notification number (Bulgaria) | 64c38c1f-4fd7-4414-ad0e-6e74eb6121f1 | SCIP notification number (Czech Republic) | eada6547-89f4-4ccf-9b07-cc7cc16a0b08 |
SCIP notification number (Denmark) | 087267d8-20d0-453e-b8d2-596f45ba29d8 | SCIP notification number (Finland) | 15eadba7-ffb5-4b96-8d2f-210be8a44cdc |
SCIP notification number (France) | c1ce9943-649a-4b1b-8179-17484af159b4 | SCIP notification number (Germany) | 31f84bca-52b4-4416-90f1-3532a29af73c |
SCIP notification number (Hungary) | 0e0cdbbe-545e-48c6-a9ad-44bbfd63edba | SCIP notification number (Italy) | 7027983b-8361-4c3b-a904-db9dc7e7f052 |
SCIP notification number (Netherlands) | adb132a3-2cd8-43de-8d43-11bc1907ed04 | SCIP notification number (Poland) | 950ab44a-e69d-4d76-9866-5b547434672e |
SCIP notification number (Romania) | 4c62a02f-b6bb-4a93-b3eb-2ee234bf2529 | SCIP notification number (Sweden) | 87c40bd3-3991-4857-af75-24858f8077ea |
Specifications may be subject to change without notice
