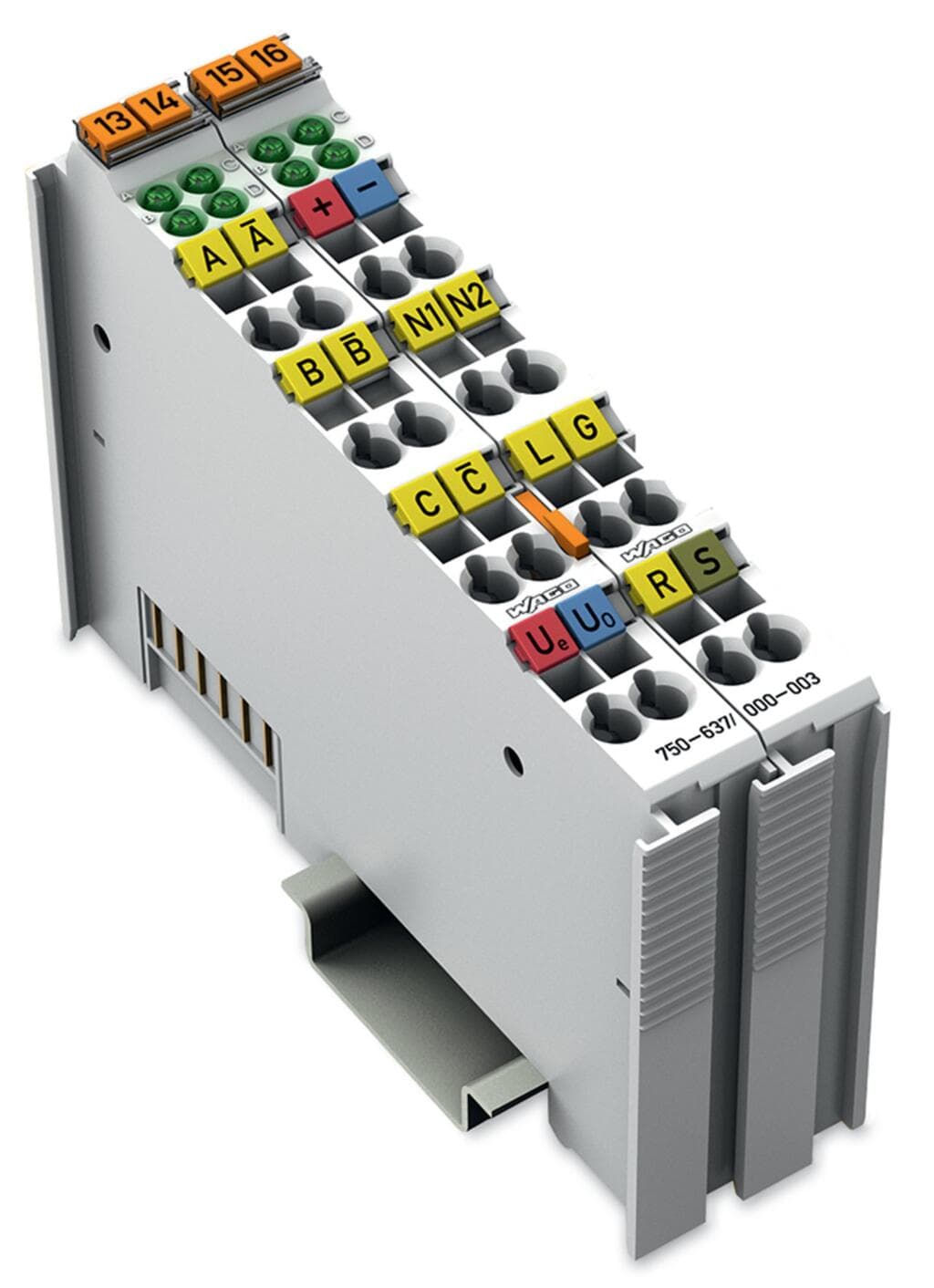

Product Model
750-637/000-003
Selling Points
- 1High-Performance RS-422 Connectivity: Supports 32-bit RS-422 encoder input with a 250kHz maximum counter.
- 2Durable Design: Rated for ambient temperatures between 0°C and +55°C, with an IP20 protection rating.
- 3Secure Wiring: Utilizes spring cage-clamp connections for secure wiring and easy installation.
- 4Compact Size: Designed for DIN-35 rail mounting with a width of 24mm, making it ideal for space-constrained applications.
- 5Compliant with Standards: Meets EMC immunity to interference standards (EN 61000-6-2) and EMC emission of interference standards (EN 61000-6-4).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Counter depth | 32bits | Encoder connection | A; /A; B; /B; C; /C (RS-422 inputs) |
Supply current (encoder) max. | 300mA | Zero impulse (latch) | 32bits |
Quadrature decoder | 1x report | Input current (typ.) | Latch 5 mA, Gate 7 mA, Ref. 7 mA |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Output voltage | 24?VDC | Voltage range for signal (0) | UABC= RS-422; Latch, gate, ref.: -3 … +5?VDC |
Voltage range for signal (1) | UABC= RS-422; Latch, gate, ref.: 15 … 30?VDC | Data width | 1 x 32-bit data 2 x 8-bit control/status |
Limit frequency | 250kHz | Commands | Reading, setting, activating |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 110mA |
Current consumption, field supply (module with no external load) | 35mA | Isolation | 500?V system/field |
Indicators | LED (A-D/A-D) green: A, C, B, Latch, Gate, N1, Ref, N2 | Connection technology: inputs / outputs | 16 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 24?mm?/ 0.945?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 2.242MJ |
Weight | 101.4g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-05 |
eCl@ss 9.0 | 27-24-26-05 | ETIM 9.0 | EC001601 |
ETIM 8.0 | EC001601 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454925871 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 2a70a3af-6a78-4f7a-a1c2-7d518a4490f0 |
SCIP notification number (Belgium) | df6275bf-0e85-4103-ac6f-135c6a25ffd4 | SCIP notification number (Bulgaria) | 211f6b8f-482e-4345-a125-4d9f7e7b638d |
SCIP notification number (Czech Republic) | 3cd3435e-6518-44f4-95eb-2bd1905b5f07 | SCIP notification number (Denmark) | 1d55dce1-2a39-4212-a22d-c5bd143a1158 |
SCIP notification number (Finland) | ffb2737f-8999-4bc3-aee5-23e973520e43 | SCIP notification number (France) | 7a6da688-5a40-4cd1-bda8-98540e72e186 |
SCIP notification number (Germany) | 7bf9a5f2-8c15-478f-a94c-a6f4b3365a97 | SCIP notification number (Hungary) | ed43952b-8a07-452e-82e2-e6ebae0329b0 |
SCIP notification number (Italy) | 342f0b22-d45a-4d61-92a2-dd85a76ca790 | SCIP notification number (Netherlands) | 2d934ab1-d3d2-4e73-89a6-dcb2d55a3ef3 |
SCIP notification number (Poland) | bbb5afa9-2dc6-42a2-9233-ae9d7544f5de | SCIP notification number (Romania) | aecd9e87-81bc-407c-ae5f-d4bae298fd7b |
SCIP notification number (Sweden) | 51e183c4-baf3-42d5-b216-9652d5f69b32 |
Specifications may be subject to change without notice
