Product Model

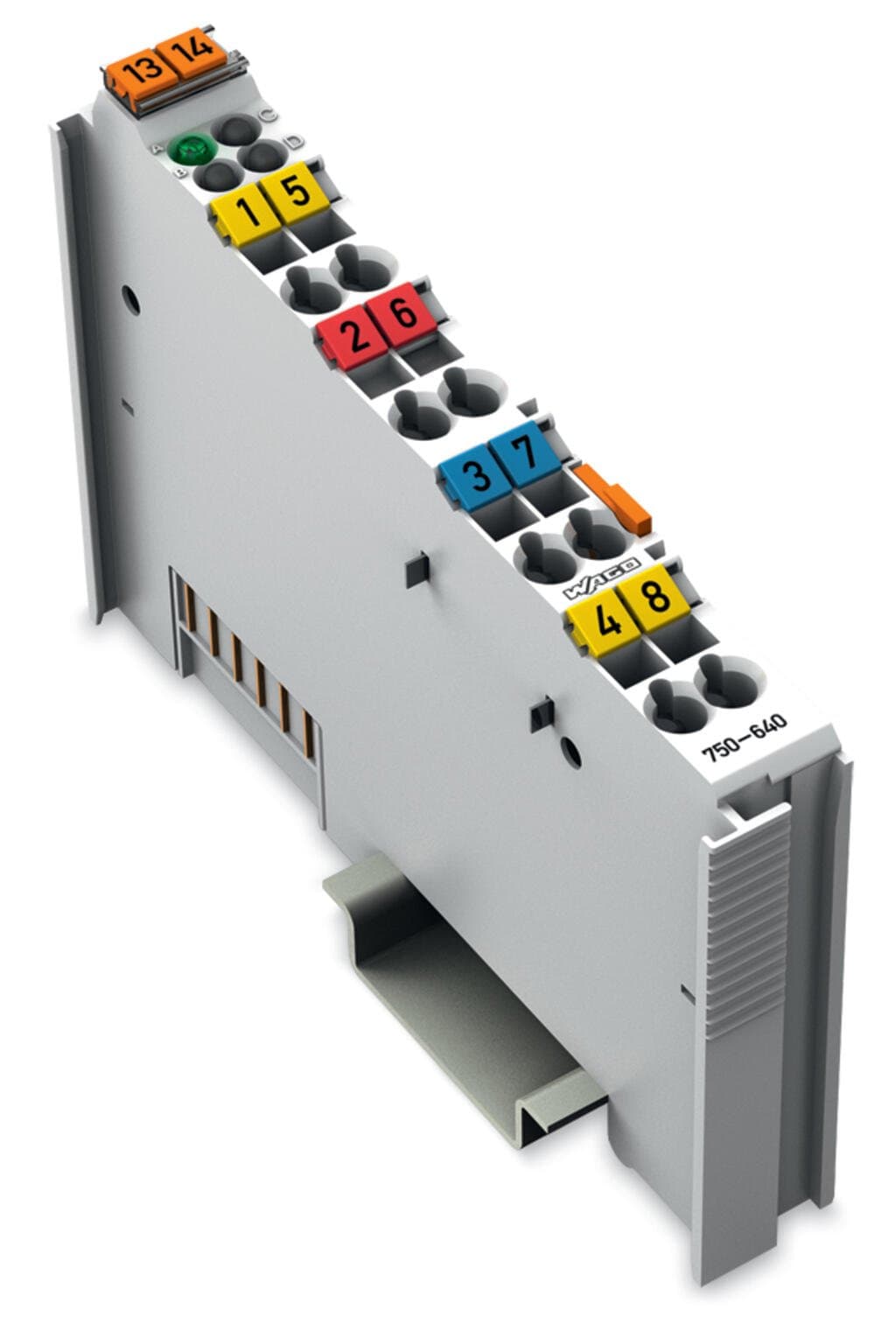

750-640
Selling Points
- 1High reliability and durability in harsh environments.
- 2Efficient performance with quick and easy connections.
- 3Versatile for use in various industrial applications.
- 4Compact design for space-saving installations.
- 5Easy-to-use connectors with secure locking mechanism.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device-specific | Accuracy (25 °C): < 1 minutes/month; Accuracy (10 … 40 °C): < 2 minutes/month; Accuracy (-25 … +85 °C): < 7 minutes/month; Drift: < 2 minutes/year | Input filter | 10 ms |
Input current at specific input voltage | 5?mA?at?24?V | Input current at specific input voltage (2) | 1?mA bei 5?V |
Open-circuit voltage | 4V | Output voltage | 5 … 24 VDC; Supply Vant, in |
Voltage range for signal (0) | ?24 … +1?VDC | Voltage range for signal (1) | 3 … 24?VDC |
Clock timer | 32?channels and switch points (32 x on/off) | Buffer length | 6days |
Data width | 1 x 40-bit data (input/output) (5-byte user data) 1 x 8-bit control/status (optional) | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 20mA | Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Current consumption, field supply (module with no external load) | 11mA | Isolation | 500?V system/field |
Indicators | LED (A) green: Signal DCF77 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.998MJ |
Weight | 49.5g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-3 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-05 |
eCl@ss 9.0 | 27-24-26-05 | ETIM 9.0 | EC001601 |
ETIM 8.0 | EC001601 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454419417 |
Customs tariff number | 8538901000 | End of Sale | 2024-02-01 |
End of Production | 2024-04-01 | End of Delivery | 2024-08-01 |
End of Service and Repair | 2026-08-01 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 06a5dda7-6068-432c-9b5e-9c13cfe217ee |
SCIP notification number (Belgium) | e906bb03-915d-4ad7-9226-6571ebd0a23c | SCIP notification number (Bulgaria) | 5e6006cf-6c6a-419b-a7d3-4b823337d45d |
SCIP notification number (Czech Republic) | 46824ecc-1dc6-4b4d-a224-1bf40d1fbfcd | SCIP notification number (Denmark) | 143216bd-f343-4f12-9d08-4551123bd551 |
SCIP notification number (Finland) | b392a002-0cb0-4b08-946d-1f467a94382c | SCIP notification number (France) | afd123b1-5e6f-48c4-aad9-aff665973e08 |
SCIP notification number (Germany) | 6b5f7fd5-c2db-44e3-b619-4040f550bd29 | SCIP notification number (Hungary) | 24054297-8465-4e0e-bd98-6b8c6dea6dc7 |
SCIP notification number (Italy) | eb74feb7-164b-4fb3-b2e4-2b340af5dac3 | SCIP notification number (Netherlands) | dffe26bf-404f-46bc-8305-13e88477d01c |
SCIP notification number (Poland) | 13918c1a-bf96-4a9b-8da9-8a5786c74d02 | SCIP notification number (Romania) | d8ce1ef2-f53c-4d97-8f42-4dac98fa4d8f |
SCIP notification number (Sweden) | 1b4108a6-b759-4d2a-bca8-45d07a8c9bb5 |
Specifications may be subject to change without notice
