Product Model

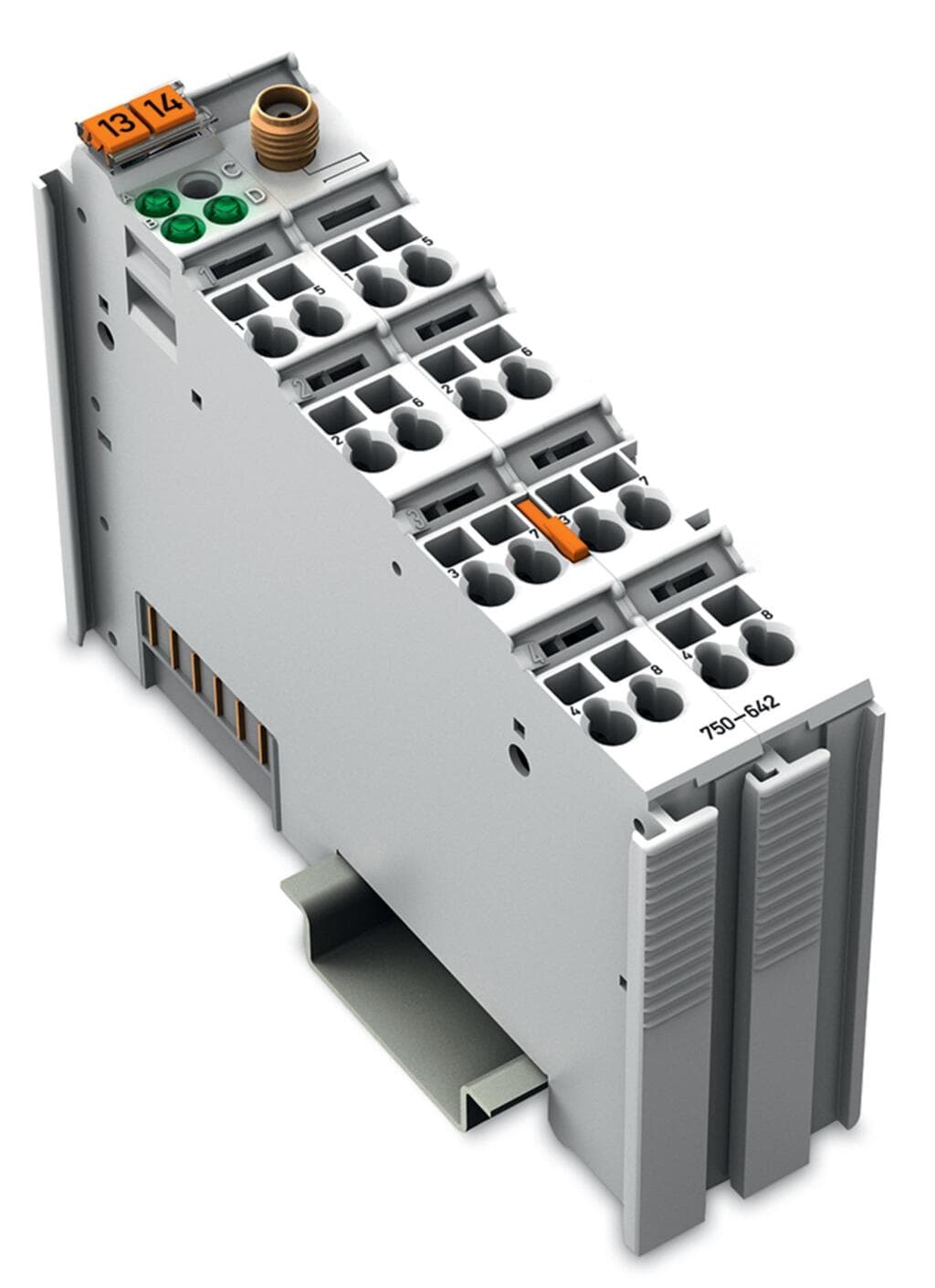

750-642
Selling Points
- 1Advanced IoT Module: Receive radio telegrams from maintenance-free, self-powered, and wireless switches/sensors based on EnOcean radio technology.
- 2High-Range Transmission: Supports up to 300 meters in open space, with reduced range in buildings due to environmental factors.
- 3Easy Integration: Preprogrammed function blocks make integration with any WAGO I/O System 750 controller easy and efficient.
- 4Low Power Consumption: Operates at 5 VDC with a current consumption of 80 mA, ensuring energy efficiency.
- 5Robust Design: Features IP20 protection, 500 V isolation, and resistance to shock, vibration, and pollution, ensuring durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The maximum range in the field decreases with use in buildings and changes depending on the building materials used and the spatial geometry. Therefore, range specifications within buildings can only represent a typical value that can normally be achieved. More detailed information is available in the manual. | Radio technology | EnOcean |
Frequency band | 868.3 MHz | Transmission range | up to 300?m in open space (typ. in buildings, see manual) |
Data width | 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 80mA | Isolation | 500 V antenna connection/system |
Connection technology: antenna | 1 x SMA socket | Width | 24?mm?/ 0.945?inches |
Height | 100?mm?/ 3.937?inches | Depth | 72?mm?/ 2.835?inches |
Depth from upper-edge of DIN-rail | 64.8?mm?/ 2.551?inches | Mounting type | DIN-35 rail |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 2.589MJ |
Weight | 86.5g | Conformity marking | CE |
Conformity marking RTTE | www.wago.com | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-08 | eCl@ss 9.0 | 27-24-26-08 |
ETIM 9.0 | EC001604 | ETIM 8.0 | EC001604 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454509583 | Customs tariff number | 8538901000 |
End of Sale | 2023-11-01 | End of Production | 2024-01-31 |
End of Delivery | 2024-02-01 | End of Service and Repair | 2026-02-01 |
CAS-No. | 12060-00-3 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | b8b2a4c8-1786-45af-bec7-3e0abaace09e | SCIP notification number (Czech Republic) | c27f9015-9eb1-4885-811b-0b04255be854 |
Specifications may be subject to change without notice
