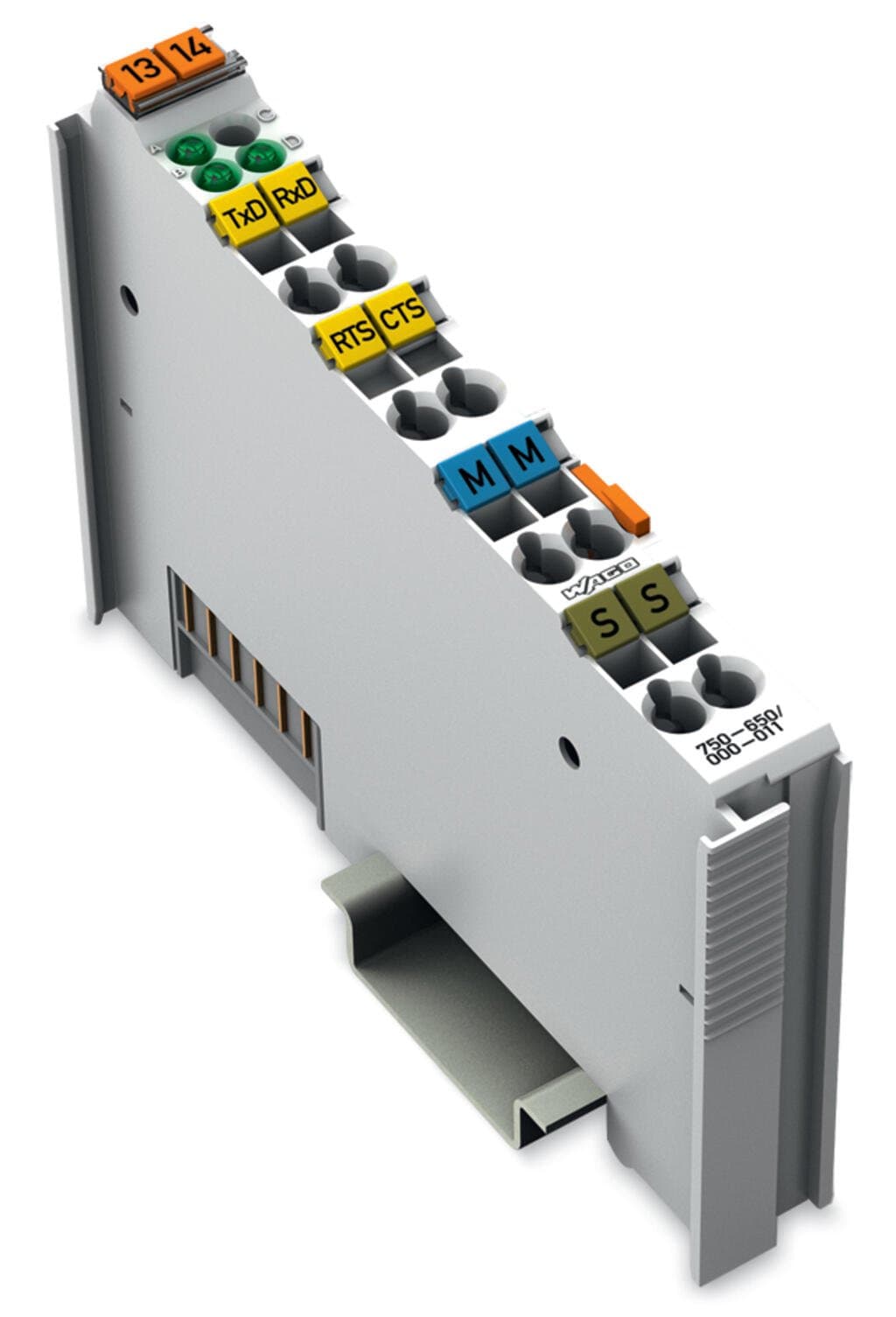

Product Model
750-650/000-011
Selling Points
- 1Reliable RS-232 C Serial Interface for stable data transmission.
- 2Supports baud rates up to 19200 for high-speed communication.
- 3Compatible with various industrial automation systems.
- 4Durable and robust design for harsh industrial environments.
- 5Easy integration with WAGO's extensive range of I/O modules.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device-specific | Bit skew: < 3 %; RS-232-C line length (max.): 15 m | Signal type | RS-232 |
Transmission rate | 19.2?kBd | Transmission channels | 1 TxD / 1 RxD, full-duplex |
Data width | 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status | Parity | Even |
Number of data bits | 8 | Number of stop bits | 1 |
Buffer | 120-byte input / 16-byte output | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 55mA | Isolation | 500?V system/field |
Indicators | LED (A, B, D) green: Function, TxD, RxD | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.037MJ |
Weight | 48.4g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-08 |
eCl@ss 9.0 | 27-24-26-08 | ETIM 9.0 | EC001604 |
ETIM 8.0 | EC001604 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454394134 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 4a0eb82d-1399-4ec8-be74-9d5a4ef492ab |
SCIP notification number (Belgium) | b02206cd-bd3b-4ed2-9a9f-c2c0f3df047c | SCIP notification number (Bulgaria) | 57c9029a-66e7-4e9b-9e1f-2c7599ff13bd |
SCIP notification number (Czech Republic) | 13e9e8bd-511f-45b7-9ff1-852cc0840432 | SCIP notification number (Denmark) | df2e79fb-7e28-450c-b239-53e5f647ca41 |
SCIP notification number (Finland) | ae4951db-93cb-4657-8fb9-1af6405e9524 | SCIP notification number (France) | 831eae44-bc57-4844-a91e-d298005c6cbe |
SCIP notification number (Germany) | deae43ce-8cdd-4d0d-bedc-d548e65f2e35 | SCIP notification number (Hungary) | ca36ad07-da2c-4450-b063-04e460490d64 |
SCIP notification number (Italy) | 5e037c30-47a9-4b42-975b-e168f3c6e969 | SCIP notification number (Netherlands) | dba2b5f2-4f5a-4574-8bea-fddd50027246 |
SCIP notification number (Poland) | a85135ba-d482-4edd-b167-229b90639d0b | SCIP notification number (Romania) | c2478b7a-7b3b-4eea-b644-41e17d175bee |
SCIP notification number (Sweden) | fb93a18a-5d70-4dc7-875b-245845af826b |
Specifications may be subject to change without notice
