Product Model

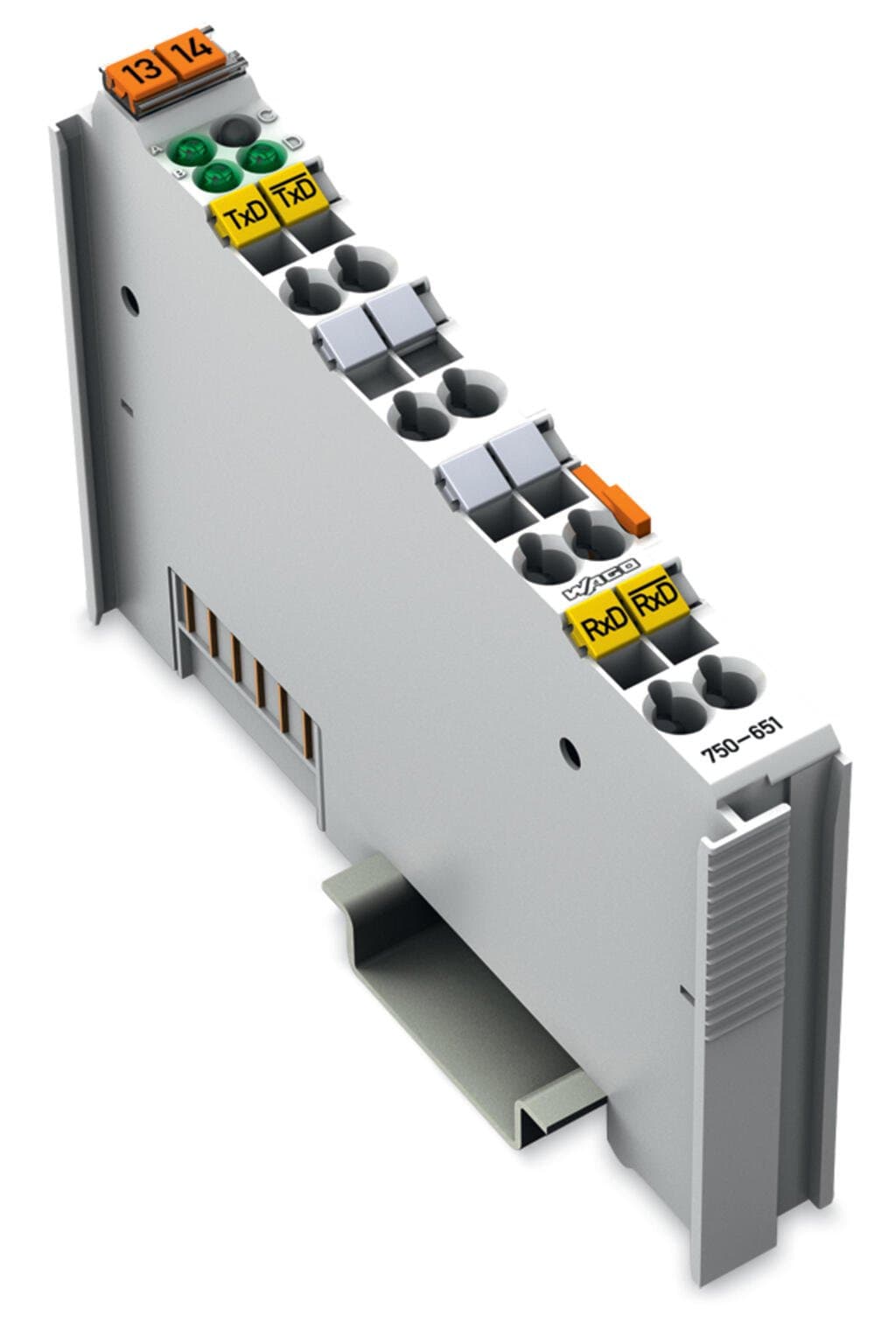

750-651
Selling Points
- 1Designed for industrial applications with a robust IP20 protection rating.
- 2Supports data transmission settings of parity none, 8 data bits, and 1 stop bit.
- 3Easy installation on DIN-35 rail with 8 CAGE CLAMP spring connections.
- 4Operates between 0°C and +55°C, ensuring stable performance in various environments.
- 5Compatible with twisted pair cables up to 1000 meters for extended reach.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | TTY, 20?mA | Transmission rate | 1.2 kBd … 19.2 kBd ( (9600 baud (default setting))) |
Bit transfer | 2 x 20 mA | Transmission channels | 1 TxD / 1 RxD, full-duplex |
Line length | max. 1000 m twisted pair | Data width | 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status |
Load impedance (current output) | ≤?500?Ω | Parity | None |
Number of data bits | 8 | Number of stop bits | 1 |
Buffer | 128-byte input / 16-byte output | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 55mA | Isolation | 500?V system/field |
Indicators | LED (A, B, D) green: Function, TxD, RxD | Connection technology: inputs / outputs | 4 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.087MJ |
Weight | 45.9g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-08 |
eCl@ss 9.0 | 27-24-26-08 | ETIM 9.0 | EC001604 |
ETIM 8.0 | EC001604 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454853006 |
Customs tariff number | 8538901000 | End of Sale | 2023-12-31 |
End of Production | 2024-03-31 | End of Delivery | 2024-04-01 |
End of Service and Repair | 2026-04-01 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
