Product Model

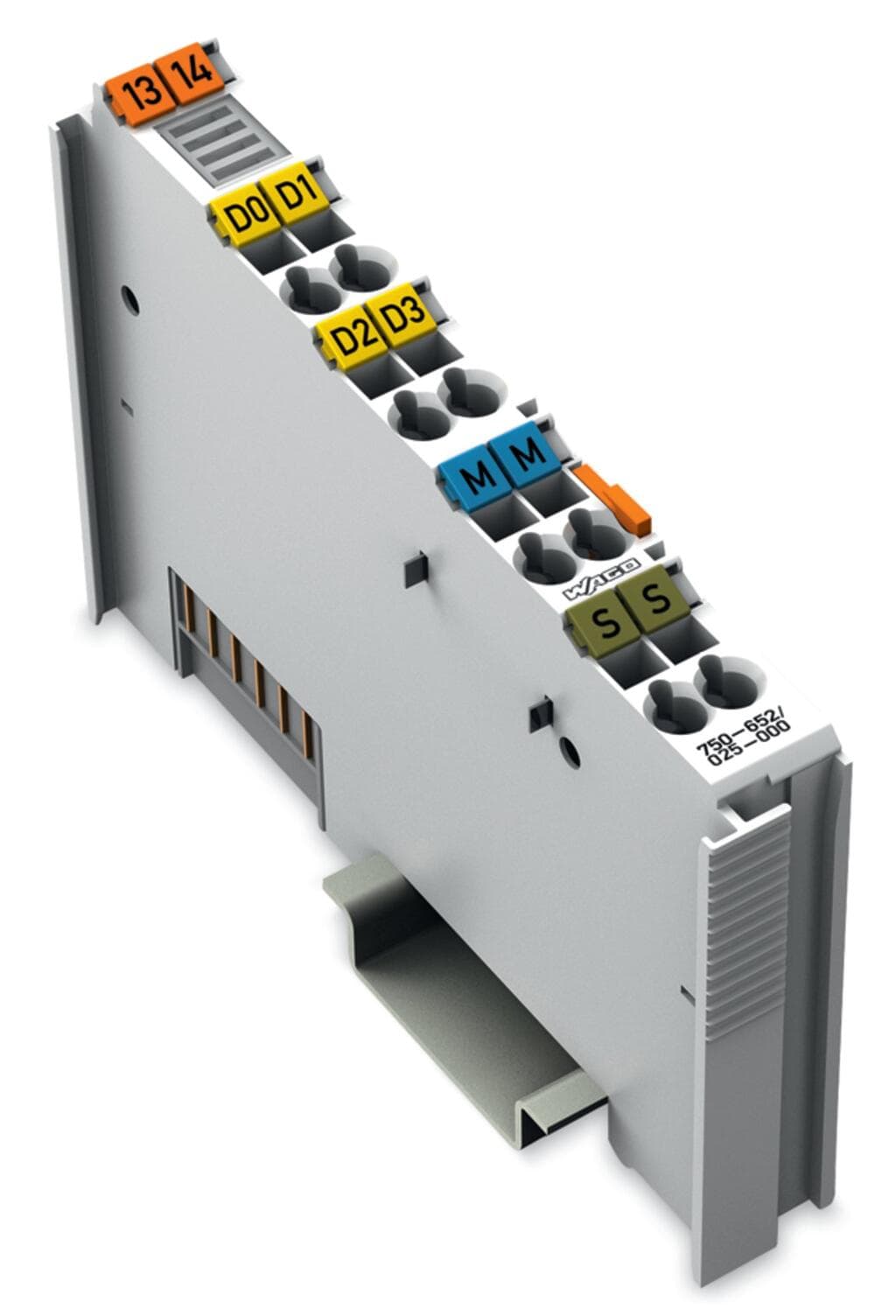

750-652/025-000
Selling Points
- 1Extended Temperature Range: Operates between -20°C and +60°C.
- 2Adjustable Parity: Supports none, even, and odd parity settings.
- 3Flexible Data Transfer: Compatible with RS-232, RS-485, and RS-422 at speeds from 0.3 to 115.2 kbit/s.
- 4Durable Construction: IP20 protection rating with 8 CAGE CLAMP spring connections.
- 5Versatile Mounting: Mounted on a DIN-35 rail with a 12mm width.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | RS-232 | Transmission rate | 300/115.2 kBd |
Bit transfer | RS-485/-422: ISO 8482 / DIN 66259 - 4; RS-232: EIA/TIA-232-F | Transmission channels | 1 TxD / 1 RxD, full-duplex, half-duplex |
Line length | RS-485/-422: approx. 1000 m (max.) twisted pair, RS-232: 40 m (max.) | Data width | 1 x 46/1 x 22/1 x 6-byte input/output (parameterizable), 2-byte control/status |
Parity | None/Odd/Even | Number of data bits | 7/8, adjustable |
Number of stop bits | 1/2, adjustable | Buffer | 2560-byte input / 512-byte output |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 85mA |
Supply voltage (field) | 24 VDC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
Indicators | LED (A-H) green/yellow/red: function, transmission status, reception status, error (buffer full), RS … active, flow control active, user LED 1, user LED 0 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 67.8?mm?/ 2.669?inches |
Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.965MJ | Weight | 50.5g |
Conformity marking | CE | Ambient temperature (operation) | -20 … +60 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of ?20 ?to +60 °C (except for wind-driven precipitation, water and ice formation) | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61131-2, marine applications |
EMC emission of interference | per EN 61131-2, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-08 |
eCl@ss 9.0 | 27-24-26-08 | ETIM 9.0 | EC001604 |
ETIM 8.0 | EC001604 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821129110 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 27032d0a-883d-468f-9cb6-088aed8ef215 |
SCIP notification number (Belgium) | 065a1859-4dfa-4afa-93ea-596bb13ab6a1 | SCIP notification number (Bulgaria) | bc6d1a6b-6f1a-4bd0-aa78-fae884cac4c2 |
SCIP notification number (Czech Republic) | c52bcfbd-3c89-44b0-99f5-79335a9b9081 | SCIP notification number (Denmark) | 9fa9f45b-63fd-4d35-94f4-77cf78b4bc9e |
SCIP notification number (Finland) | d2ecd908-0222-4148-9094-474952bfb124 | SCIP notification number (France) | 735a8f7a-a40a-40c8-8156-1c1b84a256be |
SCIP notification number (Germany) | 4848744b-bedb-47ea-8a40-c29e8eb81f1c | SCIP notification number (Hungary) | 212333fc-06fd-4fc9-8837-cf964aa99fac |
SCIP notification number (Italy) | 895f8dbb-56a3-45b1-9efb-2f5ec6f859e4 | SCIP notification number (Netherlands) | 24e2dd56-f34e-4faa-95c1-148f86c586bb |
SCIP notification number (Poland) | 61305c86-7651-4591-b007-860a9db7ce8a | SCIP notification number (Romania) | 8cc341f1-4585-4430-98ea-9f5f63872f71 |
SCIP notification number (Sweden) | 19b7563f-d21d-4e0a-aee1-e064b492ab81 |
Specifications may be subject to change without notice
