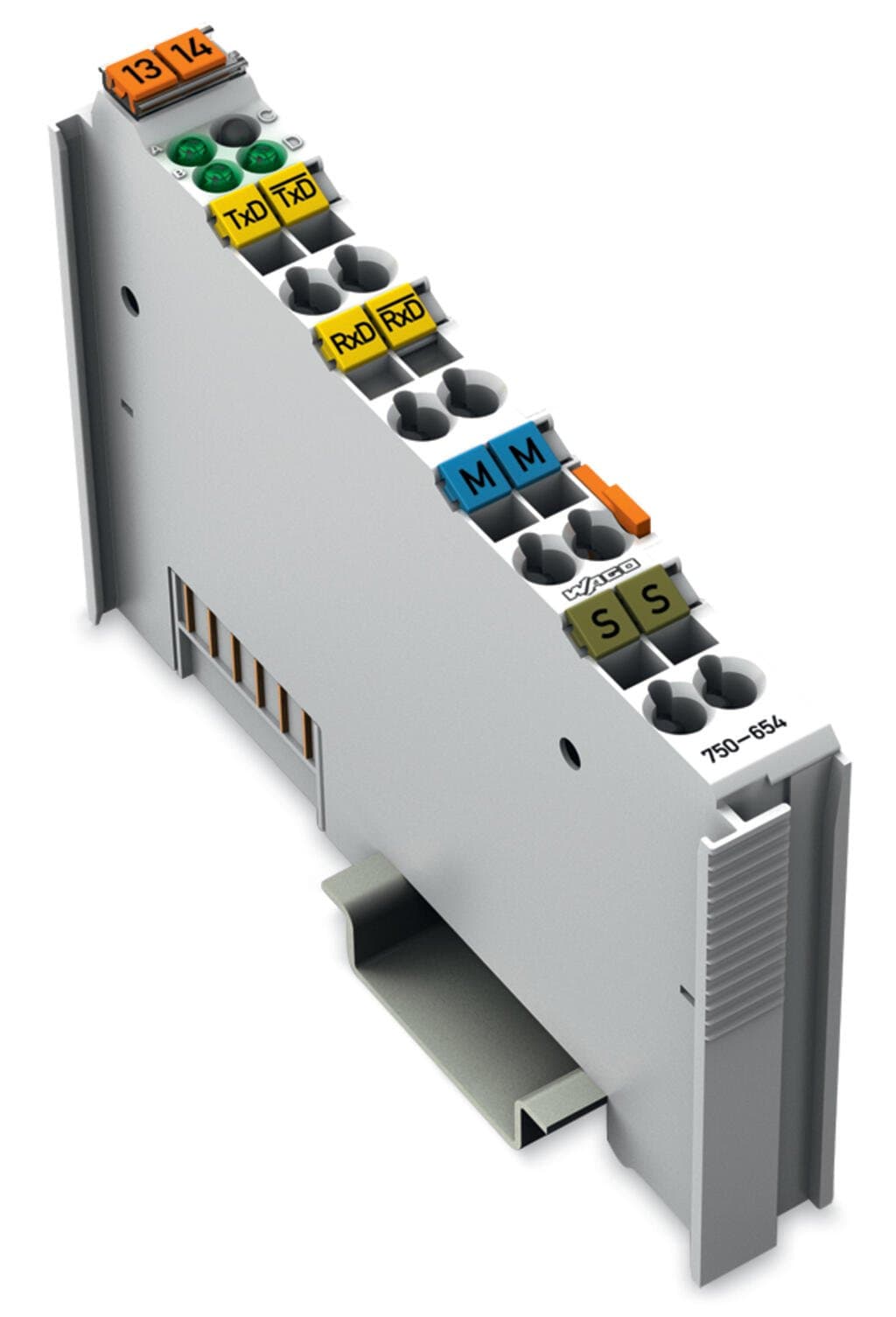

Product Model
750-654
Selling Points
- 1Transmits data at 62.5 kBd, ensuring efficient communication in industrial settings.
- 2Supports full duplex operation, allowing simultaneous data transmission and reception.
- 3Built with polycarbonate and polyamide 6.6, providing excellent mechanical strength and resistance to environmental factors.
- 4Mounts on DIN Rail, making it simple to integrate into existing automation systems.
- 5Features 8 x CAGE CLAMP® connections for secure and reliable input/output connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Transmission rate | 62.5?kBd | Bit transfer | via 2 twisted pairs with differential signals |
Transmission channels | 1 TxD / 1 RxD, full-duplex | Line length | approx. 1000 m twisted pair |
Data width | 1 x 32-bit input/output; 1 x 8-bit control/status | Line impedance | 120Ω |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 65mA |
Isolation | 500?V system/field | Indicators | LED (A, B, D) green: Function, TxD, RxD |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.085MJ | Weight | 49g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-08 | eCl@ss 9.0 | 27-24-26-08 |
ETIM 9.0 | EC001604 | ETIM 8.0 | EC001604 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332345583 | Customs tariff number | 8538901000 |
End of Sale | 2023-02-15 | End of Production | 2023-02-16 |
End of Delivery | 2023-03-06 | End of Service and Repair | 2025-03-06 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
