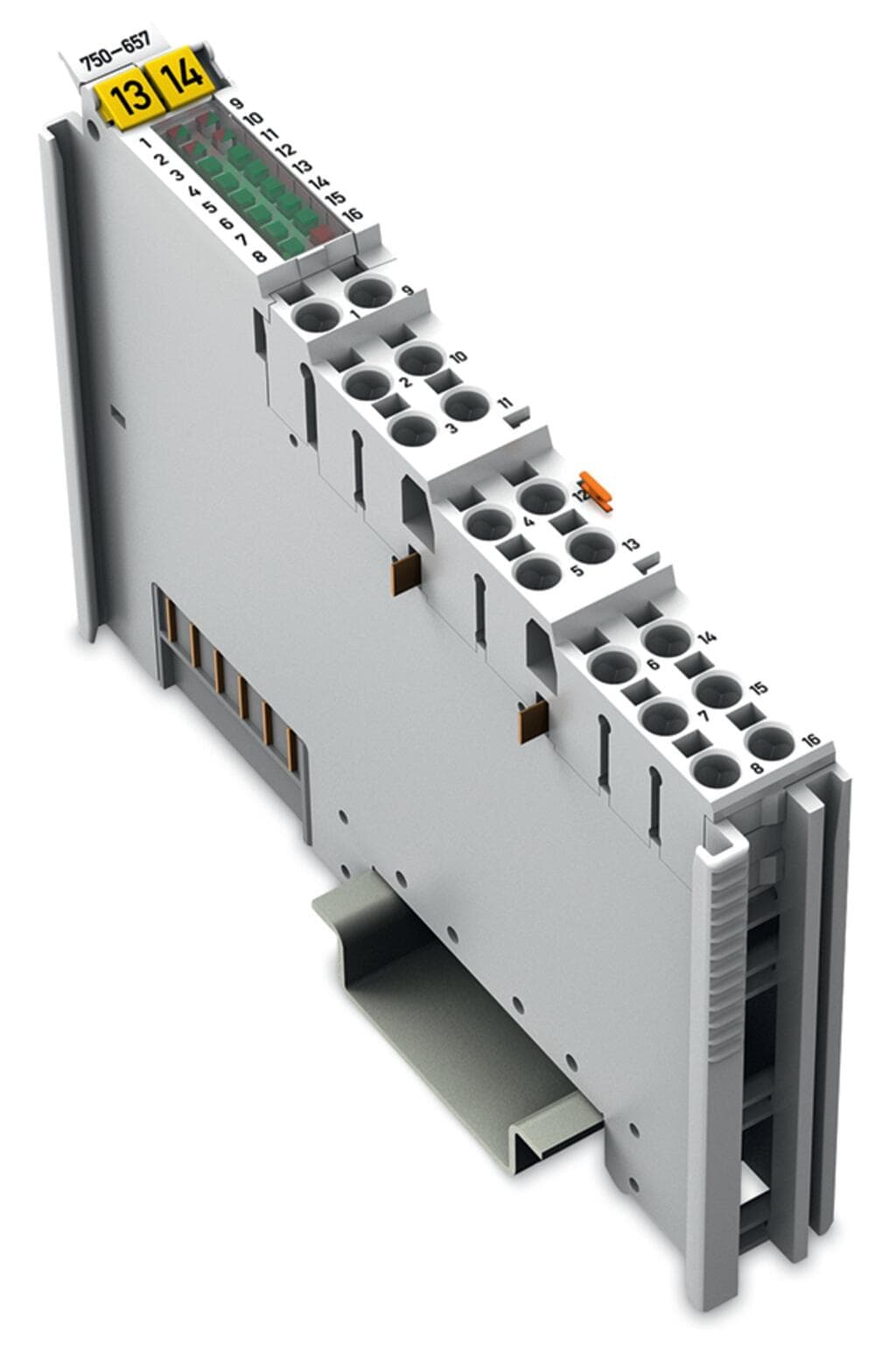

Product Model
750-657
Selling Points
- 1Connects up to four IO-Link devices or standard digital sensors/actuators.
- 2Supports transmission modes from 4.8 kBaud to 230.4 kBaud.
- 3Offers robust IP20 protection against environmental factors.
- 4Equipped with 16 x Push-in CAGE CLAMP connections for secure input/output connections.
- 5Compact design at just 12 mm wide, suitable for DIN-35 rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Topology | Number of IO-Link ports: 4 | Sensor connection | 4 x (3-wire) |
Actuator connection | 4 x (3-wire) | Transmission modes | 4.8 kBaud (COM 1), 38.4 kBaud (COM 2), 230.4 kBaud (COM 3) |
Data width | 4–24 bytes, configurable | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 40mA | Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Current consumption, field supply (module with no external load) | 50mA | Isolation | 500?V system/field |
Indicators | LED (1, 2, 9, 10) red/green: operating status C/Q 1 … C/Q 4; LED (8) green: operating status IO-Link master; LED (16) red: group error | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Connection requirement (permissible cable length) | 20m | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69?mm?/ 2.717?inches |
Depth from upper-edge of DIN-rail | 61.8?mm?/ 2.433?inches | Mounting type | DIN-35 rail |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.848MJ |
Weight | 49.6g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, EN 61131-2 |
EMC emission of interference | per EN 61000-6-4, EN 61131-2 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-05 |
eCl@ss 9.0 | 27-24-26-05 | ETIM 9.0 | EC001601 |
ETIM 8.0 | EC001601 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454989330 |
Customs tariff number | 8538901000 | End of Sale | 2023-06-30 |
End of Production | 2023-12-31 | End of Delivery | 2024-03-01 |
End of Service and Repair | 2026-03-01 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 6c781b87-021e-4446-a85e-2e4e7f568cda |
SCIP notification number (Belgium) | 24693d0d-4d13-4c9f-a2b7-26b17625640d | SCIP notification number (Bulgaria) | 26741315-2d60-4e6b-acde-dd1f51c6844f |
SCIP notification number (Czech Republic) | d857c101-3687-4f6a-aea0-47edf367fa6c | SCIP notification number (Denmark) | 27796915-d29b-4b6f-8f96-761adc16f981 |
SCIP notification number (Finland) | ea18bc28-d025-406f-a077-5ebbc2ca3287 | SCIP notification number (France) | b016b33e-9a9e-44e5-a56d-5ae098ebb464 |
SCIP notification number (Germany) | 49d65735-8bb6-4640-918a-f11148fb0ee7 | SCIP notification number (Hungary) | a3954213-7f9c-44b0-b62e-8ade40adbbdc |
SCIP notification number (Italy) | eb1cf1f0-d590-4c1e-93b9-417e9d87a84b | SCIP notification number (Netherlands) | 9b97d7ad-2cf1-4720-b7bf-dd1d9db1afb1 |
SCIP notification number (Poland) | 4e208c06-0cae-4277-ad92-4243941212e9 | SCIP notification number (Romania) | bdca249d-5222-4140-bf1f-af060323c340 |
SCIP notification number (Sweden) | ecea7f67-cb59-4dd9-8420-79365dd6c946 |
Specifications may be subject to change without notice
