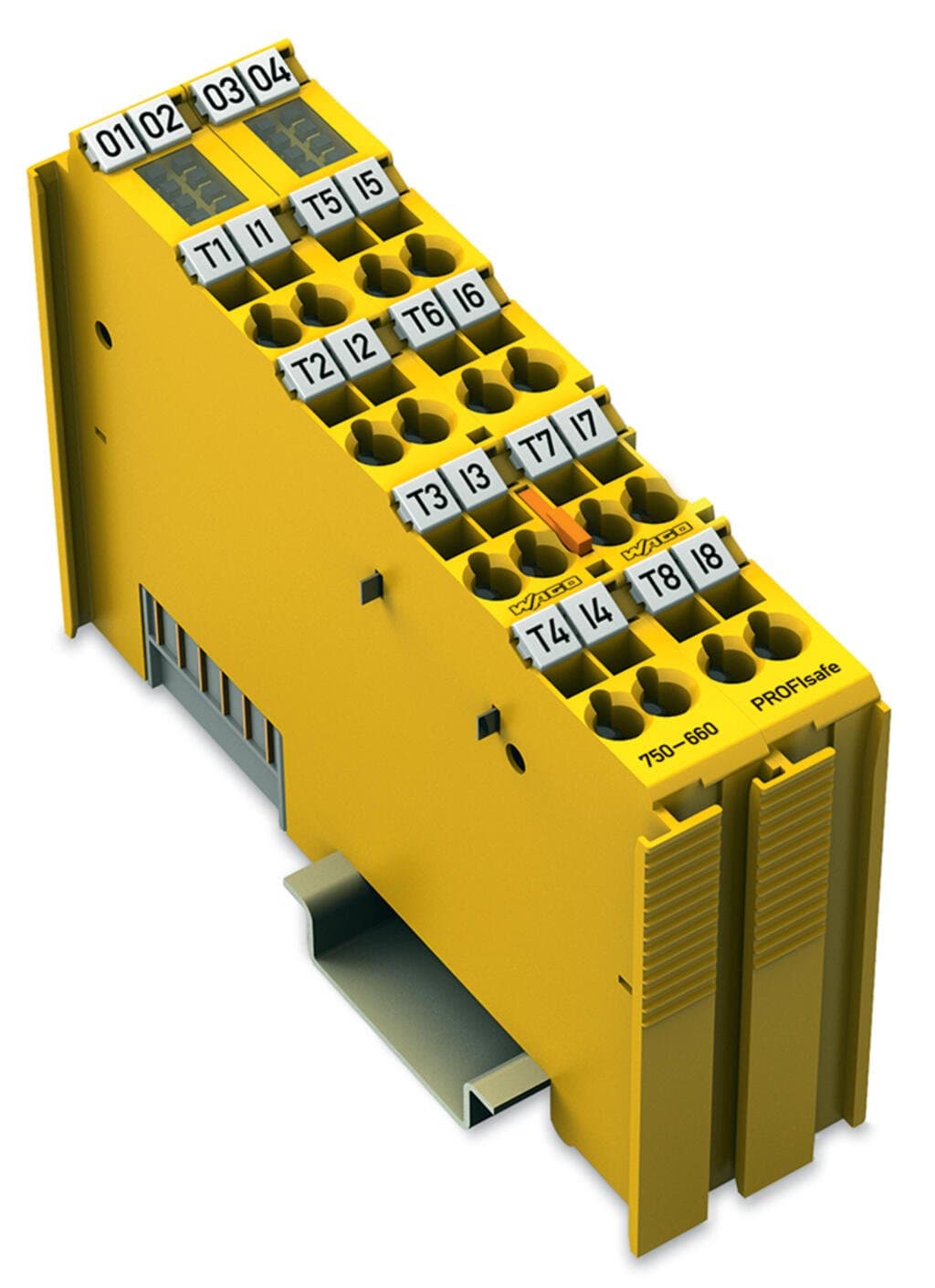

Product Model
750-660/000-001
Selling Points
- 1Fail-Safe Design: Ensures reliable operation with 8 digital inputs and test pulse functionality.
- 2Robust Safety Standards: Achieves safety classes of 8 x Cat. 2/SIL 2 or 4 x Cat. 4/SIL 3.
- 3Durable Construction: Made from polycarbonate and polyamide 6.6, with IP20 protection rating.
- 4Easy Installation: Mounts on DIN-35 rail with spring CAGE CLAMP connections.
- 5Comprehensive Compliance: Meets IEC61508 standards and EN 954-1 Cat. 4, ensuring high reliability in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protocols | PROFIsafe V1.3 | Configuration options | PROFIsafe address adjustable via DIP switch or engineering software |
Indicators | LED (A-H) green: Status I1 … I8; LED (I-K) red: internal, external; LED (L) yellow: error operator | Number of Channels | 8 |
Number of digital inputs | 8 | Signal type | Voltage |
Signal type (voltage) | 24 VDC | Sensor connection | 8 x (Fail-safe input with test pulse) |
Input characteristic | Clock sensitive | Input current per channel for signal (1) typ. | 2.2mA |
Response times | ton(L->H) = 13 ms … 71 ms; toff(H->L) = 13 ms … 26 ms; plus 2 x local bus runtime; plus 2 x fieldbus runtime; plus PLC runtime | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 40mA | Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Isolation | 500 V system/field |
Achievable safety classes | 8 x Cat. 2/SIL 2 or 4 x Cat. 4/SIL 3 | Safety standards | IEC 61508-1 … -7; EN 954-1 Cat. 4 |
Proof test interval | 10years | Connection technology: inputs / outputs | 16 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 24 mm / 0.945 inches | Height | 100 mm / 3.937 inches |
Depth | 67.8 mm / 2.669 inches | Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mounting type | DIN-35 rail | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | Customs tariff number | 8538901000 |
Specifications may be subject to change without notice
