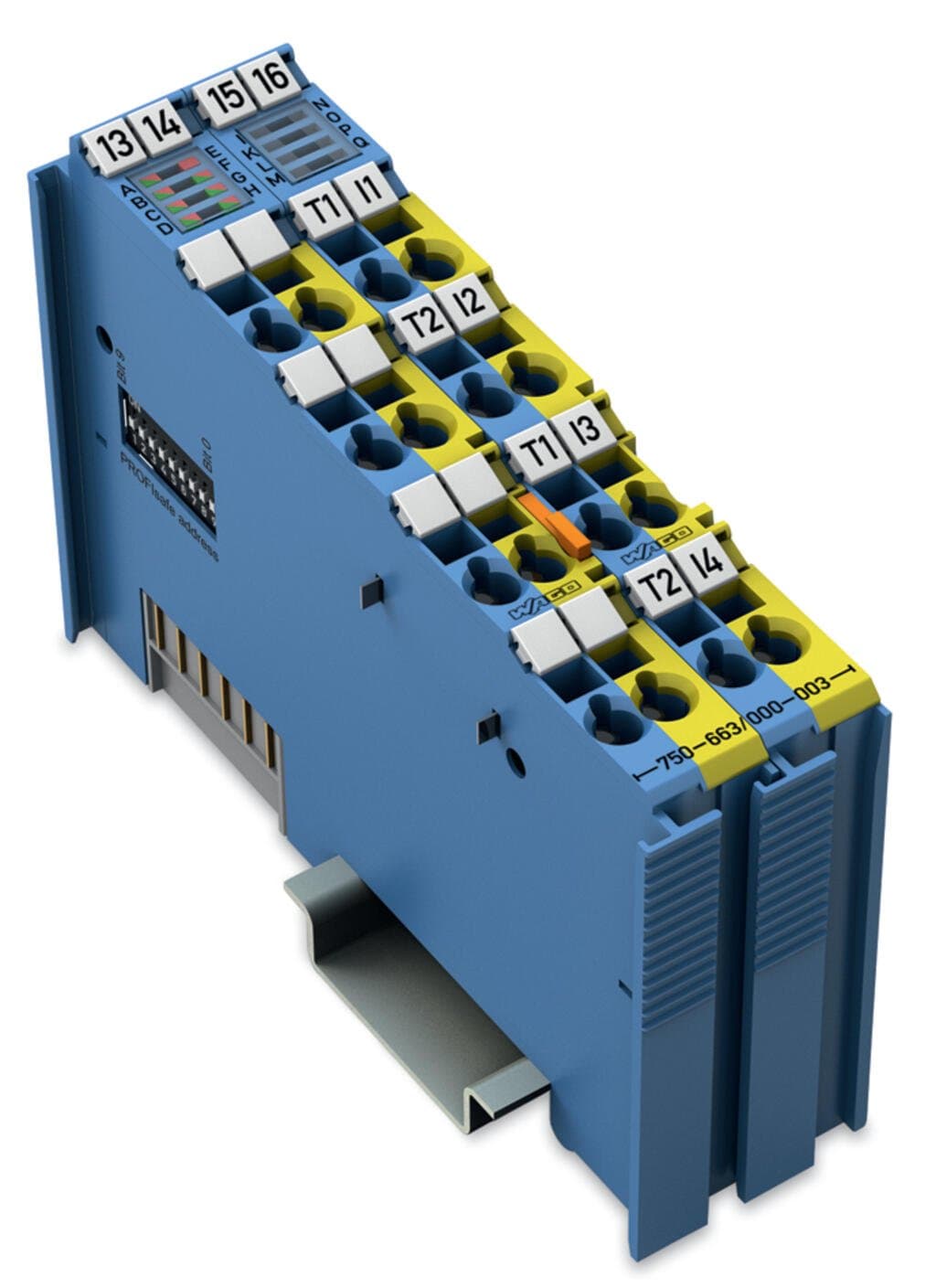

Product Model
750-663/000-003
Selling Points
- 1Achieves SIL 3 safety standards per IEC 61508, IEC 61511, and IEC 62061.
- 2Features 4 fail-safe digital inputs with test pulse capabilities.
- 3Supports PROFIsafe V2.0 iPar communication for reliable data transfer.
- 4Operates on a 5Vdc system supply and 24Vdc field supply.
- 5Mounts on DIN-35 rail with 24mm width and IP20 protection rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The PROFIsafe Input Module must only be operated using an Ex i 24 VDC power supply (e.g., 750-606, 750-625/000-001)! General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals! To protect the module against surge voltages (surge protection per IEC 61000-4-5), a filter module (750-626 or 750-624) or an external surge filter must be used upstream of the Ex i 24 VDC power supply. Reference the product manual for further information! | Order text | Intrinsically Safe 4-Channel Digital Input; 24 VDC; PROFIsafe V 2.0 iPar |
Protocols | PROFIsafe V2 | Number of digital inputs | 4 |
Number of Channels | 4 | Signal type | Voltage |
Signal type (voltage) | 24 VDC | Sensor connection | 4 x (Fail-safe input with test pulse) |
Input characteristic | Clock sensitive | Input filter | 0 … 200 ms (parameterizable in steps) |
Input filter: parametrizable (channel by channel) | Yes | Input current per channel for signal (1) typ. | 3mA |
Output current per channel | 0.005A | Short-circuit current | ≤ 25 mA |
Signal frequency (max.) | 50Hz | Intrinsically safe Ex i | Yes |
Configuration options | PROFIsafe address adjustable via DIP switch or engineering software | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 145mA | Supply voltage (field) | 24 VDC; (Ex i power supply: Uo= max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
Current consumption, field supply (module with no external load) | 20mA | Power consumption P<sub>max.</sub> | 3 W |
Power loss P<sub>l</sub> | 1.27 W | Isolation | 300 VAC system/field |
Indicators | LED (A-D) green/red: Status/Error I1 … I4; LED (E) red: Group error; LED (F-H) green/red: Diagnostics | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 1A |
Achievable risk reduction | SIL 3 per IEC 61508; SIL 3 per IEC 61511; SIL 3 per IEC 62061; Cat. 4, PL e per EN ISO 13849 | Safety standards | IEC 61508; IEC 62061; EN ISO 13849; IEC 61511 |
Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I | Ex standard | EN IEC 60079-0, -7, -11 |
Safety-relevant data (circuit) | Uo= 27.3 V; Io= 23 mA; Po= 157 mW; linear characteristic curve | Reactances?Ex ia IIC | Lo= 61 mH; Co= 64 nF |
Reactances Ex ia IIB | Lo= 100 mH; Co= 552 nF | Reactances Ex ia IIA | Lo= 100 mH; Co= 2.28 μF |
Reactances Ex ia I | Lo= 100 mH; Co= 2.95 μF | Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 24 mm / 0.945 inches |
Height | 100 mm / 3.937 inches | Depth | 67.8 mm / 2.669 inches |
Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches | Mounting type | DIN-35 rail |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 2.021MJ |
Weight | 92g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 455422aa-0af7-4236-bce5-56a64061e77a | SCIP notification number (Belgium) | d08aa233-6cb6-41d9-a0bc-f32f7a9c1388 |
SCIP notification number (Bulgaria) | 5e00a515-53cf-4b0f-b72e-d849e2b82d4d | SCIP notification number (Czech Republic) | 297355ca-ec16-4ed8-96d9-46703f222b73 |
SCIP notification number (Denmark) | a5c890cd-d642-467f-ad02-01fc6bd03c89 | SCIP notification number (Finland) | bc722cdd-62f7-4cb5-a606-7bd2aebdff8a |
SCIP notification number (France) | c3eec32c-a4c6-4661-a4ed-1bd4e9cec74a | SCIP notification number (Germany) | 1d5a8811-eed2-488d-bed9-fa61f31ce19b |
SCIP notification number (Hungary) | caf38cc2-d5a8-4317-b257-09a4814898f5 | SCIP notification number (Italy) | a6ec395a-a99f-4b96-b6f3-ac92b6b9eac3 |
SCIP notification number (Netherlands) | 60969300-4247-46b1-af2c-2d7bdf58a56a | SCIP notification number (Poland) | 5018c2ce-0c5c-4115-bc62-41290fdb653e |
SCIP notification number (Romania) | df068cd7-6fb3-4b09-9e10-1f9e1189b9d8 | SCIP notification number (Sweden) | 47f6856c-9e40-4127-8008-6375a41117e0 |
Input filter (digital) | 0.5ms |
Specifications may be subject to change without notice
