Product Model

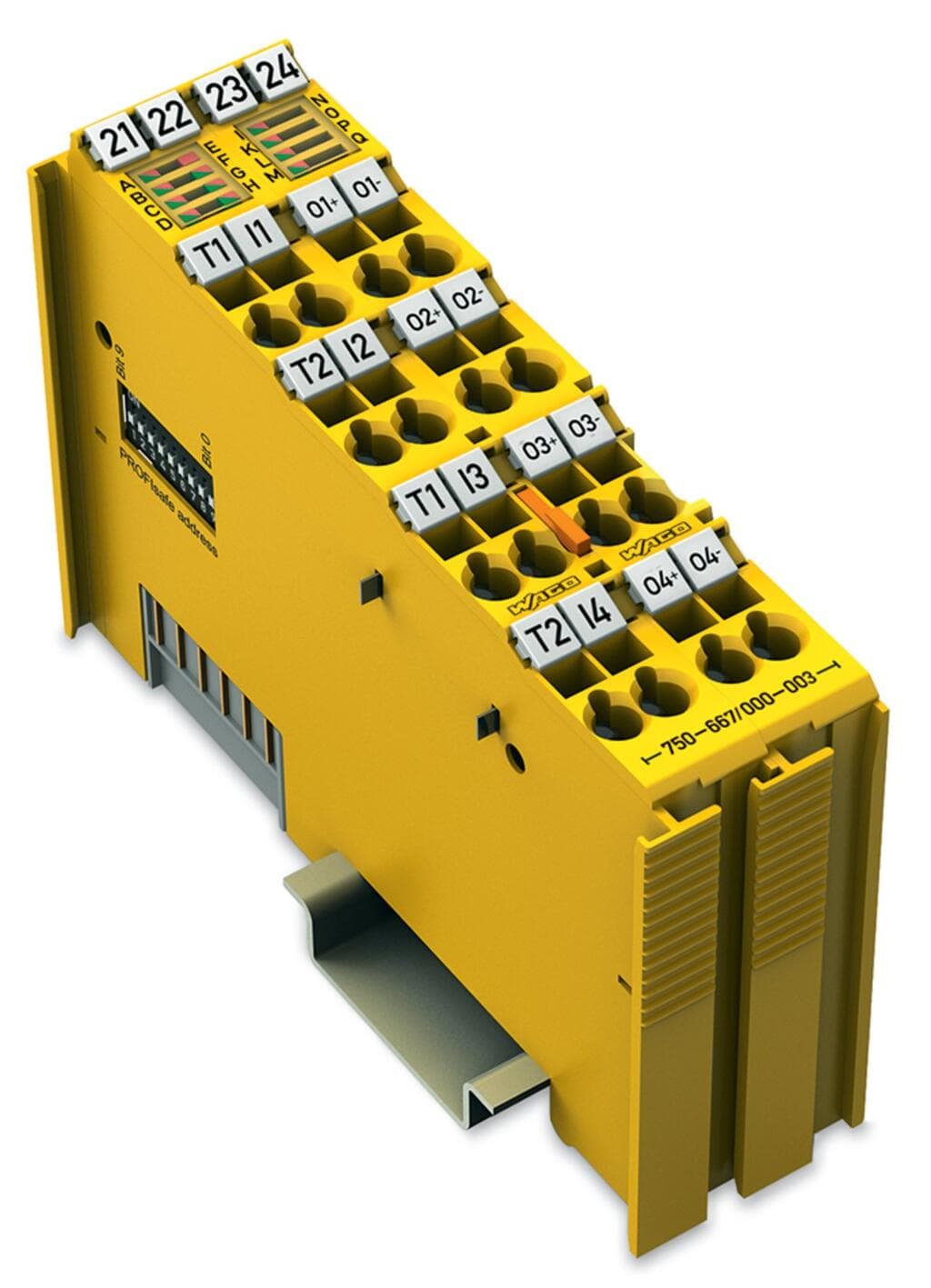

750-667/000-003
Selling Points
- 1Fail-Safe Design: Ensures safe operation with clock-sensitive inputs and power outputs.
- 2High Reliability: Supports PROFIsafe V2.0 iPar protocol for robust communication.
- 3Versatile Connectivity: Compatible with various sensors and actuators, including light barriers and PLC outputs.
- 4Powerful Outputs: Switches both DC13 resistive and inductive loads up to 2A without external circuits.
- 5Configurable Parameters: Easily set via WAGO-I/O-CHECK for customized safety settings and monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protocols | PROFIsafe V2 | Configuration options | PROFIsafe address adjustable via DIP switch or engineering software |
Indicators | LED (A-D) green/red: Status/Error I1 … I4; LED (I-M) green/red: Status/error O1 … O4; LED (E) red: Group error; LED (F-H) green/red: Diagnostics | Number of Channels | 8 |
Pluggable connector | fixed | Number of digital inputs | 4 |
Signal type | Voltage | Signal type (voltage) | 24 VDC |
Sensor connection | 4 x (Fail-safe input with test pulse) | Input characteristic | Clock sensitive |
Input current per channel for signal (1) typ. | 2.2mA | Signal frequency (max.) | 50Hz |
Output current per channel | 2A | Number of digital outputs | 4 |
Output current | short-circuit-protected | Output current (module) | 8A |
Actuator connection | 4 x (fail-safe output with test pulse) | Output circuit design | Power outputs |
Switching frequency (max.) | 50 Hz; Resistive load | Switching frequency (max.) (2) | 0.1 Hz; Inductive load |
Capacitive load for each channel | O1 … O4; 2.2 μF | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 180mA | Supply voltage (field) | 24 VDC, SELV/PELV (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Current consumption, field supply (module with no external load) | 20mA | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Isolation | 500 V system/field | Achievable safety classes | SIL 3; Category 4, PL e |
Safety standards | IEC 61508-1 … -7; EN ISO 13849-1; EN 62061 | Test pulse duration (max.) | 500ms |
Test pulse duration (min.) | 0ms | Connection technology: inputs / outputs | 16 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 24 mm / 0.945 inches | Height | 100 mm / 3.937 inches |
Depth | 67.8 mm / 2.669 inches | Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mounting type | DIN-35 rail | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | Customs tariff number | 8538901000 |
End of Sale | 2023-06-30 | End of Production | 2023-12-31 |
End of Delivery | 2024-03-01 | End of Service and Repair | 2026-03-01 |
Specifications may be subject to change without notice
