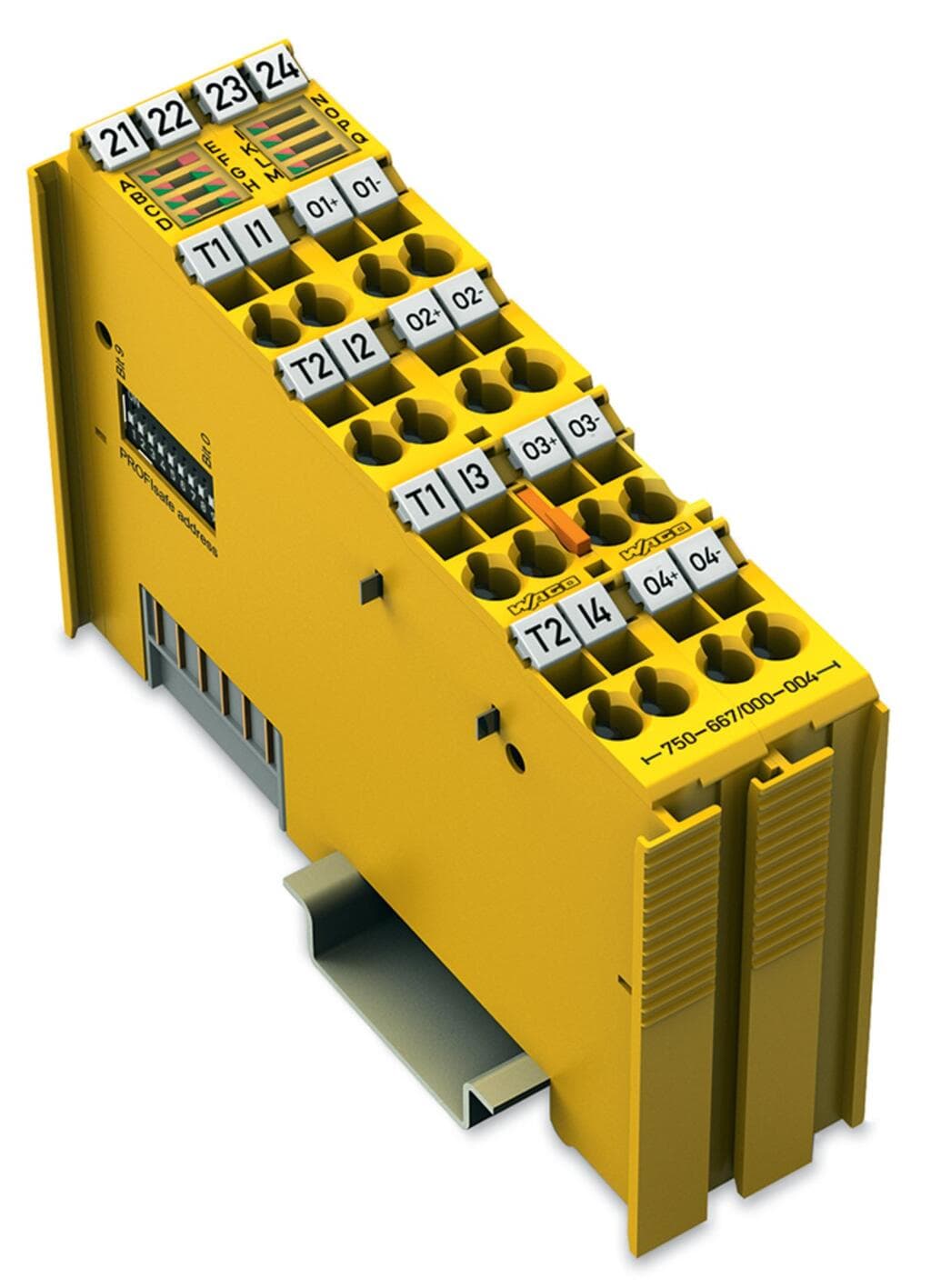

Product Model
750-667/000-004
Selling Points
- 1Fail-Safe Design: Ensures safety in critical applications by providing fail-safe digital inputs and outputs.
- 2High Safety Standards: Meets SIL3/Cat4/Ple or SIL2/Cat2/Pld safety standards for reliable operation.
- 324Vdc, 2A Per Channel: Handles 24Vdc and 2A per channel, suitable for various industrial applications.
- 4PROFIsafe Communication: Supports PROFIsafe communication for seamless integration into control networks.
- 5Durable Construction: Built with spring CAGE CLAMP connections for secure wiring and mounted on a DIN-35 rail.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protocols | PROFIsafe V2.6 (PROFINET) and V2.4 (PROFIBUS, PROFINET) | Configuration options | PROFIsafe address adjustable via DIP switch or engineering software |
Indicators | LED (A-D) green/red: Status/Error I1 … I4; LED (I-M) green/red: Status/error O1 … O4; LED (E) red: Group error; LED (F-H) green/red: Diagnostics | Number of Channels | 8 |
Pluggable connector | fixed | Number of digital inputs | 4 |
Signal type | Voltage | Signal type (voltage) | 24 VDC |
Sensor connection | 4 x (Fail-safe input with test pulse) | Input characteristic | Type 1 per IEC 61131 |
Input current per channel for signal (1) typ. | 3mA | Signal frequency (max.) | 50Hz |
Output current per channel | 2A | Number of digital outputs | 4 |
Output current | short-circuit-protected | Output current (module) | 8A |
Actuator connection | 4 x (fail-safe output with test pulse) | Output circuit design | Power outputs |
Switching frequency (max.) | 50 Hz; Resistive load | Switching frequency (max.) (2) | 0.1 Hz; Inductive load |
Switching frequency (max.) (3) | 0.1 Hz; Capacitive load | Capacitive load for each channel | O1 … O4; 47 μ F |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 120mA |
Supply voltage (field) | 24 VDC, SELV/PELV (-25 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Current consumption, field supply (module with no external load) | 35mA |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Achievable safety classes | SIL 3; Category 4, PLe (two-channel); SIL 2; Category 2; PLd (one-channel) |
Safety standards | IEC 61508-1 … -7; EN ISO 13849-1; EN 62061 | Interface types according to ZVEI (inputs) | Drain; A, C0, C1, C2, C3 |
Interface types according to ZVEI (outputs) | Source; C0, C1, C2, C3, D0, D1, D2, D3 | Test pulse duration (max.) | 500ms |
Test pulse duration (min.) | 0ms | Connection technology: inputs / outputs | 16 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 24 mm / 0.945 inches | Height | 100 mm / 3.937 inches |
Depth | 67.8 mm / 2.669 inches | Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mounting type | DIN-35 rail | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
Specifications may be subject to change without notice
