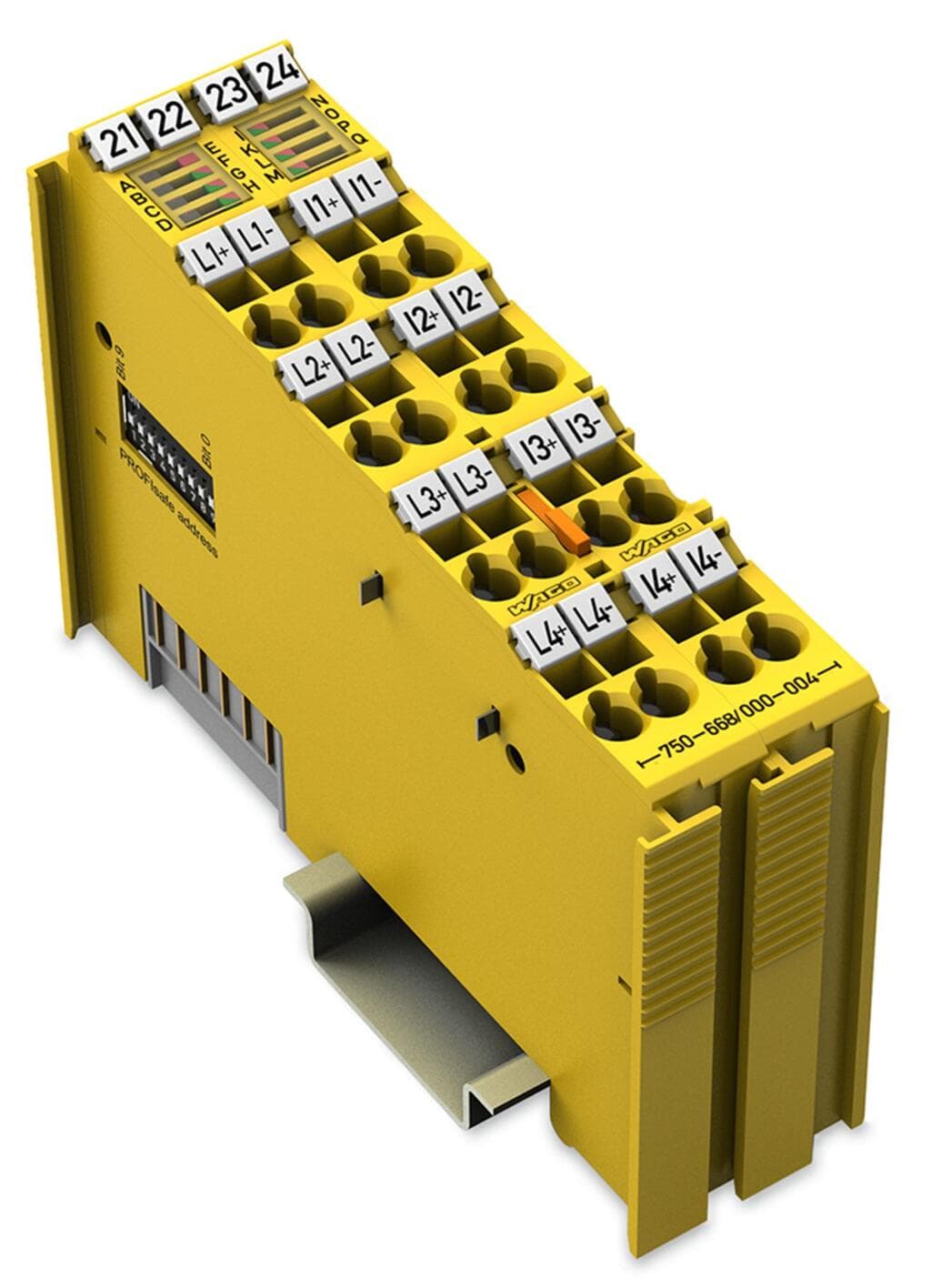

Product Model
750-668/000-004
Selling Points
- 1Ensures reliable operation in safety-critical applications.
- 2Supports 0-20mA and 4-20mA signals with 16-bit resolution.
- 3Enables secure and reliable communication in industrial environments.
- 4Built with polycarbonate and polyamide 6.6 housing, rated for IP20 protection.
- 5Meets IEC61508 standards and other international safety regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protocols | PROFIsafe V2.6 (PROFINET) and V2.4 (PROFIBUS, PROFINET) | Configuration options | PROFIsafe address adjustable via DIP switch or engineering software |
Indicators | LED (E) red, LED (F-H) red/green: Diagnostics; LED (I-M) red/green: Input/output status | Device-specific | Common mode rejection: typ. 87 dB; Sampling frequency: 100 Hz, 60 Hz, 50 Hz, 10 Hz; Configurable; Interference frequency suppression: 38 dB at 50 Hz/60 Hz; Safety accuracy: 1.25 % of upper-range value (single-channel); 1.58 % of upper-range value (two-channel) |
Number of Channels | 4 | Number of analog inputs | 4 |
Signal type | Current | Signal type (current) | 0 … 20 mA; 4 … 20 mA |
Sensor supply | Outputs L1 … L4 | Sensor connection | 4 x (2-wire, 3-wire, 4-wire) |
Signal characteristics | Differential | Resolution [bit] | 16bits |
Common-mode voltage (max.) | 60V | Load impedance | 300 Ω |
Measurement error, reference temperature | 25°C | Measurement error, deviation max (upper-range value) ≤± | 0.05% |
Output current per channel | 1.5A | Output current (module) | 1.5A |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 120mA |
Supply voltage (field) | 24 VDC, SELV/PELV (-15 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Current consumption, field supply (module with no external load) | 40mA |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Isolation | 500 V system/field |
Achievable safety classes | SIL 3; Category 4, PLe (two-channel); SIL 2; Category 2; PLd (one-channel) | Safety standards | IEC 61508-1 … -7; EN ISO 13849-1; EN 62061 |
Connection technology: inputs / outputs | 16 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 24 mm / 0.945 inches |
Height | 100 mm / 3.937 inches | Depth | 67.8 mm / 2.669 inches |
Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches | Mounting type | DIN-35 rail |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | Customs tariff number | 8538901000 |
Specifications may be subject to change without notice
