Product Model

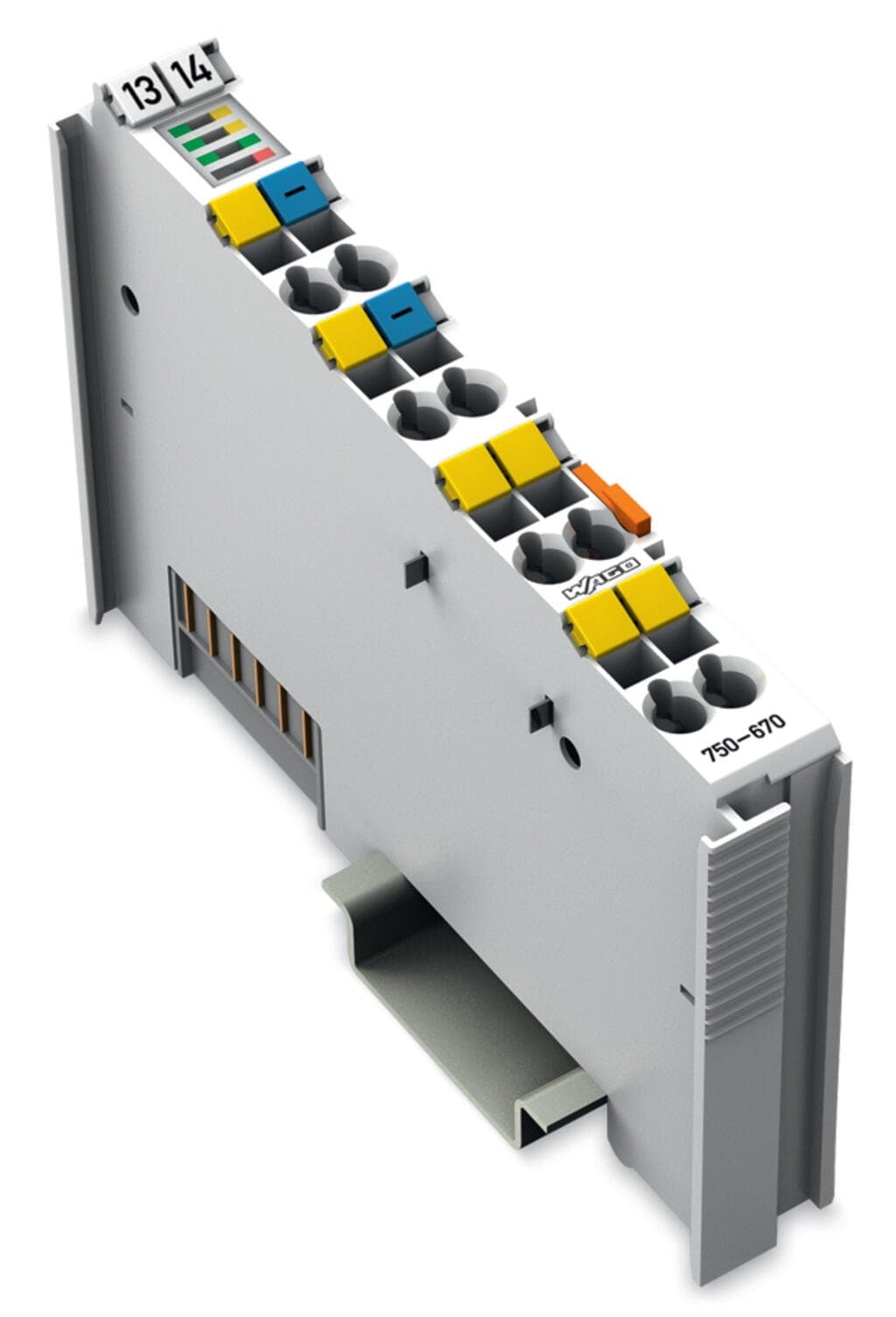

750-670
Selling Points
- 1High Precision Control: Achieve precise positioning with a resolution of 23 bits + sign bit.
- 2Versatile Interfaces: Supports RS-422 and 24 VDC interfaces for flexible connectivity.
- 3Robust Design: Built with polycarbonate and polyamide 6.6 for durability and vibration resistance.
- 4Configurable Inputs: Two configurable inputs for start/stop, limit switches, and reference cams.
- 5Wide Operating Range: Operates from 0 to 2000 meters altitude and up to 55°C ambient temperature.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device-specific | Operating modes: Individual positioning, reference run, jog, tip, command tables, PWM | Number of digital inputs | 2 |
Number of outputs | 1 channel (2 differential outputs?A1,?A2, B1, B2) | Input filter | 100 μs, software filter can be connected |
Input current (typ.) | 2.8 mA | Output current per channel | 0.03A |
Output current | short-circuit-protected | Load type | RS-422, TTL, optocoupler |
Voltage range for signal (0) | ?3 … +5?VDC | Voltage range for signal (1) | 15 … 30?VDC |
Signal voltage | 5?VDC (internal), 5 … 24 VDC (external) | Signal frequency (min.) | 0Hz |
Signal frequency (max.) | 500000Hz | Resolution | 15 bits + 16 bit prescaler |
Stepper resolution | 23 bits + sign bit | Duty cycle | 50 % (in stepper motor mode) |
Data width | 12-byte input/output | Functions | Absolute/relative positioning, setpoint change on the fly, rotary axis, etc. |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 98mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
Indicators | LED (A-C, G) green: Input 1, Input 2, Power Supply, Enable; LED (E, F) yellow: Run, Run Program Active; LED (H) red: Error | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.136MJ |
Weight | 49.9g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-3 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-05 |
eCl@ss 9.0 | 27-24-26-05 | ETIM 9.0 | EC001601 |
ETIM 8.0 | EC001601 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454539719 |
Customs tariff number | 8538901000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
