Product Model

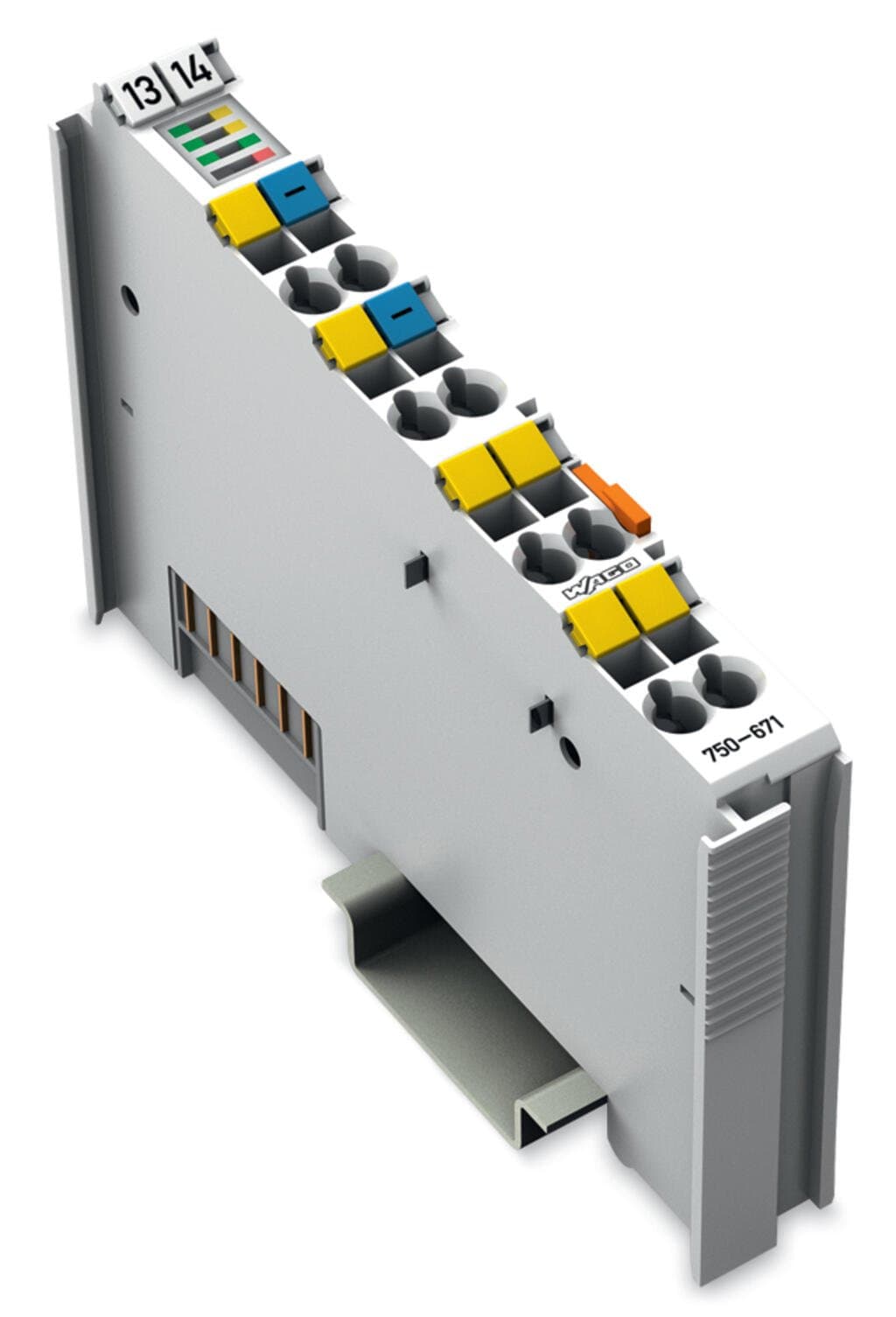

750-671
Selling Points
- 1Precision Motor Control: The WAGO 750-671 stepper controller provides precise control over stepper motors, ensuring accurate and reliable operation.
- 224V DC Power: Operates on 24V DC, making it suitable for a wide range of industrial applications.
- 3High Current Handling: Delivers 1.5 Amps of power, capable of handling demanding motor control tasks.
- 4Compact Design: Designed for space-efficient installations, ideal for modern automation systems.
- 5Versatile Connectivity: Supports various interfaces, including serial and other industrial protocols, for seamless integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device-specific | Operating modes: Individual positioning, reference run, jog, tip, command tables | Number of digital inputs | 2 |
Number of outputs | 1 stepper motor (2 phases/bipolar) | Input filter | 100 μs, software filter can be connected |
Input current (typ.) | 2.8 mA | Output current (max.) (motor) | Up to 2 x 1.5?A peak value; 1?A rms |
Voltage range for signal (0) | ?3 … +5?VDC | Voltage range for signal (1) | 15 … 30?VDC |
Resolution | 15 bits + 16 bit prescaler | Stepper resolution | 23 bits + sign bit |
Stepper frequency (full-step) max. | 7,812Hz | Microstepping | 64 steps |
Data width | 12-byte input/output | Functions | Absolute/relative positioning, setpoint change on the fly, rotary axis, etc. |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 85mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
Indicators | LED (A-C, G) green: Input 1, Input 2, Power Supply, Enable; LED (E, F) yellow: Run, Run Program Active; LED (H) red: Error | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.965MJ |
Weight | 51.8g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-3 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-05 |
eCl@ss 9.0 | 27-24-26-05 | ETIM 9.0 | EC001601 |
ETIM 8.0 | EC001601 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454853310 |
Customs tariff number | 8538901000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
