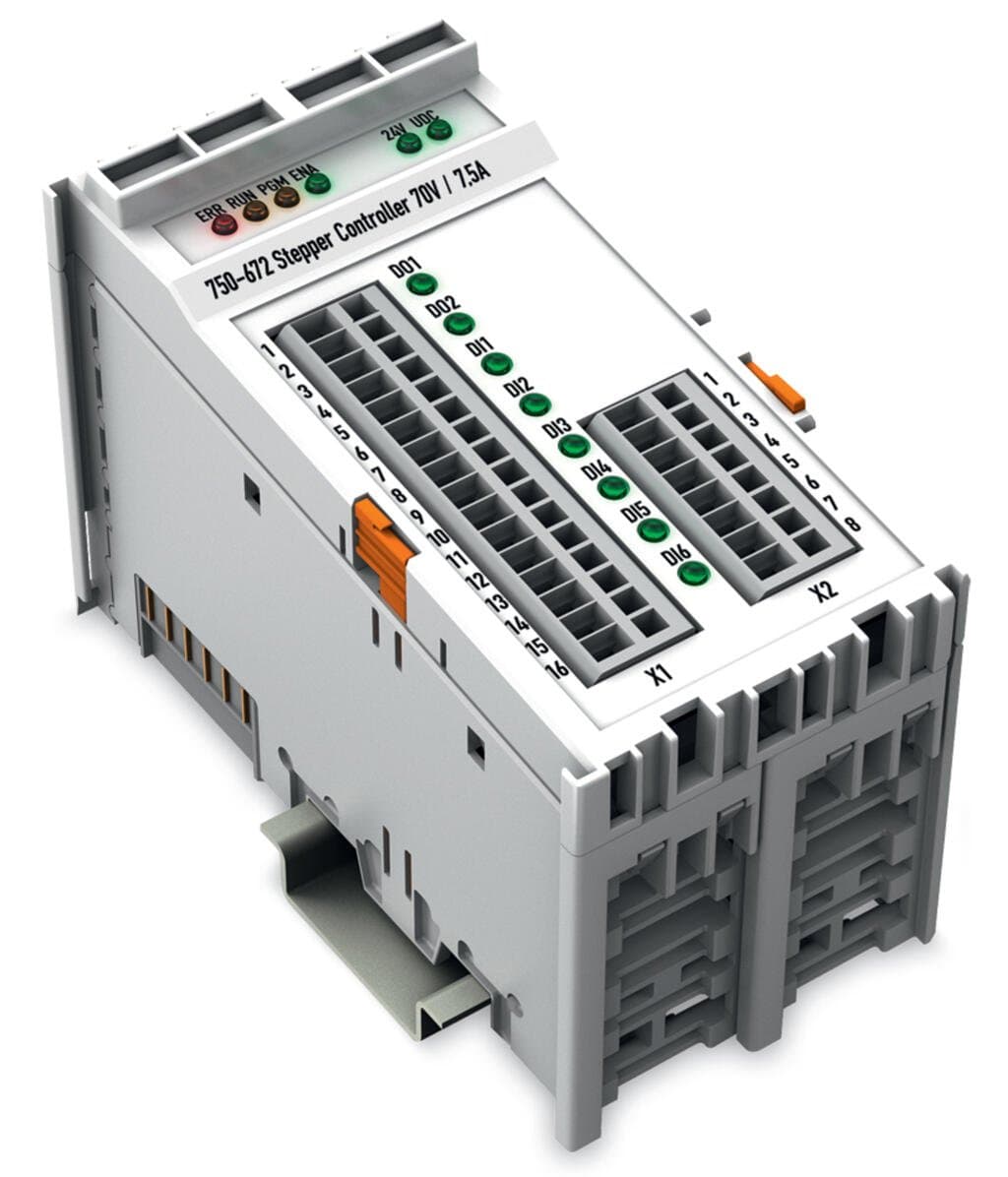

Product Model
750-672
Selling Points
- 1High precision stepper resolution of 23 bits + sign bit.
- 2Robust design with polycarbonate and polyamide 6.6 housing.
- 3IP20 protection rating for reliable operation in various environments.
- 4Supports both resistive and inductive loads up to 2 H.
- 5Easy mounting on DIN-35 rail with push-in spring cage-clamp connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device-specific | Inputs (preset): DI 1: Drive stop, DI 2: Reference input, DI 3: Jog switch in positive direction, DI 4: Jog switch in negative direction, DI 5: Limit switch in positive direction, DI 6: Limit switch in negative direction, Outputs (preset): DO 1: Target reached, DO 2: Error, Inputs and outputs can be freely reconfigured. | Number of digital outputs | 2 |
Input filter | 100 μs, software filter can be connected | Input current (typ.) | 2.8 mA |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Switching frequency (max.) | 5?Hz;?Inductive load per IEC 947-5-1, DC 13 | Load type | Resistive load, inductive load (max. 2?H), lamps |
Output current (max.) (motor) | 2 x 5.0?A (2 x 7.5?A transient) | Output voltage | Control voltage: 24 VDC (-25 % … +30 %); Closed current: 120 mA + 2 x 0.5 A (DO1, DO2, load-dependent);Motor voltage: 55 VDC nominal value; Absolute upper limit: 71.5 V; Absolute lower limit: 18 V; Closed current (typ.) = 5 mA; Protection via external fuse 5 A |
Voltage range for signal (0) | ?3 … +5?VDC | Voltage range for signal (1) | 15 … 30?VDC |
Diagnostics | Overcurrent, short circuit or ground fault, overtemperature, supply voltage monitoring, motor wire break | Resolution | 15 bits + 16 bit prescaler; 64 microsteps per full step |
Stepper resolution | 23 bits + sign bit | Stepper frequency (full-step) max. | 7,812Hz |
Data width | 12-byte input/output | Protection | Short circuit monitoring of motor connections:Winding short circuit and short circuit to 0 V and 24 V24 V supply:Reverse voltage protectionMotor supply:Reverse voltage protection via external fuse |
Functions | Positioning, sin2-shaped ramps, setpoint change on the fly, rotational speed control | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 70mA | Isolation | 500?V system/field |
Indicators | LED (A) red: Error; LED (B, C) yellow: Operation, Run Program Active; LED (D, E, F) green: Enable, Control Voltage, Motor Voltage | Connection technology: inputs / outputs | 24 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Connection requirement (permissible cable length) | 30m | Connection requirement (permissible cable type) | Motor connection: shielded |
Note (conductor cross-section) | 14 AWG: THHN, THWN | Width | 48?mm?/ 1.89?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 2.439MJ | Weight | 175g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-05 | eCl@ss 9.0 | 27-24-26-05 |
ETIM 9.0 | EC001601 | ETIM 8.0 | EC001601 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454763701 | Customs tariff number | 8537109160 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
