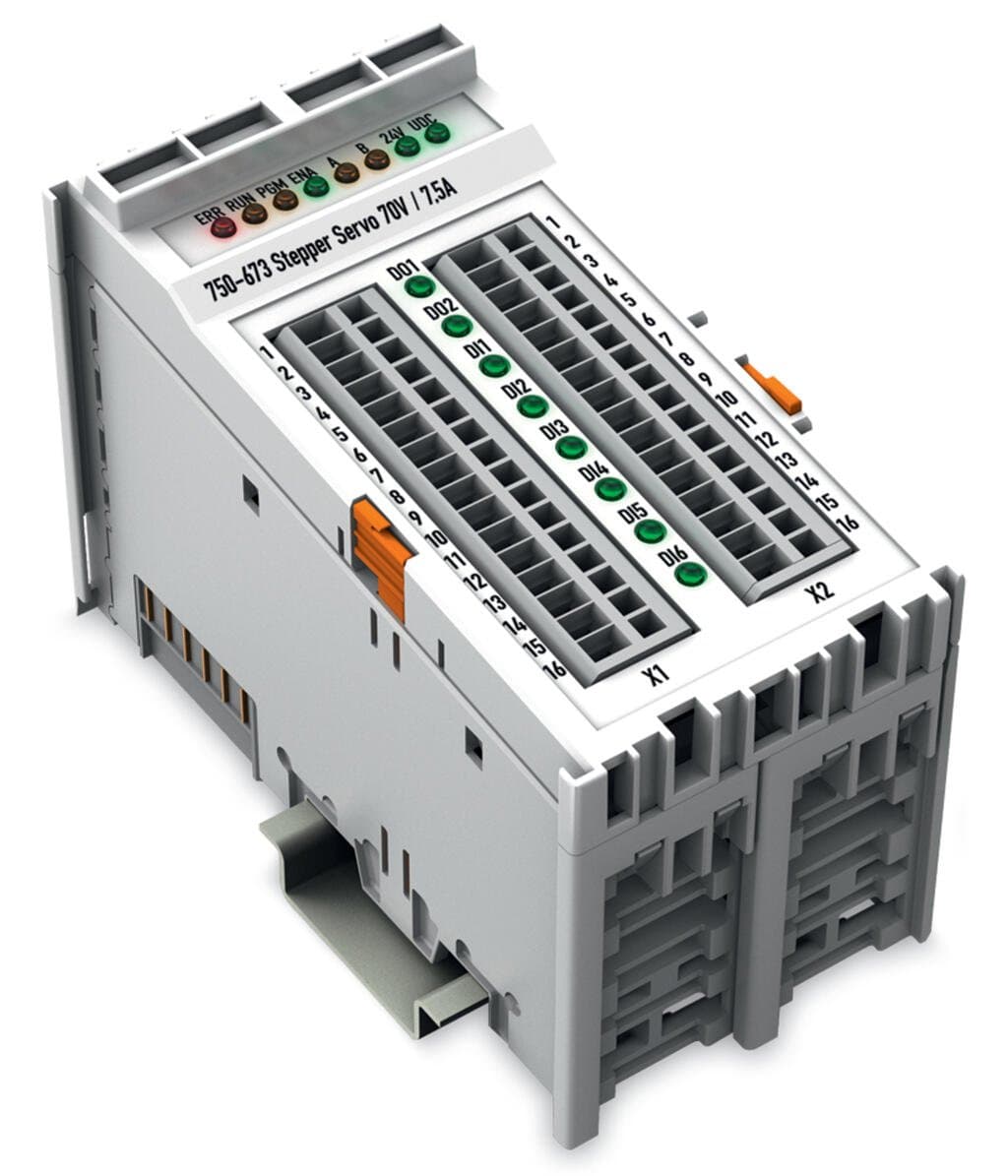

Product Model
750-673
Selling Points
- 1Features vector control and incremental encoder for efficient and dynamic rotation speed.
- 2Includes short-circuit monitoring, reverse voltage protection, and IP20 protection.
- 3Six configurable inputs and two outputs for various control functions.
- 4Offers 23 bits + sign bit resolution with 64 microsteps per full step.
- 5Constructed with polycarbonate and polyamide 6.6 housing, suitable for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device-specific | Inputs (preset): DI 1: Drive stop, DI 2: Reference input, DI 3: Jog switch in positive direction, DI 4: Jog switch in negative direction, DI 5: Limit switch in positive direction, DI 6: Limit switch in negative direction, Outputs (preset): DO 1: Target reached, DO 2: Error, Inputs and outputs can be freely reconfigured. | Number of digital outputs | 2 |
Counter depth | 32bits | Encoder connection | A, /A, B, /B, C, /C |
Encoder frequency | 1MHz | Sensor supply | 5?VDC, 300?mA, short-circuit-protected |
Quadrature decoder | 4x evaluation | Input filter | 100 μs, software filter can be connected |
Input current (typ.) | 2.8 mA | Output current per channel | 0.5A |
Output current | short-circuit-protected | Switching frequency (max.) | 5?Hz;?Inductive load per IEC 947-5-1, DC 13 |
Load type | Resistive load, inductive load (max. 2?H), lamps | Output current (max.) (motor) | 2 x 5.0?A (2 x 7.5?A transient) |
Output voltage | Control voltage: 24 VDC (-25 % … +30 %); Closed current: 120 mA + 2 x 0.5 A (DO1, DO2, load-dependent) + approx. 100 mA (encoder);Motor voltage: 55 VDC nominal value; Absolute upper limit: 71.5 V; Absolute lower limit: 18 V; Closed current (typ.) = 5 mA; Protection via external fuse 5 A | Voltage range for signal (0) | ?3 … +5?VDC |
Voltage range for signal (1) | 15 … 30?VDC | Signal voltage | Compatible with RS-485/-422, common GND with motor voltage and control voltage |
Diagnostics | Overcurrent, short circuit or ground fault, overtemperature, supply voltage monitoring, motor wire break, wrong rotational direction incremental encoder - motor | Resolution | 15 bits + 16 bit prescaler; 64 microsteps per full step |
Stepper resolution | 23 bits + sign bit | Stepper frequency (full-step) max. | 7,812Hz |
Data width | 12-byte input/output | Protection | Short circuit monitoring of motor connections:Winding short circuit and short circuit to 0 V and 24 V24 V supply:Reverse voltage protectionMotor supply:Reverse voltage protection via external fuse |
Terminating resistor | internal 120 Ω | Functions | Positioning, sin2-shaped ramps, setpoint change on the fly, torque control |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 70mA |
Isolation | 500?V system/field | Indicators | LED (A) red: Error; LED (B, C, E, F) yellow: Operation, Run Program Active, Info 1 Encoder, Info 2 Encoder; LED (D, G, H) green: Enable, Control Voltage, Motor Voltage |
Connection technology: inputs / outputs | 32 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Connection requirement (permissible cable length) | 30m |
Connection requirement (permissible cable type) | Motor connection: shielded | Note (conductor cross-section) | 14 AWG: THHN, THWN |
Width | 48?mm?/ 1.89?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 2.469MJ |
Weight | 183g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-3 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-05 |
eCl@ss 9.0 | 27-24-26-05 | ETIM 9.0 | EC001601 |
ETIM 8.0 | EC001601 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454957193 |
Customs tariff number | 8537109160 | RoHS Compliance Status | Compliant,No Exemption |
